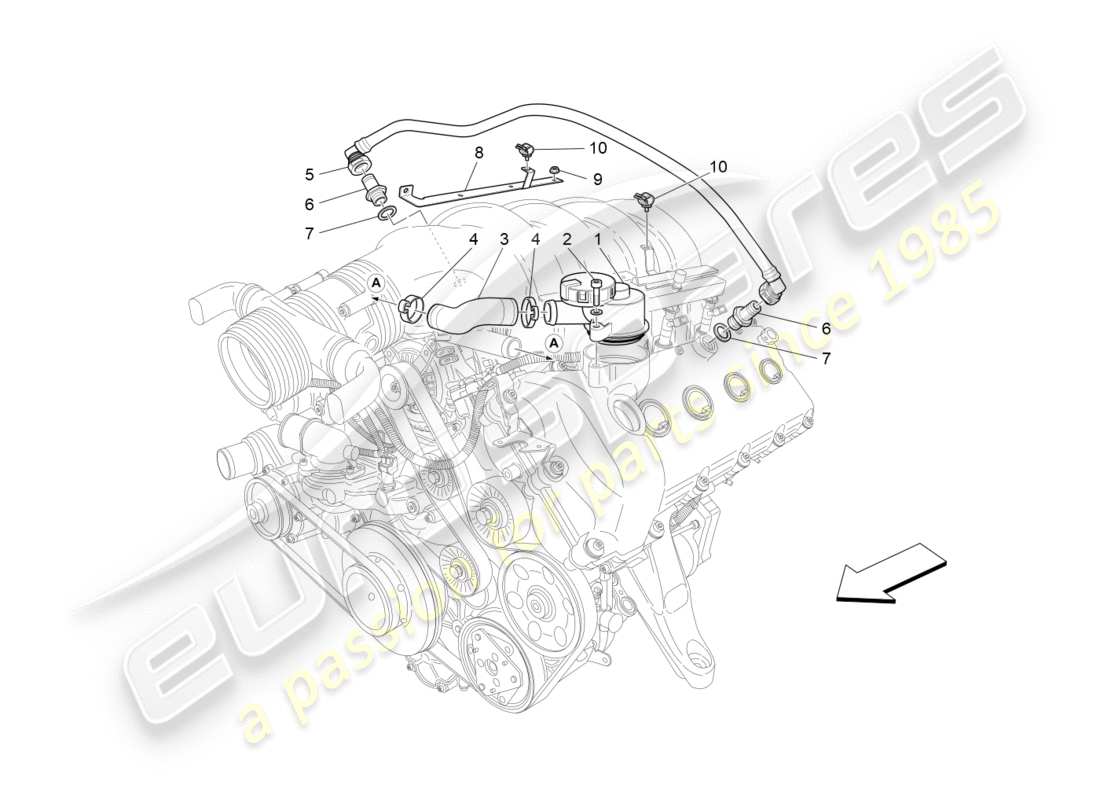

01.63.1 - oil vapour recirculation system

Maserati GranTurismo (2010) OIL VAPOUR RECIRCULATION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 219111
                  OIL DISAREATOR
                  from £217.38
                  from £217.38
                  # 002
                  MPN: 231621
                  SCREW [M6X30]
                  from £0.53
                  from £0.53
                  # 003
                  MPN: 224272
                  PIPE FROM DISAREATOR TO SUCTION MANIFOLD
                  from £9.51
                  from £9.51
                  # 004
                  MPN: 224271
                  CLAMP
                  from £0.86
                  from £0.86
                  # 005
                  MPN: 231466
                  HEAD CONNECTING VENT PIPE
                  Valid from assembly: 0 - 55703.
                  from £44.53
                  from £44.53
                  # 006
                  MPN: 229987
                  THREADED UNION
                  from £5.80
                  from £5.80
                  # 007
                  MPN: 10263460
                  GASKET
                  from £0.53
                  from £0.53
                  This part replaces part number 10261830
                  # 008
                  MPN: 230318
                  BRACKET
                  Valid from assembly: 0 - 55703. Valid from engine: 0 - 145105. (valid for: AUTOMATIC | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                  from £87.10
                  from £87.10
                  # 008
                  MPN: 230318
                  BRACKET
                  Valid from engine: 0 - 145105. (valid for: AUTOMATIC | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                  from £87.10
                  from £87.10
                  # 008
                  MPN: 240404
                  BRACKET
                  Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                  from £34.93
                  from £34.93
                  # 008
                  MPN: 240404
                  BRACKET
                  Valid from engine: 0 - 145105. (valid for: AUTOMATIC | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                  from £34.93
                  from £34.93
                  # 008
                  MPN: 241551
                  BRACKET
                  Valid from engine: 145106 - 165850. (valid for: AUTOMATIC | 4700 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                  from £18.09
                  from £18.09
                  # 008
                  MPN: 246604
                  BRACKET
                  Valid from engine: 145106. (valid for: AUTOMATIC | 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                  from £17.70
                  from £17.70
                  # 008
                  MPN: 256790
                  BRACKET
                  Valid from engine: 165851. (valid for: AUTOMATIC | 4700 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                  from £29.06
                  from £29.06
                  # 010
                  MPN: 222072
                  CLIP
                  from £1.91
                  from £1.91
