Valid from assembly: 0 - 91906.
03.11.1 - Main Shaft Gears

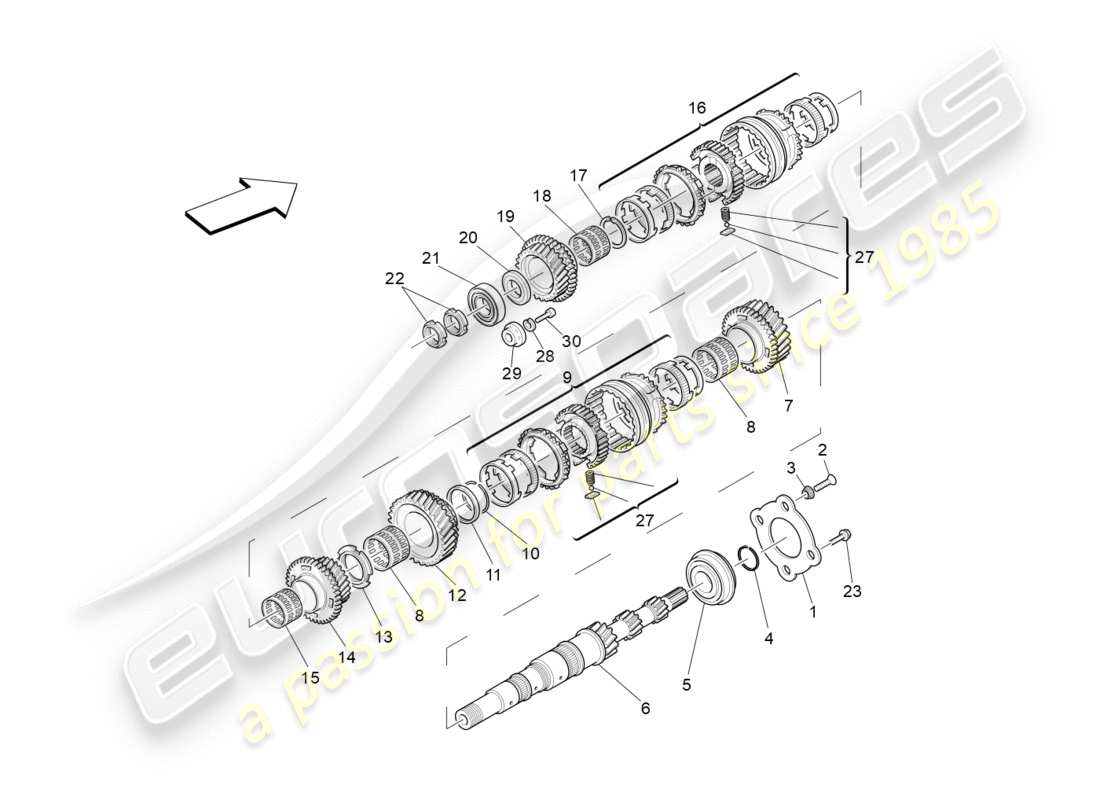

Maserati GranTurismo (2010) MAIN SHAFT GEARS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 200983
PLATE
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £26.67
from £26.67
# 002
MPN: 14442021
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
This part replaces part number 14442020
# 003
MPN: 12606979
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1.85
from £1.85
# 004
MPN: 184042
CIRCLIP
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £6.76
from £6.76
# 005
MPN: 198618
BALL BEARING
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £79.83
from £79.83
# 006
MPN: 220014
GEARBOX MAIN SHAFT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1,018.35
from £1,018.35
# 007
MPN: 214796
PINION FOR 5TH GEAR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £2,034.32
from £2,034.32
# 008
MPN: 184015
ROLLER CAGE
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £29.12
from £29.12
# 009
MPN: 185166
5TH AND 6TH GEAR COMPLETE SYNCHRONIZER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £795.01
from £795.01
# 010
MPN: 184011
CIRCLIP
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £5.58
from £5.58
# 011
MPN: 183970
SPACER FOR PINION FOR 6TH GEAR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £55.00
from £55.00
# 012
MPN: 214797
PINION FOR 6TH GEAR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £209.78
from £209.78
# 013
MPN: 184010
RING NUT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £95.67
from £95.67
# 014
MPN: 214794
PINION FOR 3RD GEAR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1,925.19
from £1,925.19
# 015
MPN: 184014
ROLLER CAGE
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £10.20
from £10.20
# 016
MPN: 185165
3RD AND 4TH GEAR COPLETE SYNCHRONIZER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £891.91
from £891.91
# 017
MPN: 184042
CIRCLIP
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £6.76
from £6.76
# 018
MPN: 184005
ROLLER CAGE
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £14.35
from £14.35
# 019
MPN: 214795
PINION FOR 4TH GEAR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1,839.39
from £1,839.39
# 020
MPN: 183973
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £26.23
from £26.23
# 021
MPN: 184021
ROLLER BEARING
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £80.27
from £80.27
# 022
MPN: 184012
RING NUT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £17.47
from £17.47
# 023
MPN: 16287124
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.82
from £0.82
This part replaces part number 16297921
# 027
MPN: 188320
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £6.75
from £6.75
# 028
MPN: 238108
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.54
from £0.54
# 029
MPN: 183985
BUSHING
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £7.68
from £7.68
# 030
MPN: 14305721
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1.47
from £1.47
