04.00.1 - brake servo system

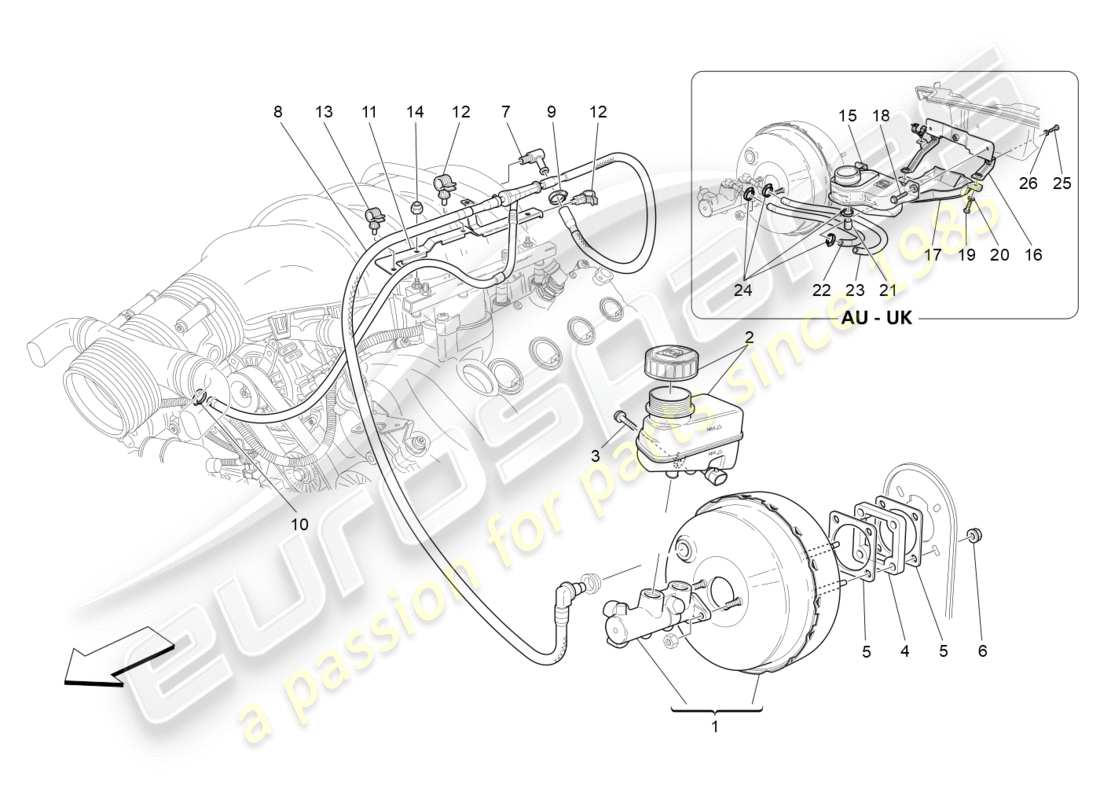

Maserati GranTurismo (2010) BRAKE SERVO SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 209079
POWER BRAKES ASSY
from £665.46
from £665.46
This part replaces part number 234424 - and 1 more. Click to view details
# 002
MPN: 234976
OIL BRAKEPAN
(valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £71.91
from £71.91
# 003
MPN: 16284914
SCREW
(valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £0.54
from £0.54
This part replaces part number 16284911
# 004
MPN: 190379
SPACER
from £9.59
from £9.59
# 005
MPN: 190378
GASKET
from £0.67
from £0.67
# 006
MPN: 12578211
NUT [M8]
from £0.53
from £0.53
# 007
MPN: 124342
THREADED UNION
from £3.56
from £3.56
# 008
MPN: 234946
VACUUM PIPE ASSEMBLY
Valid from assembly: 0 - 70261. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
Supersession
Supersession
# 008
MPN: 259231
VACUUM PIPE ASSEMBLY
Valid from assembly: 0 - 70261. (valid for: AUTOMATIC | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
Supersession
Supersession
# 008
MPN: 293280
VACUUM PIPE ASSEMBLY
(valid for: AUTOMATIC | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £92.23
from £92.23
This part replaces part number 259232 - and 1 more. Click to view details
# 008
MPN: 293281
VACUUM PIPE ASSEMBLY
Valid from assembly: 0 - 55703. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £87.24
from £87.24
This part replaces part number 227254
# 008
MPN: 293281
VACUUM PIPE ASSEMBLY
Valid from assembly: 0 - 70261. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £87.24
from £87.24
This part replaces part number 227254
# 009
MPN: 13432070
COLLAR
from £0.53
from £0.53
This part replaces part number 13434670
# 010
MPN: 13432270
SCREW COLLAR
from £0.59
from £0.59
# 011
MPN: 232640
LH BRACKET
Valid from assembly: 0 - 55703.
from £18.09
from £18.09
# 012
MPN: 198253
CLIP
from £2.07
from £2.07
# 013
MPN: 222072
CLIP
from £1.96
from £1.96
# 013
MPN: 247440
CLIP
from £0.54
from £0.54
This part replaces part number 191904
# 013
MPN: 67063200
CLIP
from £0.62
from £0.62
# 014
MPN: 14040715
NUT
from £1.08
from £1.08
# 015
MPN: 203903
OIL BRAKEPAN
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £14.44
from £14.44
# 016
MPN: 236269
BRACKET FOR FUEL SUPPORT
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £45.44
from £45.44
# 017
MPN: 236267
SHIELD
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £7.39
from £7.39
# 018
MPN: 10902124
SCREW
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.52
from £0.52
# 019
MPN: 10902424
SCREW
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.53
from £0.53
# 020
MPN: 12639724
WASHER [D.6.15-11X1]
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.54
from £0.54
# 021
MPN: 136379
PLUG
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
Supersession
Supersession
# 021
MPN: 248008
PLUG
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £4.63
from £4.63
This part replaces part number 136379
# 022
MPN: 234957
PIPE FOR FEED FRONT PUMP
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £7.25
from £7.25
# 023
MPN: 234958
PIPE FOR FEED REAR PUMP
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £7.52
from £7.52
# 024
MPN: 13000190
SCREW COLLAR
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.52
from £0.52
# 025
MPN: 10902124
SCREW
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.52
from £0.52
# 026
MPN: 12639724
WASHER [D.6.15-11X1]
(valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.53
from £0.53
