maserati granturismo (2010) complete steering rack unit parts diagram

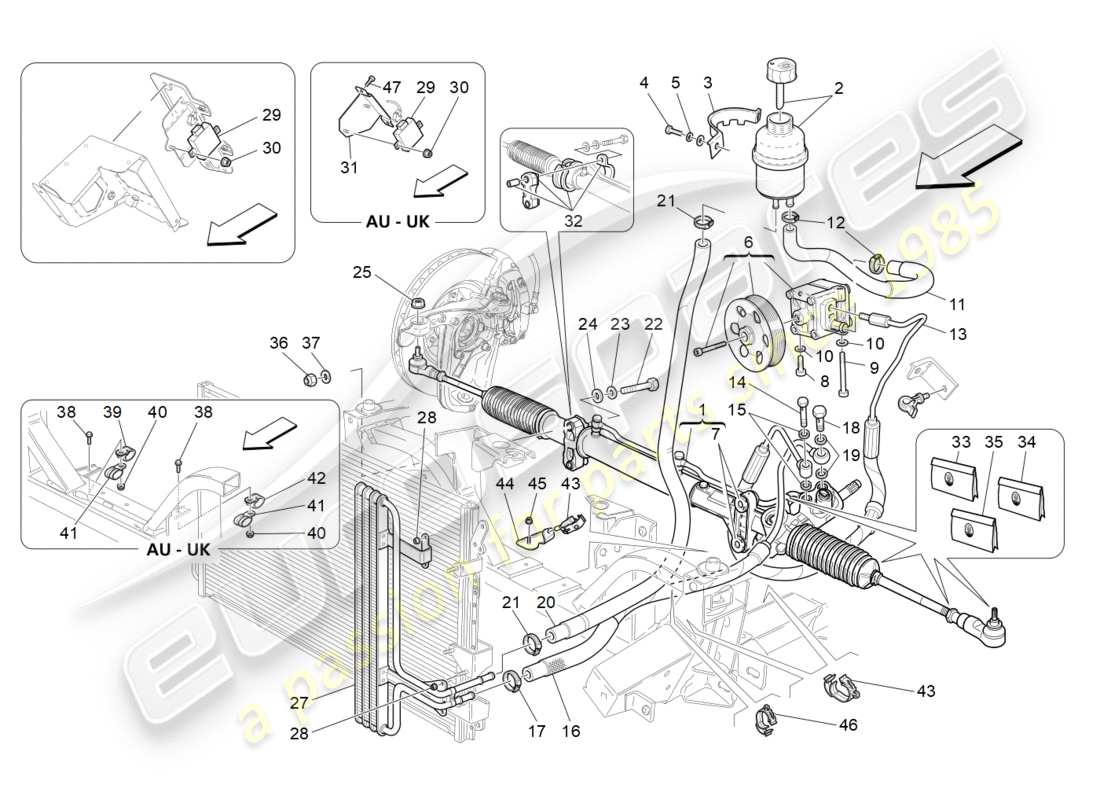

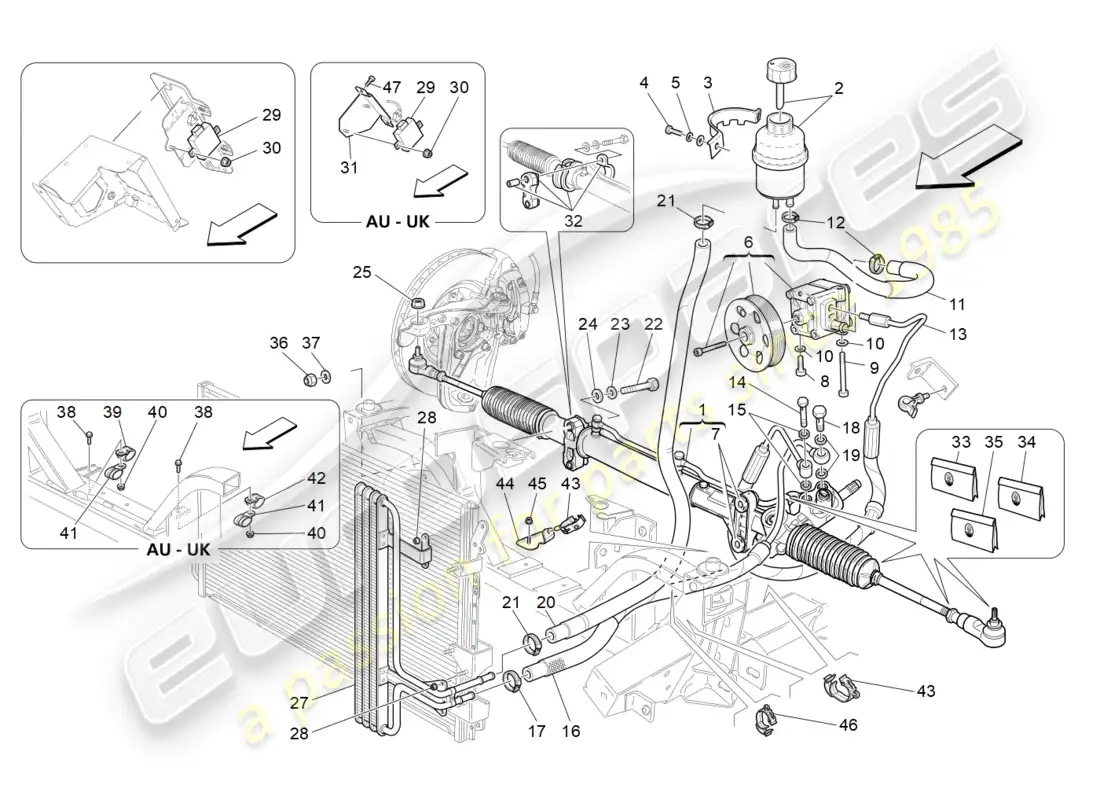

05.10.1 - complete steering rack unit

Maserati GranTurismo (2010) COMPLETE STEERING RACK UNIT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 267186
                                                        Steering Rack
                                                        (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 249107
                                                        # 001
                                                        MPN: 267187
                                                        Steering Rack
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £1,788.70
                                                        from £1,788.70
                                                        This part replaces part number 249108 - and 1 more. Click to view details
                                                        # 002
                                                        MPN: 270104
                                                        OIL TANK FOR HYDRAULIC POWER STEERING
                                                        from £29.91
                                                        from £29.91
                                                        This part replaces part number 185820 which we have in stock
                                                        # 003
                                                        MPN: 224325
                                                        COLLAR
                                                        from £6.81
                                                        from £6.81
                                                        # 004
                                                        MPN: 10902424
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        # 005
                                                        MPN: 12644424
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 13550214
                                                        # 006
                                                        MPN: 980145382
                                                        HYDRAULIC PUMP KIT #CONSULT THE BULLETIN PPD 09/2011 09/11/2011#
                                                        Valid from assembly: 0 - 57975. (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £497.59
                                                        from £497.59
                                                        # 006
                                                        MPN: 980145383
                                                        HYDRAULIC PUMP KIT
                                                        Valid from assembly: 0 - 57975. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        Supersession
                                                        Supersession
                                                        # 006
                                                        MPN: 980145407
                                                        HYDRAULIC PUMP KIT #CONSULT THE BULLETIN PPD 09/2011 09/11/2011#
                                                        Valid from assembly: 0 - 57975. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £492.32
                                                        from £492.32
                                                        This part replaces part number 980145383
                                                        # 007
                                                        MPN: 980138228
                                                        STEERING RACK SILENTBLOCK
                                                        from £13.52
                                                        from £13.52
                                                        # 009
                                                        MPN: 180604
                                                        SCREW
                                                        from £2.13
                                                        from £2.13
                                                        # 010
                                                        MPN: 11193874
                                                        WASHER [D.8.4-16X1.4]
                                                        from £0.54
                                                        from £0.54
                                                        # 011
                                                        MPN: 210128
                                                        PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP
                                                        from £16.08
                                                        from £16.08
                                                        # 012
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 013
                                                        MPN: 210379
                                                        PIPE FROM PUMP TO STEERING RACK #CONSULT THE BULLETIN PPD 09/2011 09/11/2011#
                                                        Valid from assembly: 30194 - 57975. (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £65.10
                                                        from £65.10
                                                        # 013
                                                        MPN: 227560
                                                        PIPE FROM PUMP TO STEERING RACK #CONSULT THE BULLETIN PPD 09/2011 09/11/2011#
                                                        Valid from assembly: 30194 - 57975. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £86.95
                                                        from £86.95
                                                        This part replaces part number 205784
                                                        # 014
                                                        MPN: 205821
                                                        UNION
                                                        from £8.73
                                                        from £8.73
                                                        # 014
                                                        MPN: 250145
                                                        UNION
                                                        from £8.73
                                                        from £8.73
                                                        # 015
                                                        MPN: 10261360
                                                        GASKET
                                                        from £0.53
                                                        from £0.53
                                                        # 016
                                                        MPN: 212179
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £56.66
                                                        from £56.66
                                                        This part replaces part number 210381 which we have in stock - and 3 more. Click to view details
                                                        # 016
                                                        MPN: 224000
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £75.80
                                                        from £75.80
                                                        # 016
                                                        MPN: 238888
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        (valid for: 4700 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £57.98
                                                        from £57.98
                                                        # 016
                                                        MPN: 241803
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        (valid for: 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £103.86
                                                        from £103.86
                                                        # 017
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 018
                                                        MPN: 188930
                                                        UNION
                                                        from £8.42
                                                        from £8.42
                                                        # 018
                                                        MPN: 250144
                                                        UNION
                                                        from £8.42
                                                        from £8.42
                                                        # 019
                                                        MPN: 10280060
                                                        GASKET
                                                        from £0.53
                                                        from £0.53
                                                        # 020
                                                        MPN: 224662
                                                        PIPE FROM EXCHANGER TO TANK
                                                        Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
                                                        from £13.87
                                                        from £13.87
                                                        # 020
                                                        MPN: 238886
                                                        PIPE FROM EXCHANGER TO TANK
                                                        (valid for: 4700 cc)
                                                        from £16.74
                                                        from £16.74
                                                        # 021
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 022
                                                        MPN: 16237274
                                                        SCREW
                                                        Valid from assembly: 52553.
                                                        from £2.47
                                                        from £2.47
                                                        # 022
                                                        MPN: 16237274
                                                        SCREW #VALID FOR CARS WITH FRONT FRAME ASSEMBLY 261715#
                                                        Valid from assembly: 0 - 52552.
                                                        from £2.47
                                                        from £2.47
                                                        # 022
                                                        MPN: 206926
                                                        SCREW #NOT FOR CARS WITH FRONT FRAME ASSEMBLY 261715#
                                                        Valid from assembly: 0 - 52552.
                                                        from £5.49
                                                        from £5.49
                                                        # 023
                                                        MPN: 12641024
                                                        WASHER
                                                        from £1.40
                                                        from £1.40
                                                        # 024
                                                        MPN: 12641024
                                                        WASHER
                                                        from £1.40
                                                        from £1.40
                                                        # 025
                                                        MPN: 299496
                                                        NUT
                                                        from £1.31
                                                        from £1.31
                                                        # 027
                                                        MPN: 236099
                                                        COMPLETE POWER STEERING EXCHANGER
                                                        from £76.65
                                                        from £76.65
                                                        # 028
                                                        MPN: 102741
                                                        NUT
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 12575421
                                                        # 029
                                                        MPN: 237283
                                                        POWER STEERING CONTROL UNIT
                                                        from £85.10
                                                        from £85.10
                                                        # 030
                                                        MPN: 14059111
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 031
                                                        MPN: 67720200
                                                        CONTROL UNIT SUPPORT BRACKET
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £5.53
                                                        from £5.53
                                                        # 032
                                                        MPN: 980138275
                                                        STEERING RACK FIXING KIT
                                                        from £117.39
                                                        from £117.39
                                                        # 033
                                                        MPN: 980139057
                                                        PIPES REPLACEMENT KIT FOR STEERING RACK
                                                        (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £241.62
                                                        from £241.62
                                                        # 033
                                                        MPN: 980139058
                                                        PIPES REPLACEMENT KIT FOR STEERING RACK
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £235.91
                                                        from £235.91
                                                        # 034
                                                        MPN: 980001706
                                                        COUPLING REPLACEMENT KIT FOR STEERING RACK
                                                        from £88.98
                                                        from £88.98
                                                        This part replaces part number 980000968
                                                        # 035
                                                        MPN: 980139056
                                                        BOOTS REPLACEMENT KIT FOR STEERING RACK
                                                        from £68.71
                                                        from £68.71
                                                        # 036
                                                        MPN: 256775
                                                        NUT
                                                        Valid from assembly: 52553.
                                                        from £1.31
                                                        from £1.31
                                                        # 036
                                                        MPN: 256775
                                                        NUT #VALID FOR CARS WITH FRONT FRAME ASSEMBLY 261715#
                                                        Valid from assembly: 0 - 52552.
                                                        from £1.31
                                                        from £1.31
                                                        # 037
                                                        MPN: 12626224
                                                        WASHER
                                                        Valid from assembly: 52553.
                                                        from £0.53
                                                        from £0.53
                                                        # 037
                                                        MPN: 12626224
                                                        WASHER #VALID FOR CARS WITH FRONT FRAME ASSEMBLY 261715#
                                                        Valid from assembly: 0 - 52552.
                                                        from £0.53
                                                        from £0.53
                                                        # 038
                                                        MPN: 10902424
                                                        SCREW
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £0.53
                                                        from £0.53
                                                        # 039
                                                        MPN: 277472
                                                        BRACKET WITH SHEATH
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £9.20
                                                        from £9.20
                                                        # 040
                                                        MPN: 13046114
                                                        NUT
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £0.53
                                                        from £0.53
                                                        # 041
                                                        MPN: 10441390
                                                        BRACKET WITH SHEATH
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £0.51
                                                        from £0.51
                                                        # 042
                                                        MPN: 10441990
                                                        BRACKET WITH SHEATH
                                                        (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                                        from £0.54
                                                        from £0.54
                                                        # 043
                                                        MPN: 242248
                                                        CLIP
                                                        (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £1.93
                                                        from £1.93
                                                        This part replaces part number 198394
                                                        # 044
                                                        MPN: 277525
                                                        BRACKET
                                                        (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £11.59
                                                        from £11.59
                                                        # 045
                                                        MPN: 14040614
                                                        NUT
                                                        (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £0.54
                                                        from £0.54
                                                        # 046
                                                        MPN: 14631487
                                                        CLIP
                                                        (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                                        from £1.08
                                                        from £1.08
                                                        # 047
                                                        MPN: 11620724
                                                        SCREW [TE M5X18]
                                                        from £0.53
                                                        from £0.53
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
