maserati granturismo (2010) front suspension parts diagram

06.10.1 - Front Suspension

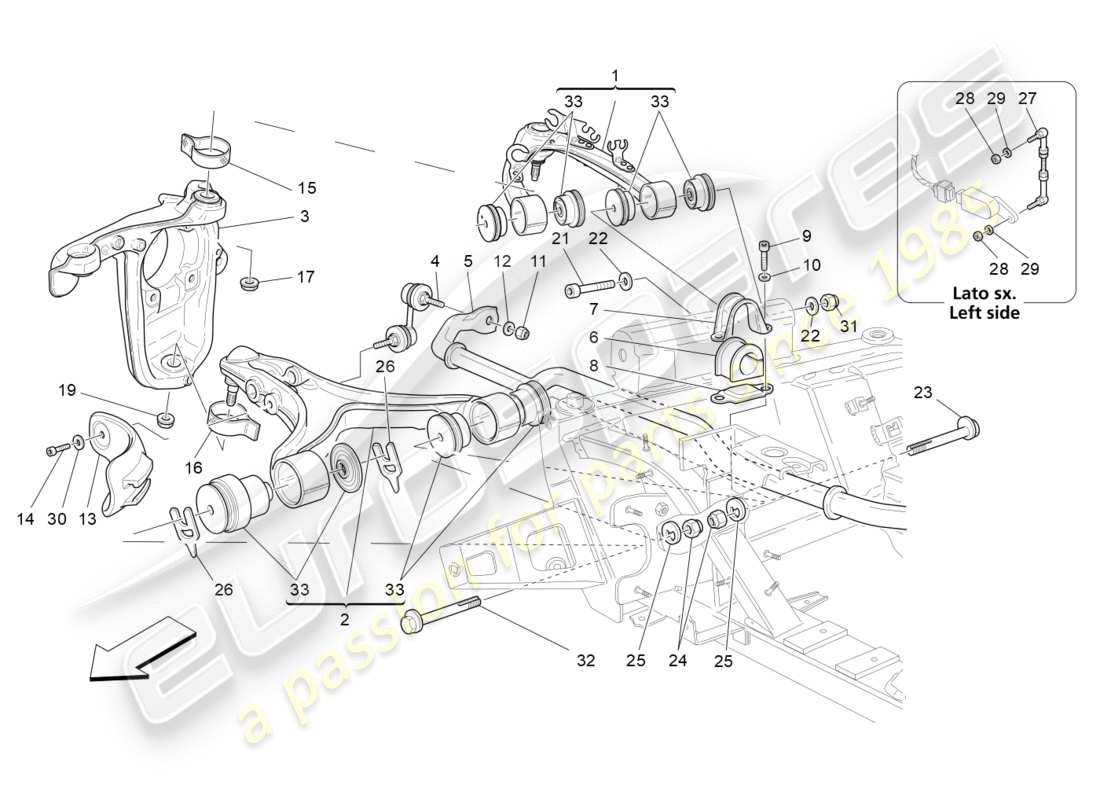

Maserati GranTurismo (2010) FRONT SUSPENSION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 000
                                                  MPN: 980139893
                                                  RH FRONT SUSPENSION KIT
                                                  Valid from assembly: 43929.
                                                  from £939.98
                                                  from £939.98
                                                  This part replaces part number 900027749
                                                  # 000
                                                  MPN: 980139894
                                                  LH FRONT SUSPENSION KIT
                                                  Valid from assembly: 43929.
                                                  from £939.98
                                                  from £939.98
                                                  This part replaces part number 900027750
                                                  # 001
                                                  -
                                                  LH FRONT UPPER LEVER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                  # 001
                                                  -
                                                  RH FRONT UPPER LEVER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                  # 002
                                                  -
                                                  LH FRONT LOWER LEVER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                  # 002
                                                  -
                                                  RH FRONT LOWER LEVER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                  # 003
                                                  -
                                                  COMPLETE LH FRONT HUB HOLDER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                  # 003
                                                  -
                                                  COMPLETE RH FRONT HUB HOLDER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                  # 004
                                                  MPN: 259572
                                                  BALL TIE ROD #RH SIDE#
                                                  from £51.19
                                                  from £51.19
                                                  This part replaces part number 162619
                                                  # 004
                                                  MPN: 259573
                                                  BALL TIE ROD #LH SIDE#
                                                  from £47.03
                                                  from £47.03
                                                  This part replaces part number 162620
                                                  # 005
                                                  MPN: 199126
                                                  STABILIZER BAR
                                                  Valid from assembly: 49658 - 91906. Suitable for cars with: MC Sport Line Version. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                                  from £74.07
                                                  from £74.07
                                                  # 005
                                                  MPN: 234647
                                                  STABILIZER BAR
                                                  from £79.83
                                                  from £79.83
                                                  # 006
                                                  MPN: 192737
                                                  BAR BUFFER
                                                  from £10.29
                                                  from £10.29
                                                  # 006
                                                  MPN: 199224
                                                  BAR BUFFER
                                                  Valid from assembly: 49658 - 91906. Suitable for cars with: MC Sport Line Version. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                                  from £10.29
                                                  from £10.29
                                                  # 007
                                                  MPN: 271290
                                                  UPPER SUPPORT
                                                  from £5.38
                                                  from £5.38
                                                  This part replaces part number 192773
                                                  # 008
                                                  MPN: 271288
                                                  LOWER SUPPORT
                                                  from £3.84
                                                  from £3.84
                                                  This part replaces part number 192772
                                                  # 009
                                                  MPN: 14307534
                                                  SCREW
                                                  from £1.46
                                                  from £1.46
                                                  # 010
                                                  MPN: 12604574
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 011
                                                  MPN: 102742
                                                  NUT
                                                  from £0.53
                                                  from £0.53
                                                  # 012
                                                  MPN: 12601474
                                                  WASHER [D.10,50-21X 1,0]
                                                  from £0.54
                                                  from £0.54
                                                  # 013
                                                  MPN: 239645
                                                  LH AIR FLOW FLAP
                                                  from £24.82
                                                  from £24.82
                                                  # 013
                                                  MPN: 239646
                                                  RH AIR FLOW FLAP
                                                  from £24.82
                                                  from £24.82
                                                  # 014
                                                  MPN: 255624
                                                  SCREW
                                                  Supersession
                                                  Supersession
                                                  # 014
                                                  MPN: 314290
                                                  SCREW
                                                  from £1.54
                                                  from £1.54
                                                  This part replaces part number 255624
                                                  # 015
                                                  MPN: 386600416
                                                  JOINT PROTECTION
                                                  from £3.60
                                                  from £3.60
                                                  # 016
                                                  MPN: 386600416
                                                  JOINT PROTECTION
                                                  from £3.60
                                                  from £3.60
                                                  # 017
                                                  MPN: 245240
                                                  NUT #VALID FOR CARS WITH SUSPENSIONS KIT 900027749/900027750 (POS.0)#
                                                  Valid from assembly: 34854.
                                                  from £4.01
                                                  from £4.01
                                                  # 019
                                                  MPN: 245240
                                                  NUT #VALID FOR CARS WITH SUSPENSIONS KIT 900027749/900027750 (POS.0)#
                                                  Valid from assembly: 43929.
                                                  from £4.01
                                                  from £4.01
                                                  # 019
                                                  MPN: 247308
                                                  NUT FOR SUSPENSION LEVER ADJUSTING #USE ONLY PRETIGHTENING#
                                                  from £7.43
                                                  from £7.43
                                                  # 021
                                                  MPN: 15977934
                                                  SCREW
                                                  from £5.64
                                                  from £5.64
                                                  # 022
                                                  MPN: 13550634
                                                  WASHER
                                                  from £2.30
                                                  from £2.30
                                                  # 023
                                                  MPN: 240876
                                                  SCREW #REAR FIXING - VALID ONLY FOR CARS WITH FRONT FRAME ASSEMBLY 980139618#
                                                  Valid from assembly: 34853 - 63505.
                                                  from £75.62
                                                  from £75.62
                                                  # 024
                                                  MPN: 203795
                                                  NUT
                                                  from £1.48
                                                  from £1.48
                                                  This part replaces part number 183417 - and 1 more. Click to view details
                                                  # 025
                                                  MPN: 240877
                                                  WASHER
                                                  Valid from assembly: 34854.
                                                  from £3.83
                                                  from £3.83
                                                  # 026
                                                  MPN: 198038
                                                  SPACER #THICKNESS MM. 0,50#
                                                  from £3.14
                                                  from £3.14
                                                  # 026
                                                  MPN: 198039
                                                  SPACER #THICKNESS MM. 0,75#
                                                  from £3.07
                                                  from £3.07
                                                  # 026
                                                  MPN: 198040
                                                  SPACER #THICKNESS MM. 1,00#
                                                  from £2.99
                                                  from £2.99
                                                  # 026
                                                  MPN: 198041
                                                  SPACER #THICKNESS MM. 1,75#
                                                  from £2.45
                                                  from £2.45
                                                  # 026
                                                  MPN: 198042
                                                  SPACER #THICKNESS MM. 3,00#
                                                  from £3.29
                                                  from £3.29
                                                  # 026
                                                  MPN: 295191
                                                  SPACER #THICKNESS MM. 1,25#
                                                  from £2.45
                                                  from £2.45
                                                  # 027
                                                  MPN: 188629
                                                  TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
                                                  from £19.14
                                                  from £19.14
                                                  # 028
                                                  MPN: 102741
                                                  NUT
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12575421
                                                  # 029
                                                  MPN: 14498824
                                                  WASHER [D.6.4-16.3X1]
                                                  from £0.54
                                                  from £0.54
                                                  # 030
                                                  MPN: 12641024
                                                  WASHER
                                                  from £1.42
                                                  from £1.42
                                                  # 031
                                                  MPN: 203795
                                                  NUT
                                                  from £1.48
                                                  from £1.48
                                                  This part replaces part number 183417 - and 1 more. Click to view details
                                                  # 032
                                                  MPN: 240875
                                                  SCREW #FRONT FIXING - VALID ONLY FOR CARS WITH FRONT FRAME ASSEMBLY 980139618#
                                                  Valid from assembly: 34854 - 63505.
                                                  from £76.54
                                                  from £76.54
                                                  # 033
                                                  MPN: 980139889
                                                  FRONT SUSPENSION BUSHING KIT
                                                  from £162.75
                                                  from £162.75
                                                  This part replaces part number 273809
