06.12.1 - front underchassis

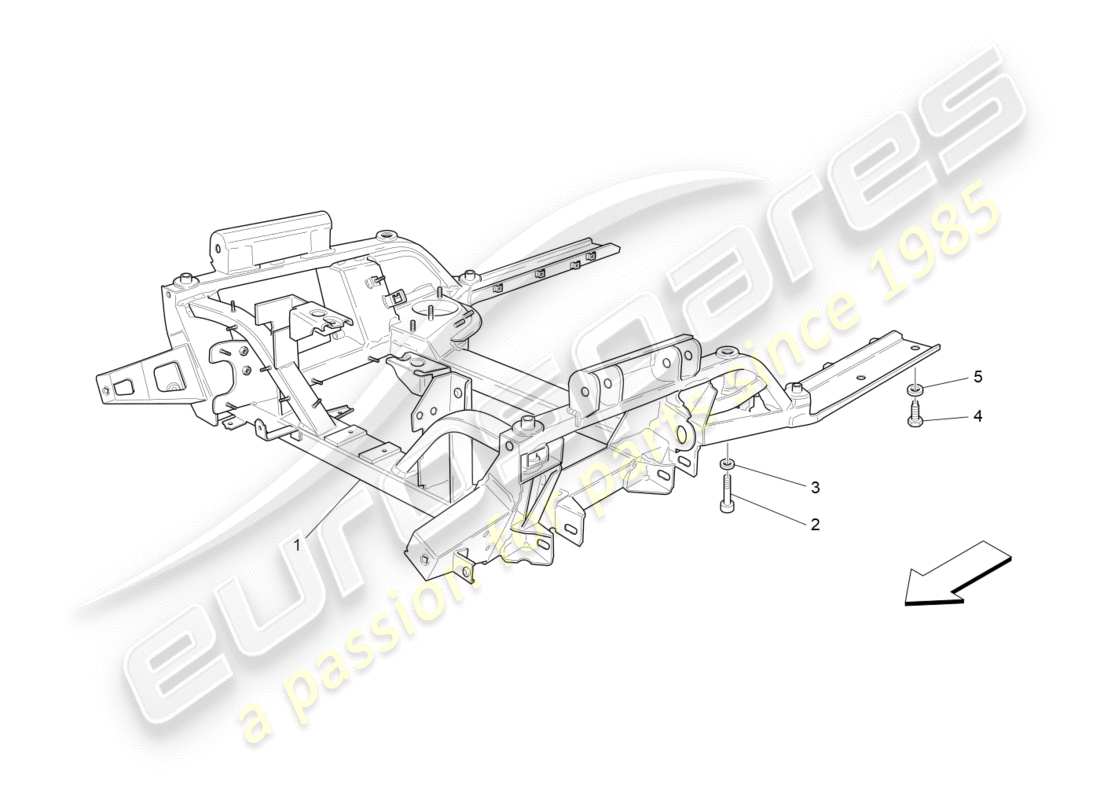

Maserati GranTurismo (2010) FRONT UNDERCHASSIS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 222730
FRONT SUSPENSION FRAME ASSEMBLY
Valid from assembly: 0 - 52552. (valid for: 4700 cc)
from £1,615.83
from £1,615.83
This part replaces part number 69533400
# 001
MPN: 261715
FRONT SUSPENSION FRAME ASSEMBLY
Valid from assembly: 52553 - 87853.
from £3,017.19
from £3,017.19
This part replaces part number 208590 - and 1 more. Click to view details
# 001
MPN: 261715
FRONT SUSPENSION FRAME ASSEMBLY
Valid from assembly: 52553.
from £3,017.19
from £3,017.19
This part replaces part number 208590 - and 1 more. Click to view details
# 001
MPN: 261715
FRONT SUSPENSION FRAME ASSEMBLY #REPLACE ALSO FIXING FOR STEERING RACK (COD.16237274 - 12641024 - 256775 - 12626224)#
Valid from assembly: 0 - 52552.
from £3,017.19
from £3,017.19
This part replaces part number 208590 - and 1 more. Click to view details
# 001
MPN: 261715
FRONT SUSPENSION FRAME ASSEMBLY #REPLACE ALSO FIXING FOR STEERING RACK (COD.16237274 - 12641024 - 256775 - 12626224)#
Valid from assembly: 34868 - 52552.
from £3,017.19
from £3,017.19
This part replaces part number 208590 - and 1 more. Click to view details
# 002
MPN: 239034
SCREW [TCE M 12X1.25X120 RIPASSANTE]
Valid from assembly: 34868.
from £7.12
from £7.12
# 002
MPN: 67998000
SCREW [TCE M 12X1.25X70 RIPASSANTE]
Valid from assembly: 34868.
from £6.65
from £6.65
# 003
MPN: 239032
WASHER
Valid from assembly: 34868.
from £3.16
from £3.16
# 003
MPN: 239033
WASHER
Valid from assembly: 34868.
from £3.16
from £3.16
# 004
MPN: 13217434
SCREW [M12X1,25X35]
from £4.88
from £4.88
# 005
MPN: 12646934
WASHER [D. 12.2 -28X 3]
from £1.39
from £1.39
