Valid from assembly: 0 - 91906. Applicable for markets: UK.
maserati granturismo (2010) alarm and immobilizer system parts diagram

08.53.2 - alarm and immobilizer system

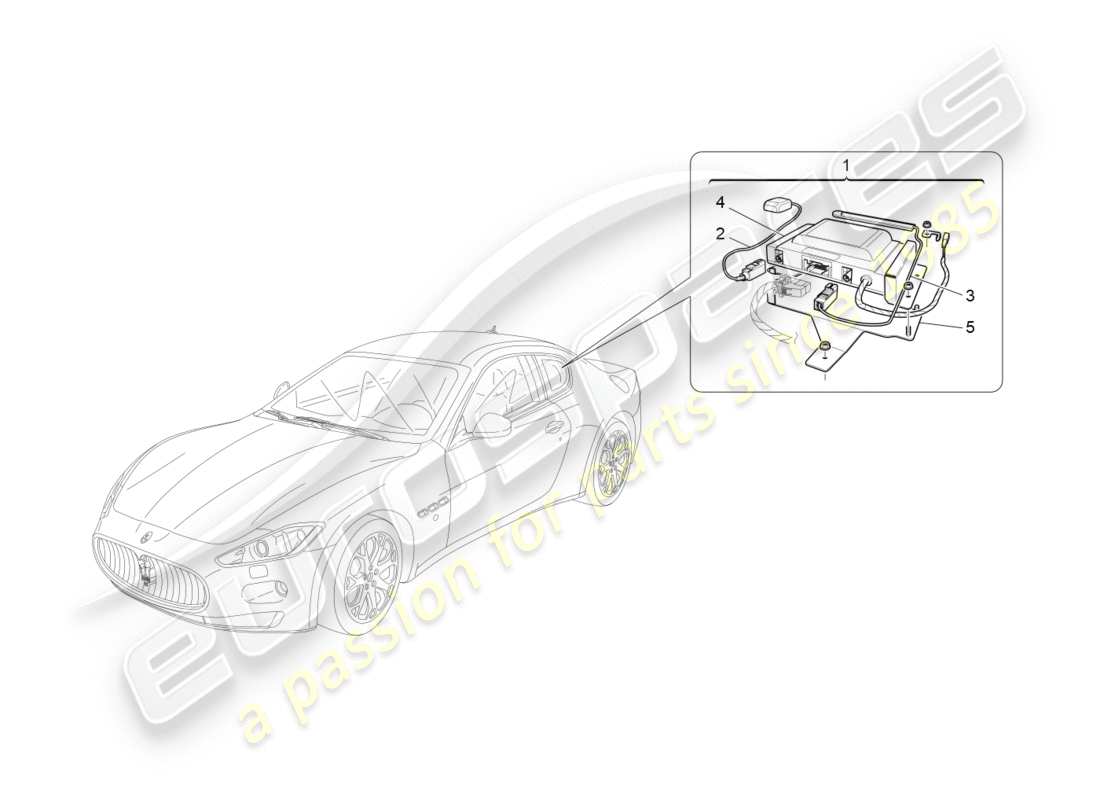

Maserati GranTurismo (2010) ALARM AND IMMOBILIZER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 265823
SATELLITE ALARM SYSTEM
(valid for: JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £789.04
from £789.04
This part replaces part number 188293 which we have in stock - and 1 more. Click to view details
# 001
MPN: 281454
SATELLITE ALARM SYSTEM
Valid from assembly: 0 - 77966. (valid for: JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,876.12
from £1,876.12
This part replaces part number 265823 which we have in stock
# 002
MPN: 226130
GPS ANTENNA
(valid for: JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £33.48
from £33.48
# 003
MPN: 226131
GSM ANTENNA
(valid for: JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £19.71
from £19.71
# 004
MPN: 265824
ADR ECU
(valid for: JAPAN (RH DRIVE),SOUTH AFRICA,UK)
This part replaces part number 235627
# 005
MPN: 239092
BRACKET
(valid for: JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £114.92
from £114.92
