08.61.1 - relays, fuses and boxes

Maserati GranTurismo (2010) RELAYS, FUSES AND BOXES Parts Diagram

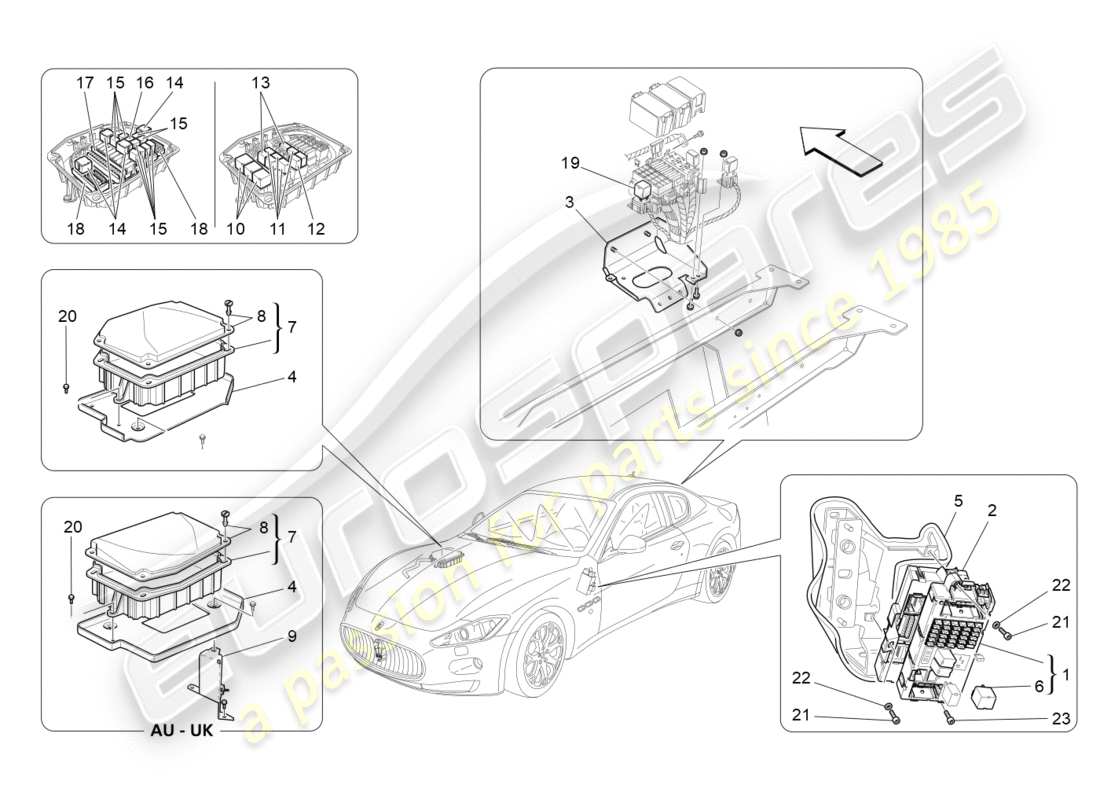

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 245787
              DASHBOARD ECU
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £156.44
              from £156.44
              This part replaces part number 190831
              # 001
              MPN: 245788
              DASHBOARD ECU
              (valid for: AUTOMATIC)
              from £171.64
              from £171.64
              # 001
              MPN: 245788
              DASHBOARD ECU
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £171.64
              from £171.64
              # 002
              MPN: 249579
              BODY COMPUTER CONTROL UNIT
              Valid from assembly: 0 - 60847.
              from £446.75
              from £446.75
              This part replaces part number 233967
              # 002
              MPN: 249579
              BODY COMPUTER CONTROL UNIT
              Valid from assembly: 49658 - 60847.
              from £446.75
              from £446.75
              This part replaces part number 233967
              # 003
              MPN: 233453
              BRACKET
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £16.48
              from £16.48
              # 003
              MPN: 247832
              BRACKET
              (valid for: AUTOMATIC)
              from £26.98
              from £26.98
              # 003
              MPN: 247832
              BRACKET
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £26.98
              from £26.98
              # 004
              MPN: 235609
              FUSES CASE SUPPORT
              (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
              from £28.81
              from £28.81
              # 004
              MPN: 259817
              FUSES CASE SUPPORT
              (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
              from £64.73
              from £64.73
              # 005
              MPN: 68806100
              BODY COMPUTER SHIELD
              (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
              from £11.31
              from £11.31
              # 005
              MPN: 68806200
              BODY COMPUTER SHIELD
              (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
              from £9.95
              from £9.95
              # 006
              MPN: 194909
              RELAY 50A
              from £8.09
              from £8.09
              # 007
              MPN: 196907
              RELAYS AND FUSES CASE
              (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
              from £68.05
              from £68.05
              # 007
              MPN: 196908
              RELAYS AND FUSES CASE
              (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
              from £109.22
              from £109.22
              # 008
              MPN: 196910
              COVER ASSEMBLY
              from £28.24
              from £28.24
              # 009
              MPN: 191107
              BRACKET
              (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
              from £28.98
              from £28.98
              # 010
              MPN: 194909
              RELAY 50A
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £8.09
              from £8.09
              # 011
              MPN: 216065
              RELAY 20A
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £6.11
              from £6.11
              # 012
              MPN: 161590
              RELAY 20A
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £14.28
              from £14.28
              # 013
              MPN: 980139751
              RELAY 30A
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £30.34
              from £30.34
              # 014
              MPN: 228646
              RELAY 50A
              (valid for: AUTOMATIC)
              from £23.58
              from £23.58
              # 014
              MPN: 228646
              RELAY 50A
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £23.58
              from £23.58
              # 015
              MPN: 227286
              RELAY 30A
              (valid for: AUTOMATIC)
              from £21.70
              from £21.70
              # 015
              MPN: 227286
              RELAY 30A
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £21.70
              from £21.70
              # 016
              MPN: 227285
              RELAY 20/10A
              (valid for: AUTOMATIC)
              from £15.09
              from £15.09
              # 016
              MPN: 227285
              RELAY 20/10A
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £15.09
              from £15.09
              # 017
              MPN: 980145346
              SCM NEW MTA UNIT
              (valid for: AUTOMATIC)
              from £161.81
              from £161.81
              # 017
              MPN: 980145346
              SCM NEW MTA UNIT
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £161.81
              from £161.81
              # 018
              MPN: 980145347
              MTA MINIVAL-MAXIRELAY MODULE
              (valid for: AUTOMATIC)
              from £56.37
              from £56.37
              # 018
              MPN: 980145347
              MTA MINIVAL-MAXIRELAY MODULE
              Valid from assembly: 49658. (valid for: AUTOMATIC)
              from £56.37
              from £56.37
              # 019
              MPN: 233100
              RELAY 50A
              (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
              from £6.14
              from £6.14
              # 020
              MPN: 11612824
              SCREW [TE M6X25]
              from £1.42
              from £1.42
              # 021
              MPN: 13290924
              SCREW
              from £1.86
              from £1.86
              # 022
              MPN: 12641024
              WASHER
              from £1.24
              from £1.24
              # 023
              MPN: 13290324
              SCREW
              from £1.31
              from £1.31
