Valid from assembly: 0 - 66947.
-part-diagram-09.10.1.webp)

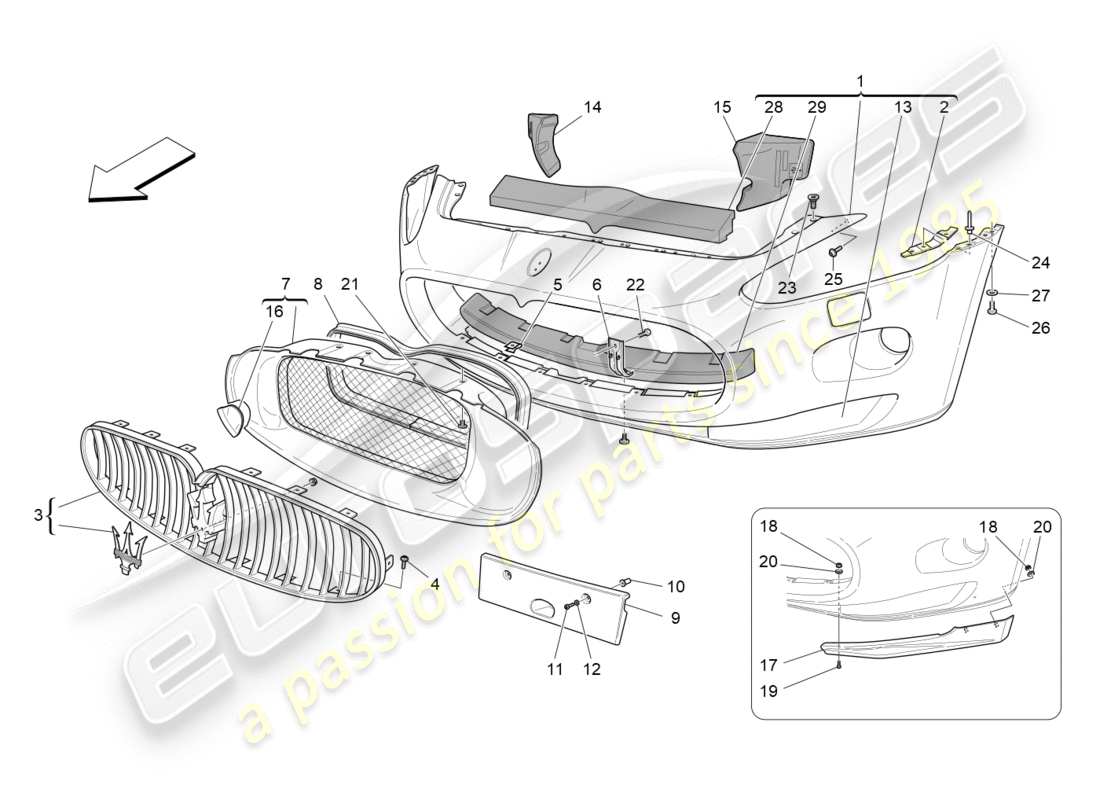

09.10.1 - FRONT BUMPER
Maserati GranTurismo (2010) FRONT BUMPER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980145002
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 55703.
from £1,505.99
from £1,505.99
# 001
MPN: 980145002
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 60847.
from £1,505.99
from £1,505.99
# 001
MPN: 980145003
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 55703. Suitable for cars with: Front park sensors.
from £1,505.99
from £1,505.99
# 001
MPN: 980145003
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 60847. Suitable for cars with: Front park sensors.
from £1,505.99
from £1,505.99
# 001
MPN: 980145256
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 60847. Suitable for cars with: MC Sport Line Version.
from £1,562.12
from £1,562.12
# 001
MPN: 980145256
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 66947. Suitable for cars with: MC Sport Line Version.
from £1,562.12
from £1,562.12
# 001
MPN: 980145257
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 60847. Suitable for cars with: Front park sensors, MC Sport Line Version.
from £1,926.79
from £1,926.79
# 001
MPN: 980145257
COMPLETE FRONT BUMPER
Valid from assembly: 0 - 66947. Suitable for cars with: Front park sensors, MC Sport Line Version.
from £1,926.79
from £1,926.79
# 002
MPN: 80252400
RH BRACKET
from £36.92
from £36.92
# 002
MPN: 80252500
LH BRACKET
from £36.92
from £36.92
# 003
MPN: 68250900
FRONT GRILLE ASSEMBLY
Valid from assembly: 0 - 60847. (valid for: AUTOMATIC)
from £344.76
from £344.76
# 003
MPN: 81131500
FRONT GRILLE ASSEMBLY #BLACK#
(valid for: 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £353.95
from £353.95
# 003
MPN: 81131500
FRONT GRILLE ASSEMBLY #BLACK#
Valid from assembly: 49658 - 60847. (valid for: 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £353.95
from £353.95
# 003
MPN: 81178300
FRONT GRILLE ASSEMBLY
Valid from assembly: 0 - 60847. Suitable for cars with: Front park sensors. (valid for: AUTOMATIC)
from £864.18
from £864.18
# 003
MPN: 81240000
FRONT GRILLE ASSEMBLY #BLACK#
Valid from assembly: 0 - 66947. Suitable for cars with: Front park sensors. (valid for: 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £612.90
from £612.90
# 003
MPN: 81240000
FRONT GRILLE ASSEMBLY #BLACK#
Valid from assembly: 49658 - 60847. Suitable for cars with: Front park sensors. (valid for: 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £612.90
from £612.90
# 003
MPN: 84396700
FRONT GRILLE ASSEMBLY #CHROME#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
Supersession
Supersession
# 003
MPN: 85110700
FRONT GRILLE ASSEMBLY #CHROME#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £445.89
from £445.89
This part replaces part number 84396700
# 004
MPN: 81145000
SCREW [M 5] #HEIGHT 2MM#
from £16.09
from £16.09
# 004
MPN: 83093600
SCREW [M 5] #HEIGHT 1,8MM#
from £5.44
from £5.44
# 005
MPN: 67278400
BRACKET
from £1.07
from £1.07
# 006
MPN: 68635500
BRACKET
from £21.91
from £21.91
# 007
MPN: 80059700
AIR DUCT
(valid for: AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,TAIWAN,UK)
from £223.79
from £223.79
# 007
MPN: 80305200
AIR DUCT
(valid for: CANADA,MIDDLE-EAST,USA)
from £273.19
from £273.19
# 008
MPN: 80059800
GASKET
from £33.71
from £33.71
# 009
MPN: 80056900
FRONT LICENSE PLATE HOLDER
(valid for: AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,TAIWAN,UK)
from £23.75
from £23.75
# 009
MPN: 80360600
FRONT LICENSE PLATE HOLDER
(valid for: CANADA,MIDDLE-EAST,USA)
from £23.75
from £23.75
# 010
MPN: 66412700
BUSHING
from £1.92
from £1.92
# 011
MPN: 13274377
SCREW [TCIC PZ M 5X 18]
from £0.52
from £0.52
# 012
MPN: 12637807
WASHER [D 5.15-11X1]
from £0.52
from £0.52
# 013
MPN: 980145160
KIT GRILLS FOR FRONT BUMPER
from £238.51
from £238.51
# 014
MPN: 80305000
FRONT BUMPER RIGHT SIDE SHOCK ABSORBER
(valid for: CANADA,MIDDLE-EAST,USA)
from £17.31
from £17.31
# 015
MPN: 80305100
FRONT BUMPER LEFT SIDE SHOCK ABSORBER
(valid for: CANADA,MIDDLE-EAST,USA)
from £17.31
from £17.31
# 016
MPN: 80791400
TOW HOOK PLUG
from £26.74
from £26.74
# 017
MPN: 82079700
RH FRONT SPOILER
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version.
from £1,379.78
from £1,379.78
# 017
MPN: 82416500
LH FRONT SPOILER
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version.
from £1,379.78
from £1,379.78
# 018
MPN: 14039614
NUT [M 6]
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version.
from £0.52
from £0.52
# 019
MPN: 67578600
SCREW [M6 X 20]
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version.
from £1.54
from £1.54
# 020
MPN: 12647778
WASHER [D. 6 .45-21X1]
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version.
from £0.52
from £0.52
# 021
MPN: 51810310
SCREW
from £2.30
from £2.30
This part replaces part number 46419734
# 022
MPN: 16286024
SCREW [M 6X 16]
from £0.53
from £0.53
# 023
MPN: 51810310
SCREW
from £2.30
from £2.30
This part replaces part number 46419734
# 024
MPN: 14642591
RIVET
from £2.30
from £2.30
# 025
MPN: 69089100
SCREW [M 5]
from £1.54
from £1.54
# 026
MPN: 10902524
SCREW [TE M 6X 22]
from £0.51
from £0.51
# 027
MPN: 12643724
WASHER [D 6,15-18X 1,5]
from £0.51
from £0.51
# 028
MPN: 80055900
UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER
from £67.48
from £67.48
# 029
MPN: 80055800
LOWER CENTRAL FRONT BUMPER PANEL
from £85.71
from £85.71
-part-diagram-09.11.1.webp "MASERATI GRANTURISMO (2010) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GRANTURISMO (2010) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GRANTURISMO (2010) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI GRANTURISMO (2010) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GRANTURISMO (2010) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.3.webp "MASERATI GRANTURISMO (2010) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI GRANTURISMO (2010) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GRANTURISMO (2010) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GRANTURISMO (2010) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GRANTURISMO (2010) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GRANTURISMO (2010) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GRANTURISMO (2010) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GRANTURISMO (2010) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GRANTURISMO (2010) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.31.1.webp "MASERATI GRANTURISMO (2010) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI GRANTURISMO (2010) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI GRANTURISMO (2010) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.1.webp "MASERATI GRANTURISMO (2010) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GRANTURISMO (2010) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.1.webp "MASERATI GRANTURISMO (2010) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GRANTURISMO (2010) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GRANTURISMO (2010) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GRANTURISMO (2010) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.1.webp "MASERATI GRANTURISMO (2010) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.2.webp "MASERATI GRANTURISMO (2010) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI GRANTURISMO (2010) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI GRANTURISMO (2010) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GRANTURISMO (2010) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GRANTURISMO (2010) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.2.webp "MASERATI GRANTURISMO (2010) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.3.webp "MASERATI GRANTURISMO (2010) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GRANTURISMO (2010) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI GRANTURISMO (2010) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.63.2.webp "MASERATI GRANTURISMO (2010) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-01.00.1.webp "MASERATI GRANTURISMO (2010) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.1.webp "MASERATI GRANTURISMO (2010) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GRANTURISMO (2010) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GRANTURISMO (2010) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.1.webp "MASERATI GRANTURISMO (2010) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.1.webp "MASERATI GRANTURISMO (2010) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.1.webp "MASERATI GRANTURISMO (2010) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.1.webp "MASERATI GRANTURISMO (2010) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.1.webp "MASERATI GRANTURISMO (2010) TIMING PARTS DIAGRAM")
-part-diagram-01.25.1.webp "MASERATI GRANTURISMO (2010) VALVES PARTS DIAGRAM")
-part-diagram-01.40.1.webp "MASERATI GRANTURISMO (2010) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GRANTURISMO (2010) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GRANTURISMO (2010) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.1.webp "MASERATI GRANTURISMO (2010) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.1.webp "MASERATI GRANTURISMO (2010) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.2.webp "MASERATI GRANTURISMO (2010) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GRANTURISMO (2010) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.1.webp "MASERATI GRANTURISMO (2010) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.1.webp "MASERATI GRANTURISMO (2010) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.1.webp "MASERATI GRANTURISMO (2010) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GRANTURISMO (2010) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.1.webp "MASERATI GRANTURISMO (2010) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GRANTURISMO (2010) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.2.webp "MASERATI GRANTURISMO (2010) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.1.webp "MASERATI GRANTURISMO (2010) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.2.webp "MASERATI GRANTURISMO (2010) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.1.webp "MASERATI GRANTURISMO (2010) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.1.webp "MASERATI GRANTURISMO (2010) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GRANTURISMO (2010) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GRANTURISMO (2010) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GRANTURISMO (2010) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.2.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.5.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.1.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-02.01.1.webp "MASERATI GRANTURISMO (2010) ACTUATION HYDRAULIC PARTS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.11.1.webp "MASERATI GRANTURISMO (2010) FRICTION DISCS AND HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.90.1.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CLUTCH CONTROL FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.01.1.webp "MASERATI GRANTURISMO (2010) DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GRANTURISMO (2010) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.1.webp "MASERATI GRANTURISMO (2010) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GRANTURISMO (2010) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GRANTURISMO (2010) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.11.1.webp "MASERATI GRANTURISMO (2010) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.12.1.webp "MASERATI GRANTURISMO (2010) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.13.1.webp "MASERATI GRANTURISMO (2010) INNER CONTROLS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GRANTURISMO (2010) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.21.2.webp "MASERATI GRANTURISMO (2010) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.30.1.webp "MASERATI GRANTURISMO (2010) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GRANTURISMO (2010) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.40.1.webp "MASERATI GRANTURISMO (2010) GEARBOX ACTIVATION HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-part-diagram-03.41.1.webp "MASERATI GRANTURISMO (2010) GEARBOX ACTIVATION HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-part-diagram-03.50.1.webp "MASERATI GRANTURISMO (2010) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GRANTURISMO (2010) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.90.1.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CONTROL (GEARBOX) PARTS DIAGRAM")
-part-diagram-04.00.1.webp "MASERATI GRANTURISMO (2010) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.1.webp "MASERATI GRANTURISMO (2010) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI GRANTURISMO (2010) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI GRANTURISMO (2010) LINES PARTS DIAGRAM")
-part-diagram-04.20.2.webp "MASERATI GRANTURISMO (2010) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI GRANTURISMO (2010) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI GRANTURISMO (2010) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GRANTURISMO (2010) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.1.webp "MASERATI GRANTURISMO (2010) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GRANTURISMO (2010) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GRANTURISMO (2010) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GRANTURISMO (2010) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GRANTURISMO (2010) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.2.webp "MASERATI GRANTURISMO (2010) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GRANTURISMO (2010) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI GRANTURISMO (2010) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI GRANTURISMO (2010) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.21.2.webp "MASERATI GRANTURISMO (2010) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.1.webp "MASERATI GRANTURISMO (2010) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.22.2.webp "MASERATI GRANTURISMO (2010) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GRANTURISMO (2010) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GRANTURISMO (2010) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.2.webp "MASERATI GRANTURISMO (2010) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.01.1.webp "MASERATI GRANTURISMO (2010) PASSENGER'S AIRBAG-DEACTIVATION PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GRANTURISMO (2010) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GRANTURISMO (2010) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GRANTURISMO (2010) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GRANTURISMO (2010) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.1.webp "MASERATI GRANTURISMO (2010) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI GRANTURISMO (2010) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.2.webp "MASERATI GRANTURISMO (2010) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.4.webp "MASERATI GRANTURISMO (2010) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.31.1.webp "MASERATI GRANTURISMO (2010) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.2.webp "MASERATI GRANTURISMO (2010) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.3.webp "MASERATI GRANTURISMO (2010) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI GRANTURISMO (2010) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GRANTURISMO (2010) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI GRANTURISMO (2010) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI GRANTURISMO (2010) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI GRANTURISMO (2010) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.32.1.webp "MASERATI GRANTURISMO (2010) SIDE LIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI GRANTURISMO (2010) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.1.webp "MASERATI GRANTURISMO (2010) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.2.webp "MASERATI GRANTURISMO (2010) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GRANTURISMO (2010) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GRANTURISMO (2010) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GRANTURISMO (2010) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI GRANTURISMO (2010) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI GRANTURISMO (2010) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI GRANTURISMO (2010) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.51.2.webp "MASERATI GRANTURISMO (2010) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.1.webp "MASERATI GRANTURISMO (2010) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.1.webp "MASERATI GRANTURISMO (2010) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI GRANTURISMO (2010) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.2.webp "MASERATI GRANTURISMO (2010) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI GRANTURISMO (2010) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.5.webp "MASERATI GRANTURISMO (2010) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.6.webp "MASERATI GRANTURISMO (2010) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI GRANTURISMO (2010) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GRANTURISMO (2010) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.2.webp "MASERATI GRANTURISMO (2010) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI GRANTURISMO (2010) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GRANTURISMO (2010) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GRANTURISMO (2010) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.2.webp "MASERATI GRANTURISMO (2010) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.3.webp "MASERATI GRANTURISMO (2010) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.4.webp "MASERATI GRANTURISMO (2010) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GRANTURISMO (2010) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GRANTURISMO (2010) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GRANTURISMO (2010) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GRANTURISMO (2010) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
