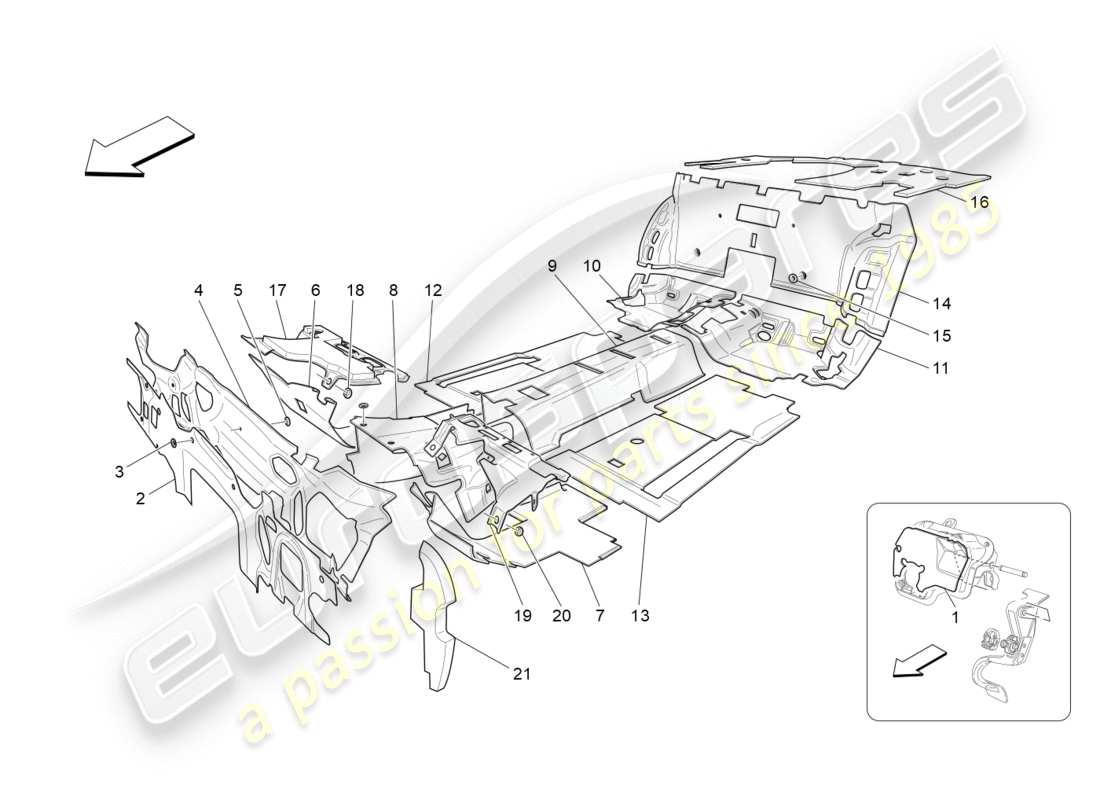

Maserati GranTurismo (2010) SOUND-PROOFING PANELS INSIDE THE VEHICLE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 193886
                                  SOUNDPROOFING PANEL FOR PEDAL
                                  from £40.08
                                  from £40.08
                                  # 002
                                  MPN: 67588100
                                  FIRE SHIELD SILENCER
                                  (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                  from £61.72
                                  from £61.72
                                  # 002
                                  MPN: 67987700
                                  FIRE SHIELD SILENCER
                                  (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                  from £61.50
                                  from £61.50
                                  # 003
                                  MPN: 67640300
                                  FASTENER BUTTON
                                  from £0.52
                                  from £0.52
                                  # 004
                                  MPN: 67225100
                                  DASHBOARD FRONT SOUNDPROOFING PANEL
                                  from £113.84
                                  from £113.84
                                  # 005
                                  MPN: 14591987
                                  FASTENER BUTTON
                                  from £0.54
                                  from £0.54
                                  # 005
                                  MPN: 67640300
                                  FASTENER BUTTON
                                  from £0.52
                                  from £0.52
                                  # 006
                                  MPN: 69189100
                                  RH FRONT FOOTBOARD INSULATION
                                  (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                  from £67.10
                                  from £67.10
                                  # 006
                                  MPN: 69193900
                                  RH FRONT FOOTBOARD INSULATION
                                  (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                  from £33.32
                                  from £33.32
                                  # 007
                                  MPN: 69189200
                                  LH FRONT FOOTBOARD INSULATION
                                  (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                  from £67.70
                                  from £67.70
                                  # 007
                                  MPN: 69194000
                                  LH FRONT FOOTBOARD INSULATION
                                  (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                  from £36.36
                                  from £36.36
                                  # 008
                                  MPN: 68381500
                                  TUNNEL FRONT INSULATION
                                  from £56.43
                                  from £56.43
                                  This part replaces part number 82172800
                                  # 009
                                  MPN: 69189400
                                  TUNNEL REAR INSULATION
                                  from £42.52
                                  from £42.52
                                  # 010
                                  MPN: 80177900
                                  RIGHT BACK SEAT SHOCK ABSORBER
                                  from £55.35
                                  from £55.35
                                  # 011
                                  MPN: 80178000
                                  LEFT BACK SEAT SHOCK ABSORBER
                                  from £55.35
                                  from £55.35
                                  # 012
                                  MPN: 68380900
                                  RH REAR FOOTBOARD INSULATION
                                  from £30.24
                                  from £30.24
                                  # 013
                                  MPN: 68381000
                                  LH REAR FOOTBOARD INSULATION
                                  from £49.69
                                  from £49.69
                                  # 014
                                  MPN: 68380300
                                  REAR SEAT BACK DEADENING
                                  from £95.32
                                  from £95.32
                                  # 015
                                  MPN: 67640300
                                  FASTENER BUTTON
                                  from £0.53
                                  from £0.53
                                  # 016
                                  MPN: 68381100
                                  PARCEL SHELF REINFORCEMENT
                                  from £20.43
                                  from £20.43
                                  # 017
                                  MPN: 68900900
                                  RH DASHBOARD SOUNDPROOFING
                                  (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                  from £27.15
                                  from £27.15
                                  # 017
                                  MPN: 80310400
                                  RH DASHBOARD SOUNDPROOFING
                                  (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                  from £30.42
                                  from £30.42
                                  # 018
                                  MPN: 14591987
                                  FASTENER BUTTON
                                  from £0.53
                                  from £0.53
                                  # 018
                                  MPN: 67640300
                                  FASTENER BUTTON
                                  from £0.54
                                  from £0.54
                                  # 018
                                  MPN: 81695900
                                  FASTENER BUTTON #GRAY#
                                  from £1.07
                                  from £1.07
                                  # 019
                                  MPN: 80750900
                                  LH DASHBOARD SOUNDPROOFING
                                  (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
                                  from £16.81
                                  from £16.81
                                  # 019
                                  MPN: 82076800
                                  LH DASHBOARD SOUNDPROOFING
                                  (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                  from £27.15
                                  from £27.15
                                  # 019
                                  MPN: 82076800
                                  LH DASHBOARD SOUNDPROOFING
                                  Valid from assembly: 49658 - 87853. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                                  from £27.15
                                  from £27.15
                                  # 020
                                  MPN: 14591987
                                  FASTENER BUTTON
                                  from £0.53
                                  from £0.53
                                  # 020
                                  MPN: 67640300
                                  FASTENER BUTTON
                                  from £0.53
                                  from £0.53
                                  # 020
                                  MPN: 81695900
                                  FASTENER BUTTON #GRAY#
                                  from £1.07
                                  from £1.07
                                  # 021
                                  MPN: 80170900
                                  RH INSULATION
                                  from £26.25
                                  from £26.25
                                  # 021
                                  MPN: 80171000
                                  LH INSULATION
                                  from £13.45
                                  from £13.45
