Maserati GranTurismo (2010) THERMAL INSULATING PANELS Parts Diagram

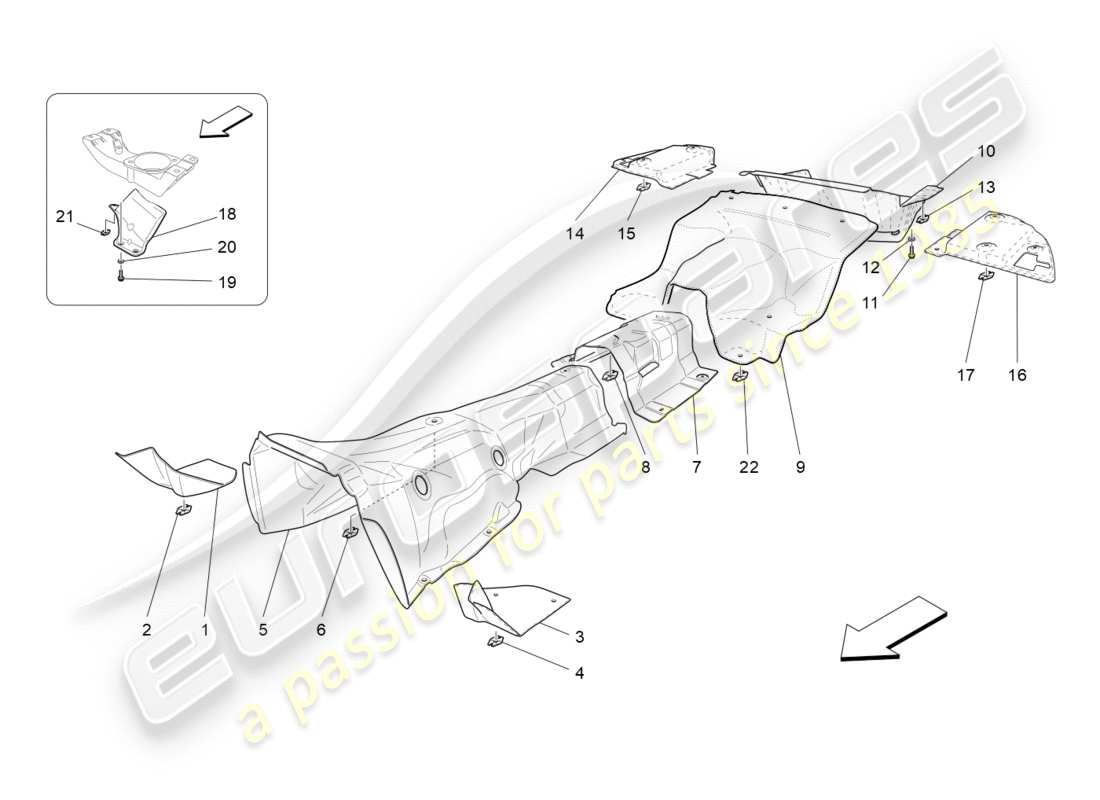

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 68948900
RH HEAT SHIELD
(valid for: AUTOMATIC)
from £47.30
from £47.30
# 002
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 003
MPN: 68949000
LH HEAT SHIELD
(valid for: AUTOMATIC)
from £46.59
from £46.59
# 004
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 005
MPN: 68949200
FRONT TUNNEL HEAT SHIELD
(valid for: AUTOMATIC)
from £123.35
from £123.35
# 006
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.51
from £0.51
# 007
MPN: 80103200
REAR TUNNEL HEAT SHIELD
(valid for: AUTOMATIC)
from £30.73
from £30.73
# 008
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.52
from £0.52
# 009
MPN: 82653500
REAR HEAT SHIELD
(valid for: AUTOMATIC)
from £87.21
from £87.21
This part replaces part number 67221900 which we have in stock - and 1 more. Click to view details
# 010
MPN: 80058300
SPARE WHEEL STEP HEAT SHIELD
(valid for: AUTOMATIC)
from £179.84
from £179.84
# 011
MPN: 67909700
SCREW
(valid for: AUTOMATIC)
from £1.85
from £1.85
# 012
MPN: 12647678
WASHER
(valid for: AUTOMATIC)
from £0.47
from £0.47
# 013
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.52
from £0.52
# 014
MPN: 80058100
RH SILENCER HEAT SHIELD
(valid for: AUTOMATIC)
from £38.53
from £38.53
# 015
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 016
MPN: 80058200
LH SILENCER HEAT SHIELD
(valid for: AUTOMATIC)
from £43.82
from £43.82
# 017
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 018
MPN: 69733300
BATTERY CHARGER HEAT SHIELD
(valid for: AUTOMATIC)
from £16.45
from £16.45
# 019
MPN: 10902124
SCREW
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 020
MPN: 11193274
WASHER
(valid for: AUTOMATIC)
from £0.54
from £0.54
# 021
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.54
from £0.54
# 022
MPN: 67315400
WASHER
(valid for: AUTOMATIC)
from £0.52
from £0.52
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
