maserati granturismo (2010) thermal insulating panels parts diagram

09.63.2 - thermal insulating panels

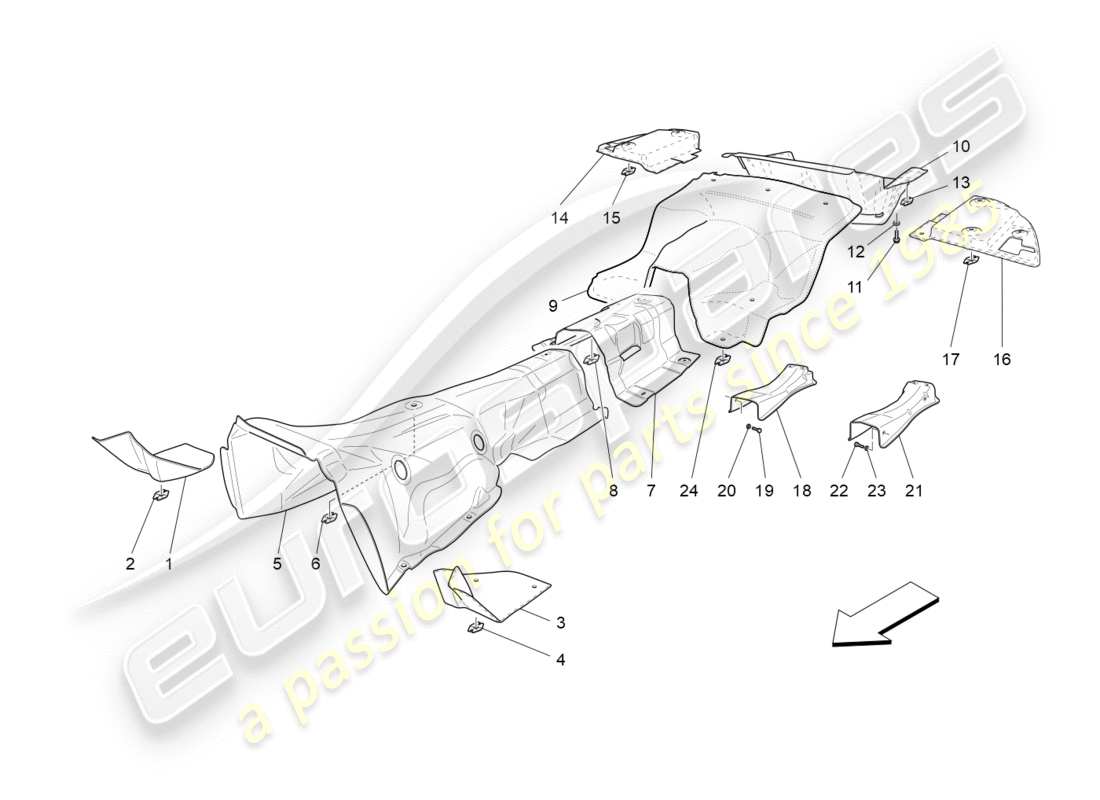

Maserati GranTurismo (2010) THERMAL INSULATING PANELS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 80681900
RH HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £42.31
from £42.31
This part replaces part number 67221400 - and 1 more. Click to view details
# 002
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 003
MPN: 67221500
LH HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £47.84
from £47.84
# 004
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 005
MPN: 69781300
FRONT TUNNEL HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £120.07
from £120.07
# 006
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.51
from £0.51
# 007
MPN: 80816600
REAR TUNNEL HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £40.14
from £40.14
# 008
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.52
from £0.52
# 009
MPN: 82653500
REAR HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £86.45
from £86.45
This part replaces part number 67221900 which we have in stock - and 1 more. Click to view details
# 010
MPN: 80058300
SPARE WHEEL STEP HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £178.28
from £178.28
# 011
MPN: 67909700
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1.84
from £1.84
# 012
MPN: 12647678
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.47
from £0.47
# 013
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.52
from £0.52
# 014
MPN: 80058100
RH SILENCER HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £38.20
from £38.20
# 015
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 016
MPN: 80058200
LH SILENCER HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £43.44
from £43.44
# 017
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 018
MPN: 236176
SOLENOID VALVE HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £165.47
from £165.47
# 019
MPN: 10977524
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.51
from £0.51
# 020
MPN: 11181674
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 021
MPN: 244423
F1 GEARBOX OIL TANK HEAT REPAIR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £80.64
from £80.64
# 022
MPN: 10977524
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.51
from £0.51
# 023
MPN: 11181674
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 024
MPN: 67315400
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.52
from £0.52
