maserati granturismo (2011) rh cylinder head parts diagram

01.20.1 - RH cylinder head

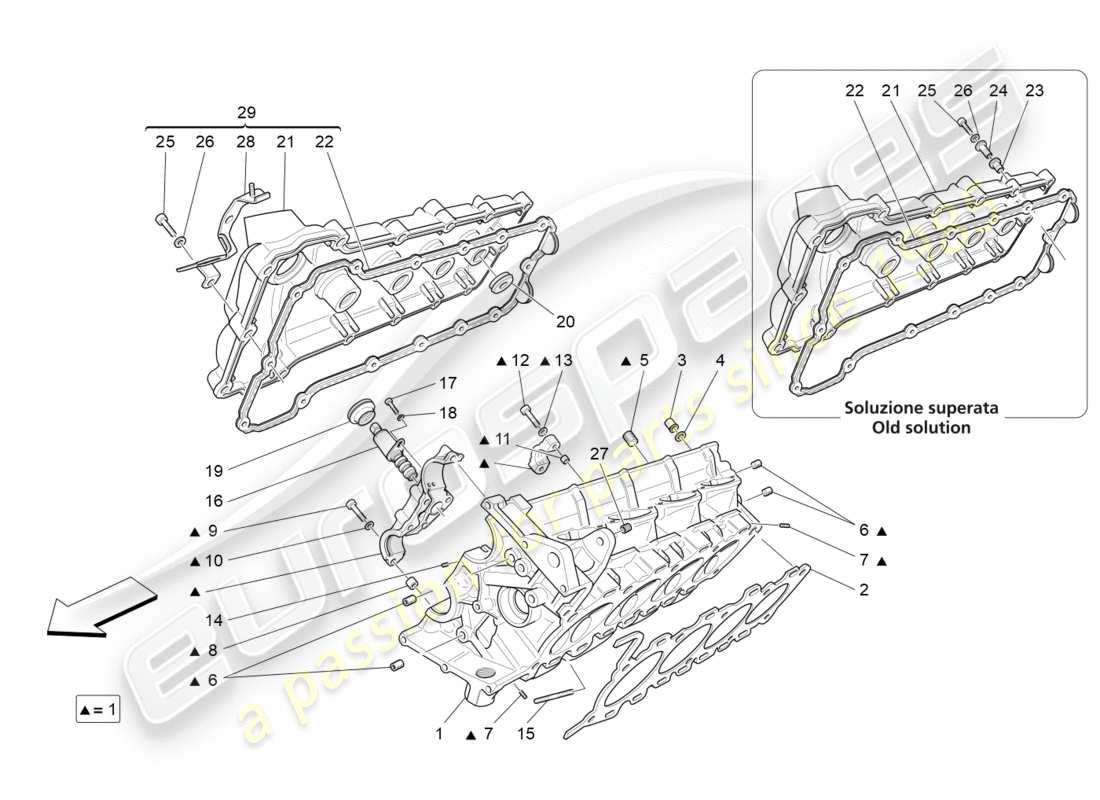

Maserati GranTurismo (2011) RH CYLINDER HEAD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 261272
                                            RH HEAD ASSEMBLY
                                            Valid from engine: 0 - 157839.
                                            from £1,304.80
                                            from £1,304.80
                                            This part replaces part number 248931
                                            # 001
                                            MPN: 261272
                                            RH HEAD ASSEMBLY
                                            Valid from engine: 0 - 157854.
                                            from £1,304.80
                                            from £1,304.80
                                            This part replaces part number 248931
                                            # 001
                                            MPN: 271221
                                            RH HEAD ASSEMBLY
                                            Valid from engine: 157840.
                                            from £1,450.56
                                            from £1,450.56
                                            # 001
                                            MPN: 271221
                                            RH HEAD ASSEMBLY
                                            Valid from engine: 157855.
                                            from £1,450.56
                                            from £1,450.56
                                            # 002
                                            MPN: 211871
                                            RH HEAD GASKET
                                            (valid for: AUTOMATIC | 4200 cc)
                                            from £101.67
                                            from £101.67
                                            # 002
                                            MPN: 266262
                                            RH HEAD GASKET
                                            (valid for: 4700 cc)
                                            from £77.62
                                            from £77.62
                                            This part replaces part number 212219
                                            # 003
                                            MPN: 183524
                                            NUT [M11]
                                            from £1.20
                                            from £1.20
                                            # 003
                                            MPN: 303886
                                            NUT
                                            Supersession
                                            Supersession
                                            This part replaces part number 183524
                                            # 004
                                            MPN: 151117
                                            WASHER [D.11.25-22X2.5]
                                            from £0.31
                                            from £0.31
                                            This part replaces part number 300266 - and 1 more. Click to view details
                                            # 005
                                            MPN: 14325140
                                            THREADED PLUG
                                            from £1.00
                                            from £1.00
                                            # 006
                                            MPN: 14326001
                                            THREADED PLUG
                                            from £0.48
                                            from £0.48
                                            # 007
                                            MPN: 199760
                                            THREADED PLUG
                                            from £0.52
                                            from £0.52
                                            # 008
                                            MPN: 102725
                                            CENTERING DOWEL
                                            from £0.64
                                            from £0.64
                                            # 009
                                            MPN: 243721
                                            SCREW
                                            from £0.52
                                            from £0.52
                                            # 010
                                            MPN: 11197774
                                            WASHER [D.6.4-12X2.4]
                                            from £0.53
                                            from £0.53
                                            # 011
                                            MPN: 102725
                                            CENTERING DOWEL
                                            from £0.58
                                            from £0.58
                                            # 012
                                            MPN: 243719
                                            SCREW [M6X35]
                                            from £0.48
                                            from £0.48
                                            # 013
                                            MPN: 11197774
                                            WASHER [D.6.4-12X2.4]
                                            from £0.52
                                            from £0.52
                                            # 015
                                            MPN: 13543424
                                            STUD
                                            from £1.04
                                            from £1.04
                                            # 016
                                            MPN: 269226
                                            OIL PRESSURE CHECK VALVE
                                            Valid from engine: 0 - 185618.
                                            Supersession
                                            Supersession
                                            This part replaces part number 253283
                                            # 016
                                            MPN: 296016
                                            OIL PRESSURE CHECK VALVE
                                            Valid from engine: 0 - 185618.
                                            from £101.15
                                            from £101.15
                                            This part replaces part number 269226
                                            # 016
                                            MPN: 296016
                                            OIL PRESSURE CHECK VALVE
                                            Valid from engine: 185619.
                                            from £101.15
                                            from £101.15
                                            This part replaces part number 269226
                                            # 017
                                            MPN: 14304224
                                            SCREW
                                            from £0.53
                                            from £0.53
                                            # 018
                                            MPN: 11181574
                                            WASHER [D.5.3-11X0.9]
                                            from £0.54
                                            from £0.54
                                            # 019
                                            MPN: 228962
                                            GASKET
                                            from £6.36
                                            from £6.36
                                            # 020
                                            MPN: 223982
                                            GASKET
                                            from £1.40
                                            from £1.40
                                            # 021
                                            MPN: 272790
                                            RH CYLINDER HEAD COVER
                                            Valid from engine: 179079. (valid for: 4700 cc)
                                            from £269.76
                                            from £269.76
                                            # 021
                                            MPN: 980145494
                                            RH HEAD COVER KIT #(VALID FOR CARS WITH OIL PLUG COD. 228493)#
                                            (valid for: AUTOMATIC | 4200 cc)
                                            from £1,201.28
                                            from £1,201.28
                                            This part replaces part number 230056 - and 1 more. Click to view details
                                            # 021
                                            MPN: 980145494
                                            RH HEAD COVER KIT #(VALID FOR CARS WITH OIL PLUG COD. 238500)#
                                            (valid for: AUTOMATIC | 4200 cc)
                                            from £1,201.28
                                            from £1,201.28
                                            This part replaces part number 230056 - and 1 more. Click to view details
                                            # 022
                                            MPN: 211219
                                            RH HEAD COVER GASKET
                                            Valid from engine: 0 - 179078.
                                            from £37.31
                                            from £37.31
                                            # 022
                                            MPN: 264986
                                            RH HEAD COVER GASKET
                                            Valid from engine: 179079.
                                            from £52.79
                                            from £52.79
                                            # 023
                                            MPN: 203102
                                            RUBBER BUSHING
                                            Valid from engine: 0 - 179078.
                                            from £2.65
                                            from £2.65
                                            # 024
                                            MPN: 228598
                                            BUSHING
                                            Valid from engine: 0 - 179078.
                                            from £1.73
                                            from £1.73
                                            # 025
                                            MPN: 213129
                                            SCREW
                                            from £0.49
                                            from £0.49
                                            # 026
                                            MPN: 11197774
                                            WASHER [D.6.4-12X2.4]
                                            from £0.52
                                            from £0.52
                                            # 027
                                            MPN: 13525970
                                            THREADED INSERT
                                            from £3.60
                                            from £3.60
                                            # 028
                                            MPN: 265569
                                            RH AIR VALVE FIXING BRACKET
                                            from £973.05
                                            from £973.05
                                            # 029
                                            MPN: 980145469
                                            RH HEAD COVER KIT #CONSULT THE BULLETIN PPD 09/2012 12/12/2012#
                                            Valid from engine: 0 - 179078. (valid for: 4700 cc)
                                            from £1,208.81
                                            from £1,208.81
                                            This part replaces part number 240566
