maserati granturismo (2011) lh cylinder head camshafts parts diagram

01.23.1 - lh cylinder head camshafts

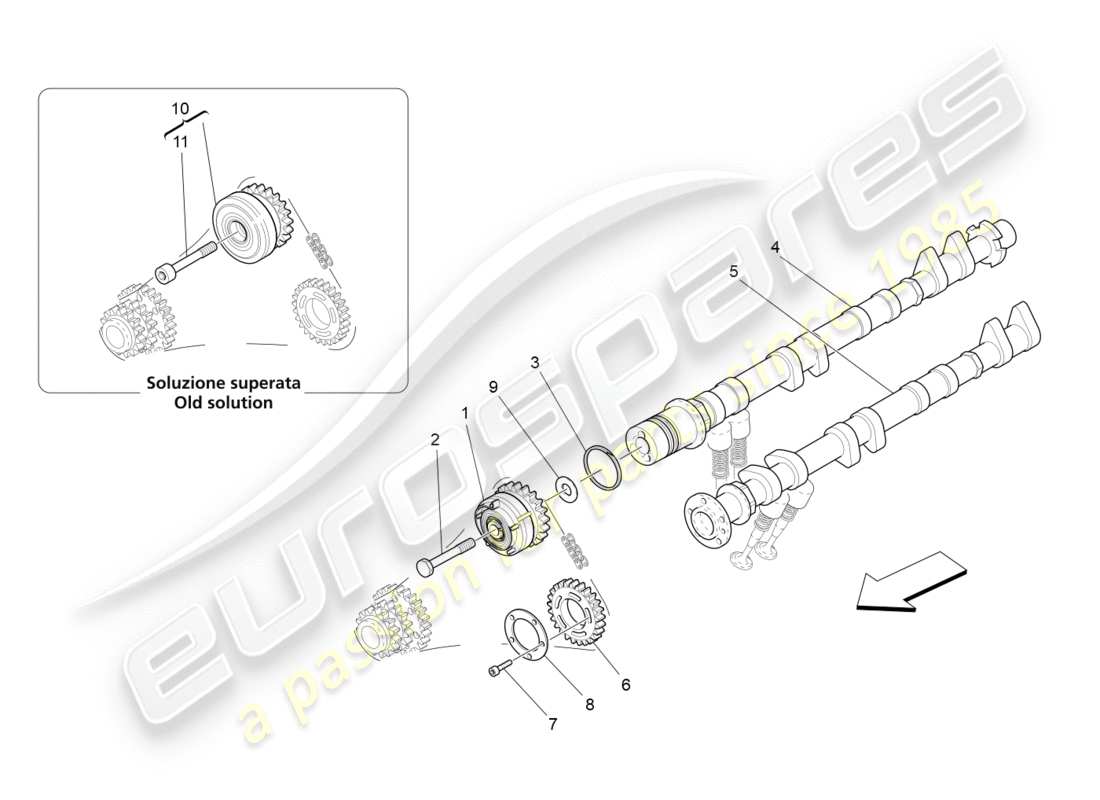

Maserati GranTurismo (2011) LH CYLINDER HEAD CAMSHAFTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 241906
        TIMING VARIATOR
        Valid from engine: 165854. (valid for: AUTOMATIC | 4700 cc)
        from £145.88
        from £145.88
        # 001
        MPN: 248019
        TIMING VARIATOR
        Valid from engine: 157855.
        from £411.42
        from £411.42
        # 001
        MPN: 248019
        TIMING VARIATOR
        Valid from engine: 168191.
        from £411.42
        from £411.42
        # 002
        MPN: 254892
        SCREW
        Valid from engine: 157855.
        from £3.80
        from £3.80
        This part replaces part number 248022
        # 002
        MPN: 254892
        SCREW
        Valid from engine: 165854.
        from £3.80
        from £3.80
        This part replaces part number 248022
        # 002
        MPN: 254892
        SCREW
        Valid from engine: 198191.
        from £3.80
        from £3.80
        This part replaces part number 248022
        # 003
        MPN: 216301
        SEAL RING
        Valid from engine: 0 - 157839.
        Supersession
        Supersession
        # 003
        MPN: 216301
        SEAL RING
        Valid from engine: 0 - 157854.
        Supersession
        Supersession
        # 003
        MPN: 246965
        SEAL RING
        Valid from engine: 0 - 157839.
        from £6.57
        from £6.57
        This part replaces part number 216301
        # 003
        MPN: 246965
        SEAL RING
        Valid from engine: 0 - 157854.
        from £6.57
        from £6.57
        This part replaces part number 216301
        # 003
        MPN: 246965
        SEAL RING
        Valid from engine: 157840.
        from £6.57
        from £6.57
        This part replaces part number 216301
        # 003
        MPN: 246965
        SEAL RING
        Valid from engine: 157855.
        from £6.57
        from £6.57
        This part replaces part number 216301
        # 004
        MPN: 231515
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 0 - 157839. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
        from £2,316.78
        from £2,316.78
        # 004
        MPN: 233290
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 0 - 157854. (valid for: AUTOMATIC | 4200 cc)
        from £2,217.79
        from £2,217.79
        This part replaces part number 229189
        # 004
        MPN: 238335
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 0 - 157839. (valid for: AUTOMATIC | 4700 cc)
        from £2,533.31
        from £2,533.31
        This part replaces part number 244670
        # 004
        MPN: 258480
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 157855. (valid for: AUTOMATIC | 4200 cc)
        from £1,928.19
        from £1,928.19
        # 004
        MPN: 259648
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 157840 - 165853. (valid for: AUTOMATIC | 4700 cc)
        from £2,108.35
        from £2,108.35
        # 004
        MPN: 259846
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 157840 - 168190. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
        from £134.23
        from £134.23
        # 004
        MPN: 267831
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 168191. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
        from £2,116.67
        from £2,116.67
        # 004
        MPN: 267833
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 165854 - 176607. (valid for: AUTOMATIC | 4700 cc)
        from £2,016.70
        from £2,016.70
        # 004
        MPN: 278106
        LH INTAKE CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 176608. (valid for: AUTOMATIC | 4700 cc)
        from £2,241.66
        from £2,241.66
        # 005
        MPN: 212499
        LH EXHAUST CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        from £1,890.11
        from £1,890.11
        # 005
        MPN: 244665
        LH EXHAUST CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 0 - 176607.
        from £1,745.27
        from £1,745.27
        # 005
        MPN: 278947
        LH EXHAUST CAMSHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        Valid from engine: 176608. (valid for: AUTOMATIC | 4700 cc)
        from £478.38
        from £478.38
        # 006
        MPN: 199756
        TOOTHED WHEEL FOR SHAFT #ENGINE SERIAL NUMBER IS REQUIRED#
        from £173.86
        from £173.86
        # 007
        MPN: 14305170
        SCREW
        from £2.47
        from £2.47
        This part replaces part number 14305770
        # 008
        MPN: 199757
        WASHER #ENGINE SERIAL NUMBER IS REQUIRED#
        from £9.58
        from £9.58
        # 009
        MPN: 240559
        DIAMOND WASHER
        Valid from engine: 157855. (valid for: AUTOMATIC)
        from £4.71
        from £4.71
        # 009
        MPN: 240559
        DIAMOND WASHER
        Valid from engine: 165854. (valid for: AUTOMATIC)
        from £4.71
        from £4.71
        # 010
        MPN: 252648
        TIMING VARIATOR
        Valid from engine: 0 - 165853. (valid for: AUTOMATIC | 4700 cc)
        from £256.62
        from £256.62
        This part replaces part number 231138
        # 010
        MPN: 253625
        TIMING VARIATOR
        Valid from engine: 0 - 157854.
        from £414.31
        from £414.31
        This part replaces part number 230336
        # 010
        MPN: 253625
        TIMING VARIATOR
        Valid from engine: 0 - 168190.
        from £414.31
        from £414.31
        This part replaces part number 230336
        # 011
        MPN: 224701
        SCREW
        Valid from engine: 0 - 157854.
        from £10.06
        from £10.06
        # 011
        MPN: 224701
        SCREW
        Valid from engine: 0 - 168190.
        from £10.06
        from £10.06
        # 011
        MPN: 227500
        SCREW
        Valid from engine: 0 - 165853. (valid for: AUTOMATIC | 4700 cc)
        from £43.82
        from £43.82
        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
