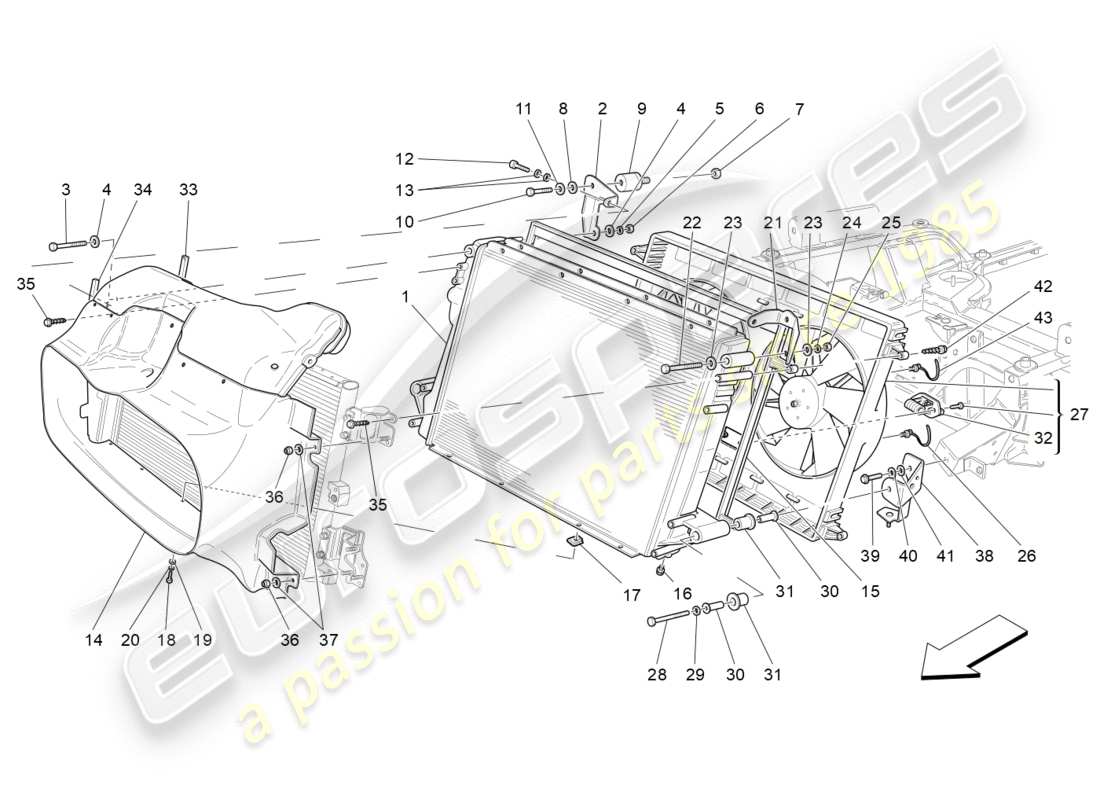

Maserati GranTurismo (2011) COOLING: AIR RADIATORS AND DUCTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 220979

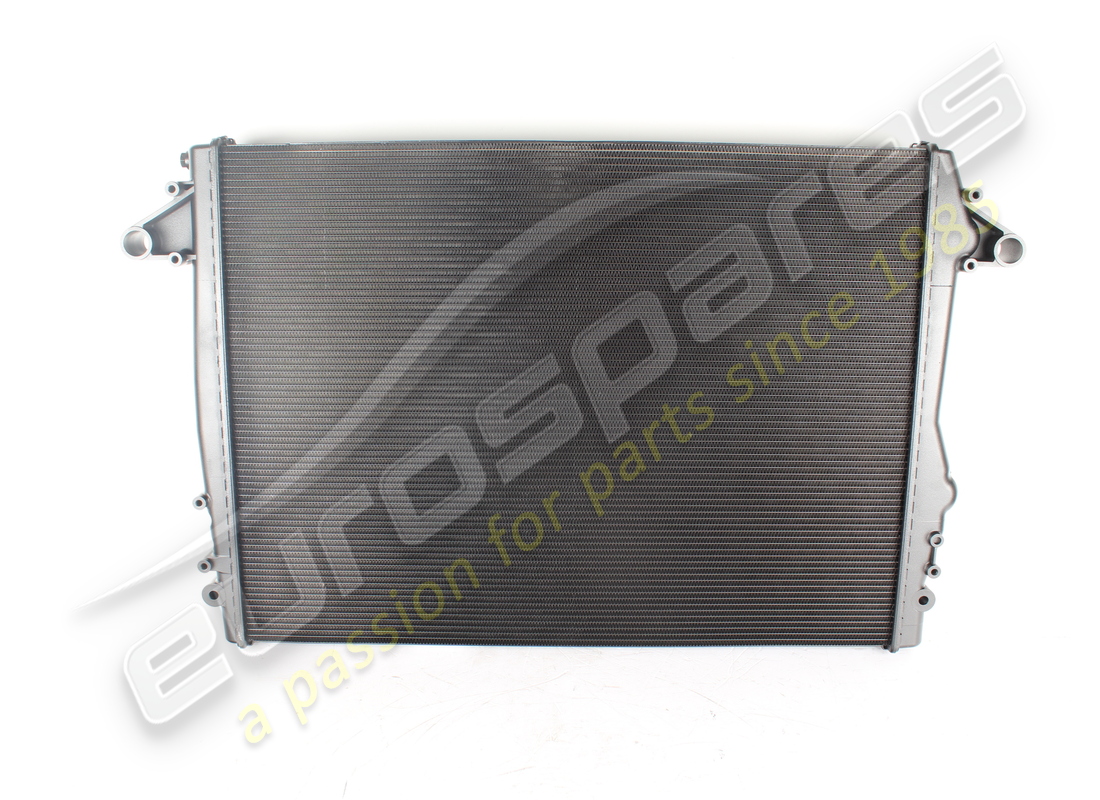

WATER RADIATOR
(valid for: 4700 cc)
from £430.17
from £430.17
# 002
MPN: 244202
RH BRACKET FOR UPPER FIXING WATER RADIATOR
(valid for: 4700 cc)
from £29.52
from £29.52

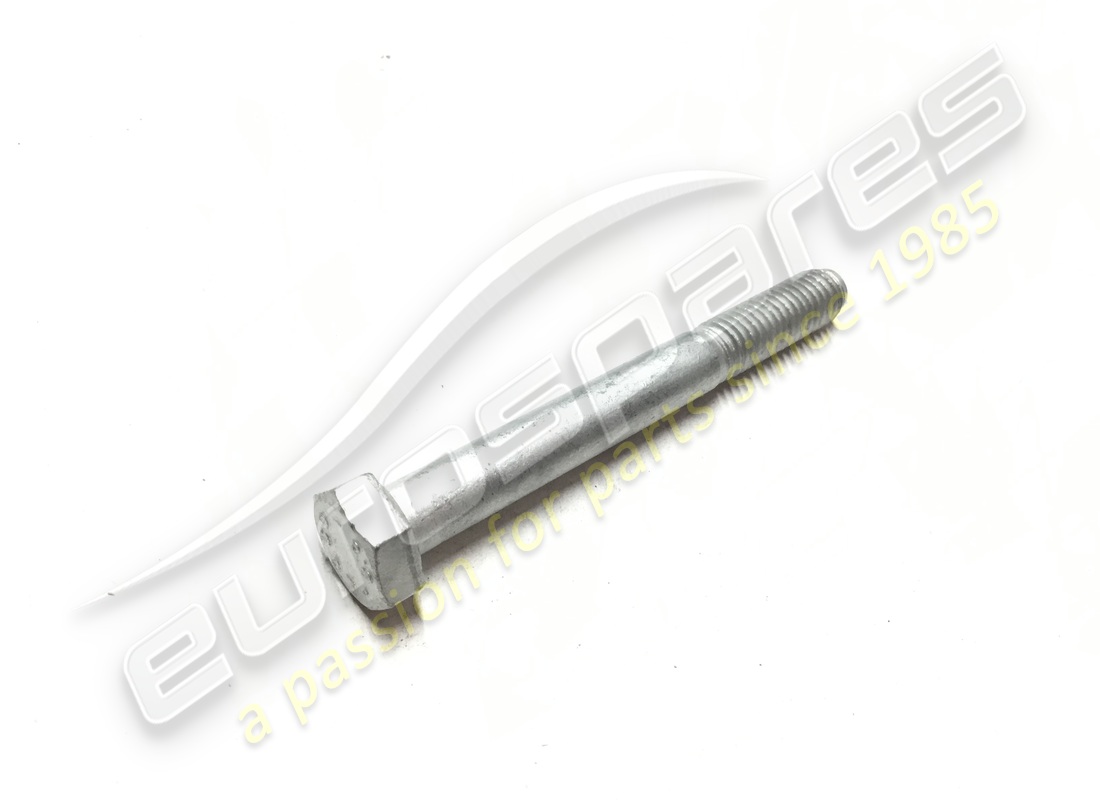

# 003
MPN: 16044624
SCREW
(valid for: 4700 cc)
from £0.53
from £0.53
# 004
MPN: 12646724
WASHER
(valid for: 4700 cc)
from £0.54
from £0.54
# 005
MPN: 12601379
WASHER
(valid for: 4700 cc)
from £0.95
from £0.95
# 006
MPN: 16100814
NUT
(valid for: 4700 cc)
from £0.71
from £0.71
# 007
MPN: 14058511
NUT
(valid for: 4700 cc)
from £0.53
from £0.53
# 008
MPN: 14496524
WASHER [D. 8.40-17 X1.6]
(valid for: 4700 cc)
from £0.53
from £0.53
# 009
MPN: 181114
PAD
(valid for: 4700 cc)
from £7.73
from £7.73
# 010
MPN: 16043021
SCREW
(valid for: 4700 cc)
from £0.53
from £0.53
# 011
MPN: 12601379
WASHER
(valid for: 4700 cc)
from £0.93
from £0.93
# 012
MPN: 14305724
SCREW
(valid for: 4700 cc)
from £0.53
from £0.53
# 013
MPN: 12620474
WASHER
Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.47
from £0.47
# 013
MPN: 14498804
WASHER [D. 6,40-16.3 X1]
(valid for: 4700 cc)
from £0.71
from £0.71
# 014
MPN: 235203
RADIATOR AIR DUCT
(valid for: 4700 cc)
from £199.26
from £199.26
# 015
MPN: 242693
HOOD FANS AIR DUCT
(valid for: AUTOMATIC | 4700 cc)
from £89.99
from £89.99
# 016
MPN: 980139638
PLUG
(valid for: 4700 cc)
from £6.81
from £6.81
# 017
MPN: 67257100
BRACKET
(valid for: 4700 cc)
from £1.08
from £1.08
This part replaces part number 14370774
# 018
MPN: 14304624
SCREW
(valid for: 4700 cc)
from £0.52
from £0.52
# 019
MPN: 12601174
WASHER [D.5.3-11X0.5]
(valid for: 4700 cc)
from £0.53
from £0.53
This part replaces part number 675000100
# 020
MPN: 13577724
WASHER
(valid for: 4700 cc)
from £1.08
from £1.08
# 021
MPN: 244165
LH BRACKET FOR UPPER FIXING WATER RADIATOR
(valid for: 4700 cc)
from £21.56
from £21.56
# 022
MPN: 16044624
SCREW
(valid for: 4700 cc)
from £0.53
from £0.53
# 023
MPN: 12646724
WASHER
(valid for: 4700 cc)
from £0.54
from £0.54
# 024
MPN: 12601379
WASHER
(valid for: 4700 cc)
from £0.95
from £0.95
# 025
MPN: 16100814
NUT
(valid for: 4700 cc)
from £0.71
from £0.71

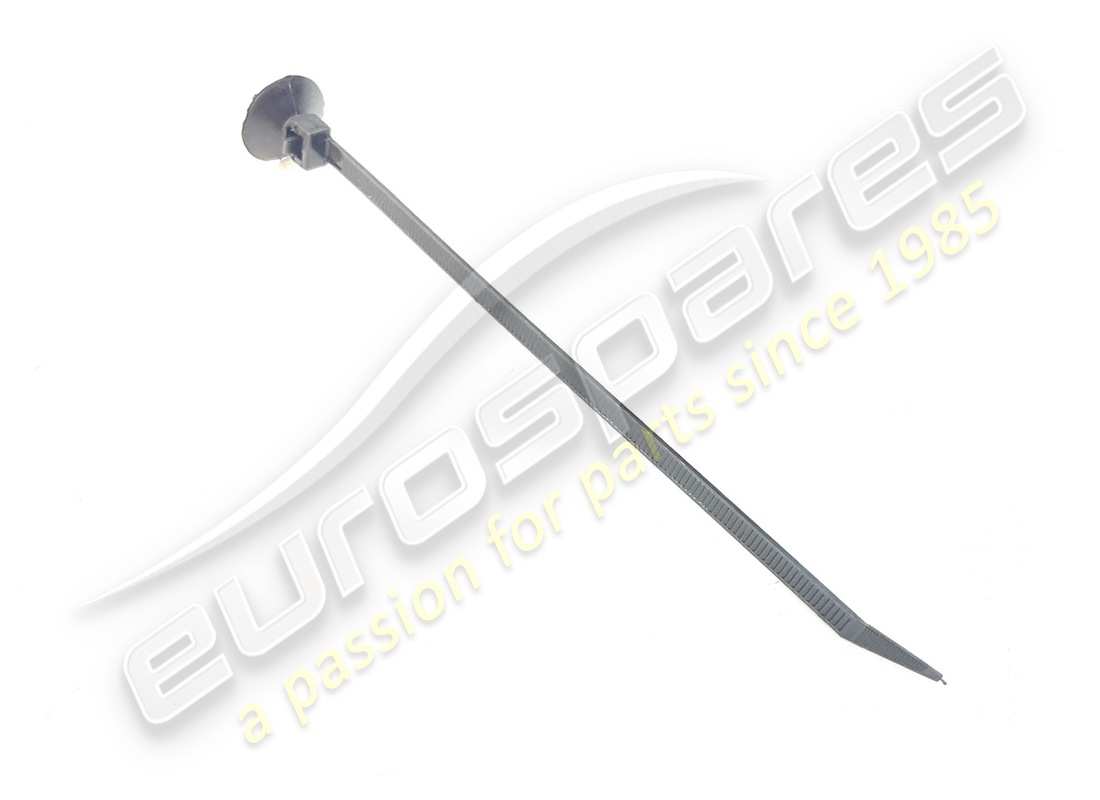

# 026
MPN: 268185
CLAMP
(valid for: 4700 cc)
from £1.08
from £1.08
This part replaces part number 194985
# 027
MPN: 263142
COMPLETE ELECTROFANS SET
Valid from assembly: 55704 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £534.27
from £534.27
This part replaces part number 245769
# 027
MPN: 263143
COMPLETE ELECTROFANS SET
(valid for: AUTOMATIC | 4700 cc)
from £494.59
from £494.59
This part replaces part number 242068
# 028
MPN: 16044824
SCREW
(valid for: 4700 cc)
from £1.43
from £1.43
# 029
MPN: 12646724
WASHER
(valid for: 4700 cc)
from £0.54
from £0.54
# 030
MPN: 197585
BUSH
(valid for: 4700 cc)
from £3.00
from £3.00
# 031
MPN: 197584
RUBBER BUSHING
(valid for: 4700 cc)
from £1.40
from £1.40
# 032
MPN: 263140
RESISTOR
(valid for: 4700 cc)
from £58.39
from £58.39
This part replaces part number 219453
# 033
MPN: 233535
PROFILE
(valid for: 4700 cc)
from £1.55
from £1.55
# 034
MPN: 233735
PROFILE
(valid for: 4700 cc)
from £1.55
from £1.55
# 035
MPN: 15699804
SCREW
(valid for: 4700 cc)
from £0.53
from £0.53
This part replaces part number 15534501
# 036
MPN: 102741
NUT
(valid for: 4700 cc)
from £0.51
from £0.51
This part replaces part number 12575421
# 037
MPN: 12643704
WASHER
(valid for: 4700 cc)
from £1.08
from £1.08
# 038
MPN: 266658
LH LOWER SUPPORT
(valid for: 4700 cc)
from £31.79
from £31.79
This part replaces part number 237574
# 038
MPN: 266659
RH LOWER SUPPORT
(valid for: 4700 cc)
from £31.79
from £31.79
This part replaces part number 237575
# 039
MPN: 16043534
SCREW
(valid for: 4700 cc)
from £0.53
from £0.53
# 040
MPN: 10519624
WASHER [D. 8,15-17 X2]
(valid for: 4700 cc)
from £0.54
from £0.54
# 041
MPN: 12601379
WASHER
(valid for: 4700 cc)
from £0.93
from £0.93
# 042
MPN: 15698304
SCREW
(valid for: AUTOMATIC | 4700 cc)
from £1.55
from £1.55
# 042
MPN: 15699904
SCREW
Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1.47
from £1.47
# 043
MPN: 268185
CLAMP
(valid for: 4700 cc)
from £1.08
from £1.08
This part replaces part number 194985
