Valid from assembly: 0 - 91906.
01.80.2 - pre-catalytic converters and catalytic converters

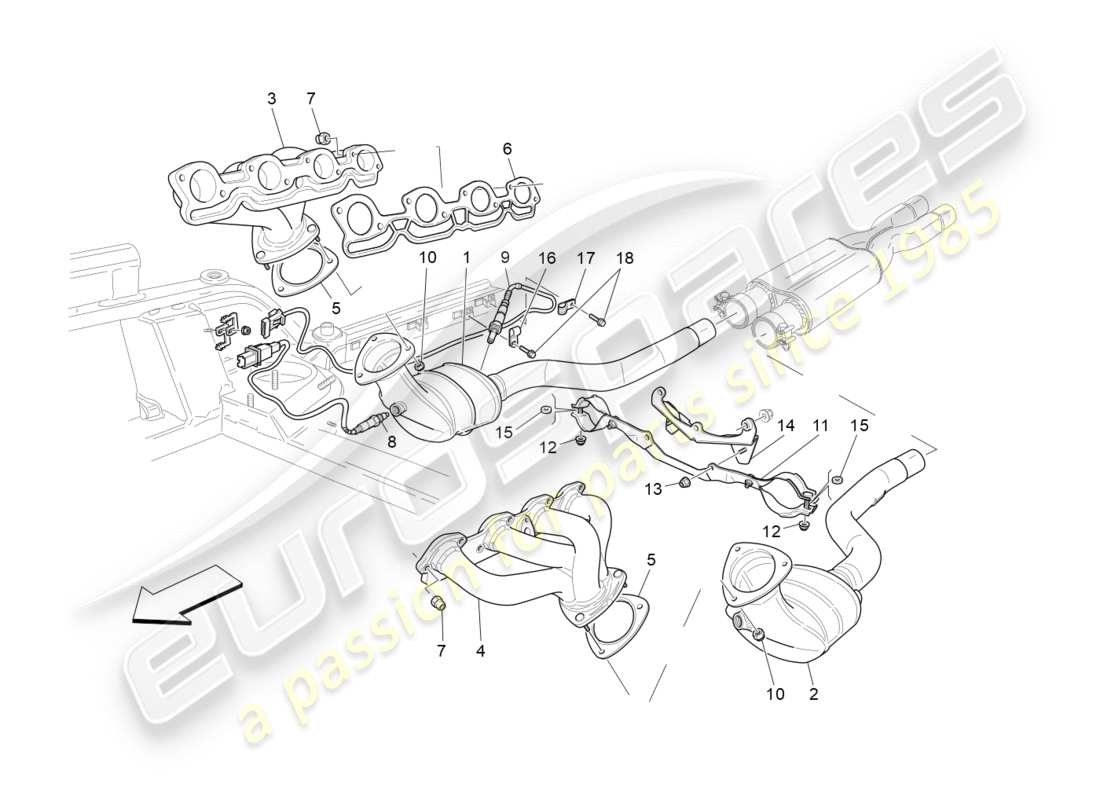

Maserati GranTurismo (2011) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 228587
CPL RH CATALYTIC CONVERTER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1,236.53
from £1,236.53
# 002
MPN: 228588
CPL LH CATALYTIC CONVERTER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1,207.19
from £1,207.19
# 003
MPN: 226272
RH EXHAUST MANIFOLD ASSEMBLY
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £312.32
from £312.32
# 004
MPN: 226273
LH EXHAUST MANIFOLD ASSEMBLY
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £308.56
from £308.56
# 005
MPN: 189211
GASKET
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £7.68
from £7.68
# 006
MPN: 235756
GASKET
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £7.73
from £7.73
This part replaces part number 205144
# 007
MPN: 138392
NUT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.73
from £0.73
# 008
MPN: 182837
FRONT LAMBDA SENSOR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £137.60
from £137.60
# 009
MPN: 180915
REAR LAMBDA SENSOR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £26.25
from £26.25
# 010
MPN: 138392
NUT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.75
from £0.75
# 011
MPN: 225463
CATALYTIC CONVERTERS SUPPORT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £45.80
from £45.80
# 012
MPN: 14058519
NUT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
This part replaces part number 312051309 which we have in stock
# 013
MPN: 14058519
NUT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
This part replaces part number 312051309 which we have in stock
# 014
MPN: 243190
BRACKET
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £30.99
from £30.99
This part replaces part number 235352 - and 1 more. Click to view details
# 015
MPN: 234693
SPACER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £3.32
from £3.32
# 016
MPN: 10418301
BRACKET WITH SHEATH
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 017
MPN: 10441290
BRACKET WITH SHEATH
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.51
from £0.51
# 018
MPN: 13833011
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.49
from £0.49
