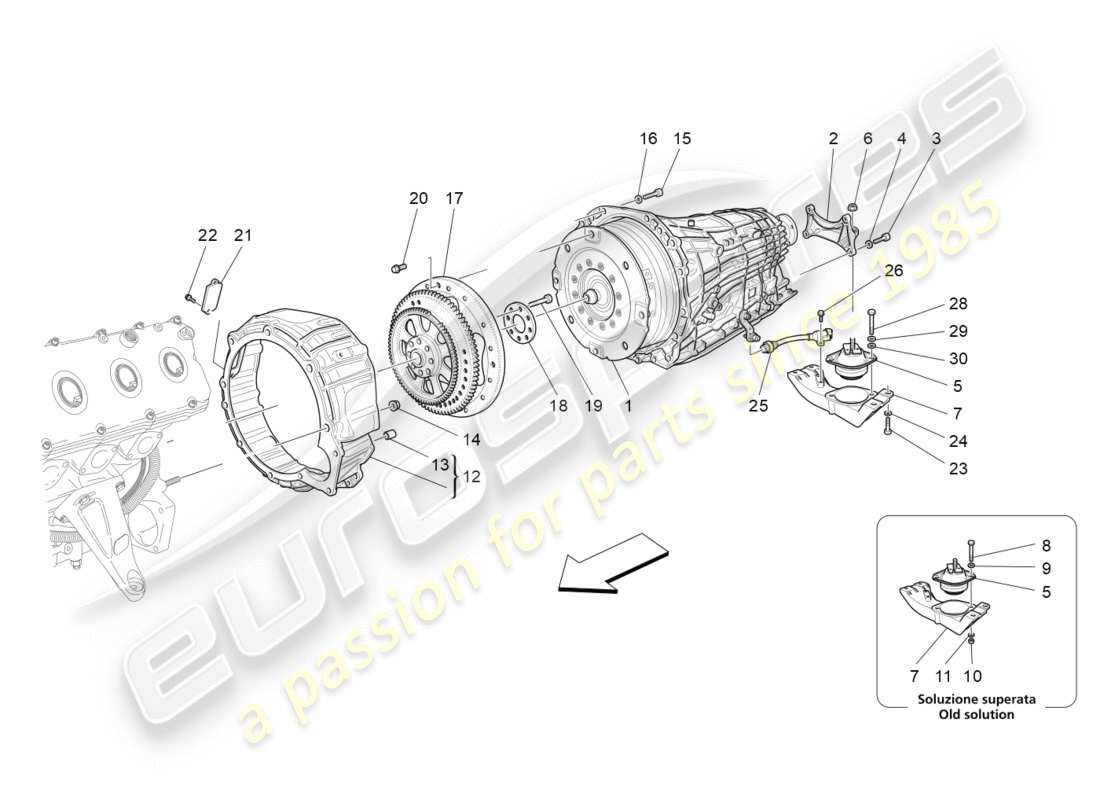

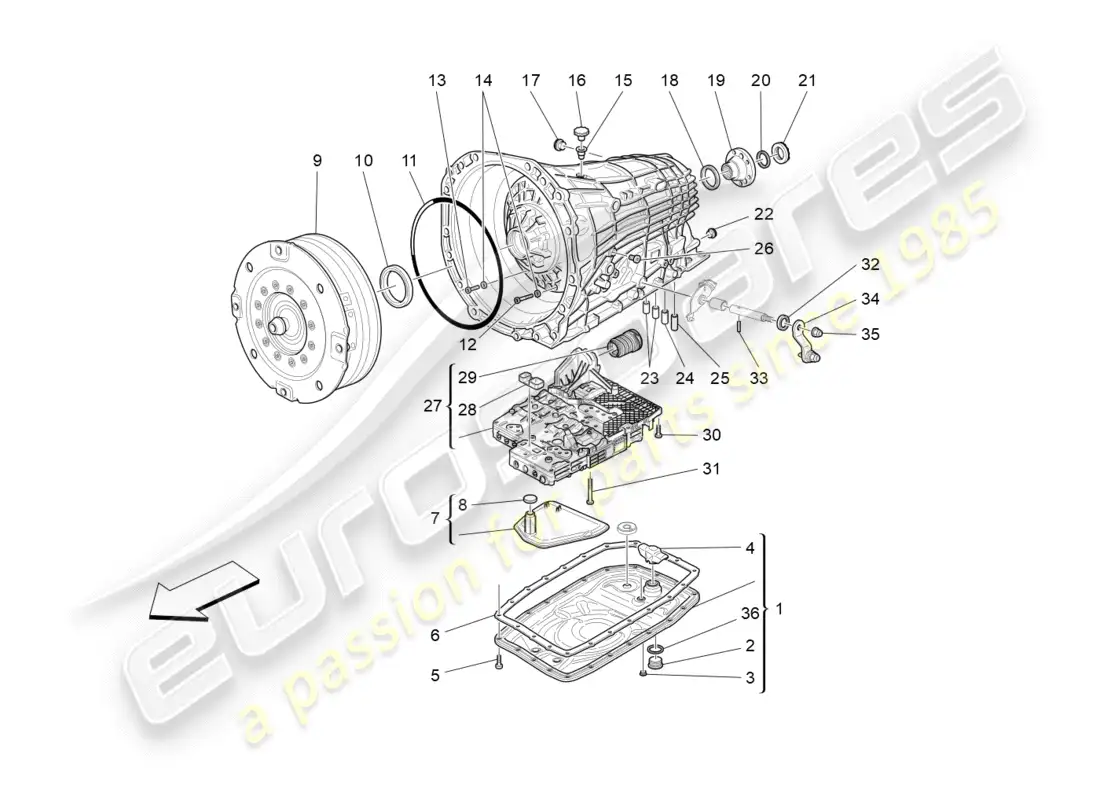

Maserati GranTurismo (2011) GEARBOX HOUSINGS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 262772
AUTOMATIC GEARBOX ASSEMBLY
(valid for: AUTOMATIC)
from £5,070.33
from £5,070.33
This part replaces part number 237273 which we have in stock - and 59 more. Click to view details
# 002
MPN: 220636
GEARBOX MOUNTING BRACKET
(valid for: AUTOMATIC)
from £79.83
from £79.83
# 003
MPN: 14420334
SCREW
(valid for: AUTOMATIC)
from £0.47
from £0.47
# 004
MPN: 12648301
WASHER
(valid for: AUTOMATIC)
from £1.08
from £1.08
# 005
MPN: 196865
FLEXIBLE PAD
(valid for: AUTOMATIC)
from £119.19
from £119.19
# 006
MPN: 177018
NUT
(valid for: AUTOMATIC)
from £0.67
from £0.67
# 007
MPN: 255583
GEARBOX MOUNTING CROSS MEMBER
(valid for: AUTOMATIC)
from £293.41
from £293.41
This part replaces part number 221368
# 008
MPN: 15971334
SCREW [M10X75] #OLD SOLUTION#
(valid for: AUTOMATIC)
from £0.71
from £0.71
# 009
MPN: 11198374
WASHER #OLD SOLUTION#
(valid for: AUTOMATIC)
from £0.47
from £0.47
This part replaces part number 675000618
# 010
MPN: 12164714
NUT #OLD SOLUTION#
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 011
MPN: 12642524
WASHER #OLD SOLUTION#
(valid for: AUTOMATIC)
from £0.54
from £0.54
# 012
MPN: 224282
CONVERTER COVER ASSEMBLY
(valid for: AUTOMATIC)
from £157.27
from £157.27
# 013
MPN: 224280
CENTERING DOWEL
(valid for: AUTOMATIC)
from £35.48
from £35.48
# 014
MPN: 14059421
NUT
(valid for: AUTOMATIC)
from £0.51
from £0.51
This part replaces part number 156462
# 015
MPN: 14420334
SCREW
(valid for: AUTOMATIC)
from £0.47
from £0.47
# 016
MPN: 12638624
WASHER
(valid for: AUTOMATIC)
from £0.47
from £0.47
# 017
MPN: 230427
ENGINE FLYWHEEL ASSEMBLY
(valid for: AUTOMATIC)
from £289.92
from £289.92
# 018
MPN: 215963
FLYWHEEL FASTENING WASHER
(valid for: AUTOMATIC)
from £4.09
from £4.09
This part replaces part number 103876
# 019
MPN: 221912
SCREW
(valid for: AUTOMATIC)
from £5.65
from £5.65
# 020
MPN: 223276
SCREW
(valid for: AUTOMATIC)
from £7.12
from £7.12
# 021
MPN: 230086
LID
(valid for: AUTOMATIC)
from £2.29
from £2.29
# 022
MPN: 11612324
SCREW [TE M 6X 14]
(valid for: AUTOMATIC)
from £1.85
from £1.85
# 023
MPN: 14306424
SCREW [M8X25]
(valid for: AUTOMATIC)
from £0.51
from £0.51
This part replaces part number 14306421
# 024
MPN: 12647124
WASHER
(valid for: AUTOMATIC)
from £1.39
from £1.39
# 025
MPN: 226037
AUTOMATIC GEARBOX WIRING HARNESS
(valid for: AUTOMATIC)
from £97.45
from £97.45
# 026
MPN: 11612324
SCREW [TE M 6X 14]
(valid for: AUTOMATIC)
from £1.85
from £1.85
# 028
MPN: 11288034
SCREW [M10X60]
(valid for: AUTOMATIC)
from £0.71
from £0.71
# 029
MPN: 12642424
WASHER
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 030
MPN: 11198374
WASHER
(valid for: AUTOMATIC)
from £0.47
from £0.47
This part replaces part number 675000618
