03.10.3 - gearbox housings

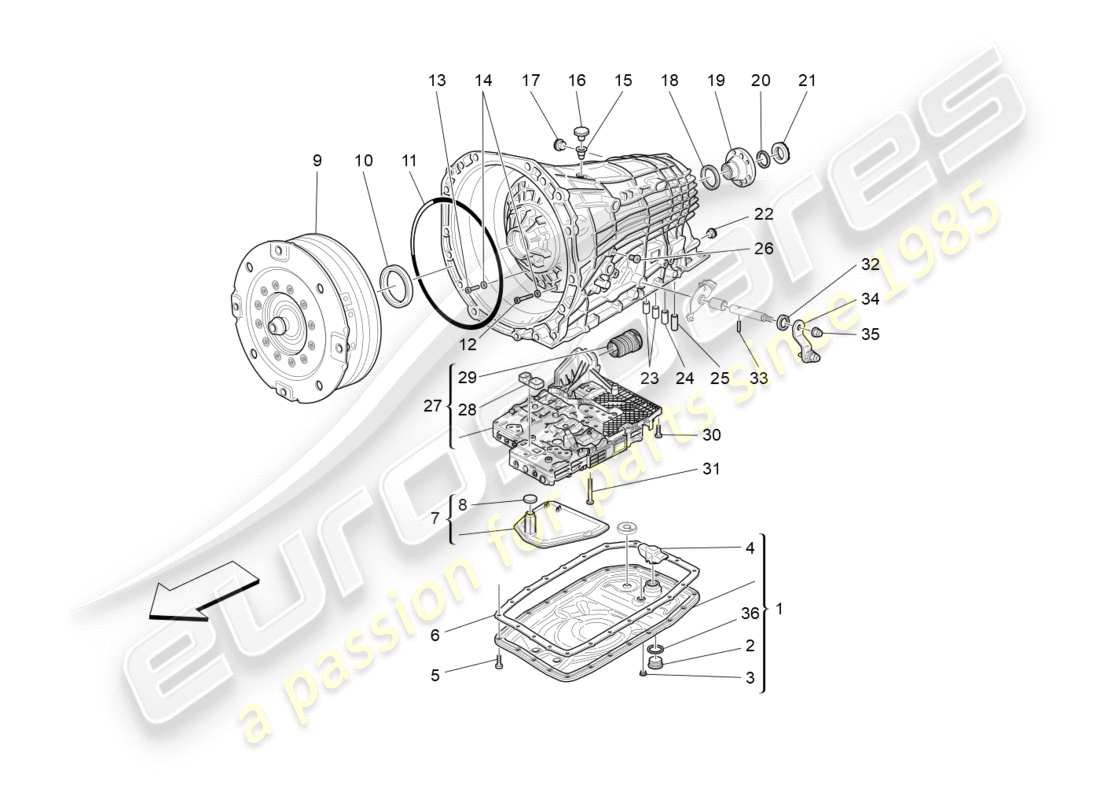

Maserati GranTurismo (2011) GEARBOX HOUSINGS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 223709
OIL SUMP ASSEMBLY
(valid for: AUTOMATIC)
from £243.66
from £243.66
# 002
MPN: 227352
PLUG
(valid for: AUTOMATIC)
from £33.15
from £33.15
# 003
MPN: 227357
PLUG
(valid for: AUTOMATIC)
from £11.44
from £11.44
# 004
MPN: 228051
PLUG
(valid for: AUTOMATIC)
from £3.63
from £3.63
# 005
MPN: 227353
SCREW
(valid for: AUTOMATIC)
from £11.98
from £11.98
# 006
MPN: 227350
GASKET
(valid for: AUTOMATIC)
from £42.44
from £42.44
# 007
MPN: 228048
COMPLETE OIL FILTER
(valid for: AUTOMATIC)
from £107.81
from £107.81
# 008
MPN: 227351
O.R. GASKET
(valid for: AUTOMATIC)
from £5.96
from £5.96
# 009
MPN: 227379
CONVERTER
(valid for: AUTOMATIC)
from £979.09
from £979.09
# 010
MPN: 227374
SEAL RING
(valid for: AUTOMATIC)
from £10.97
from £10.97
# 011
MPN: 227376
O.R. GASKET
(valid for: AUTOMATIC)
from £64.84
from £64.84
# 012
MPN: 227375
SCREW #M 6X50#
(valid for: AUTOMATIC)
from £4.88
from £4.88
# 013
MPN: 228052
SCREW #M 6X20#
(valid for: AUTOMATIC)
from £4.88
from £4.88
# 014
MPN: 227377
WASHER
(valid for: AUTOMATIC)
from £5.65
from £5.65
# 015
MPN: 227369
DELIVERY PIPE
(valid for: AUTOMATIC)
from £6.35
from £6.35
# 016
MPN: 227370
PROTECTIVE SHEATH
(valid for: AUTOMATIC)
from £3.63
from £3.63
# 017
MPN: 227358
PLUG
(valid for: AUTOMATIC)
from £11.82
from £11.82
# 018
MPN: 227360
SEAL RING
(valid for: AUTOMATIC)
from £12.68
from £12.68
# 019
MPN: 223712
OUTPUT FLANGE
(valid for: AUTOMATIC)
from £164.85
from £164.85
# 020
MPN: 227361
SEAL RING
(valid for: AUTOMATIC)
from £9.20
from £9.20
# 021
MPN: 227362
NUT
(valid for: AUTOMATIC)
from £15.46
from £15.46
# 022
MPN: 227363
PLUG
(valid for: AUTOMATIC)
from £5.09
from £5.09
# 023
MPN: 227371
SEALING SLEEVE
(valid for: AUTOMATIC)
from £3.81
from £3.81
# 024
MPN: 227372
SEALING SLEEVE
(valid for: AUTOMATIC)
from £4.65
from £4.65
# 025
MPN: 227373
SEALING SLEEVE
(valid for: AUTOMATIC)
from £5.84
from £5.84
# 026
MPN: 227357
PLUG
(valid for: AUTOMATIC)
from £11.44
from £11.44
# 027
MPN: 262774
MECHATRONIC ASSEMBLY
Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
from £5,890.00
from £5,890.00
This part replaces part number 237277 - and 9 more. Click to view details
# 027
MPN: 262774
MECHATRONIC ASSEMBLY #PROGRAMMABLE#
(valid for: AUTOMATIC)
from £5,890.00
from £5,890.00
This part replaces part number 237277 - and 9 more. Click to view details
# 028
MPN: 227365
ADAPTER
(valid for: AUTOMATIC)
from £5.41
from £5.41
# 029
MPN: 227366
SLIDING GUIDE
(valid for: AUTOMATIC)
from £35.87
from £35.87
# 030
MPN: 227368
SCREW #M 6X20#
(valid for: AUTOMATIC)
from £4.88
from £4.88
# 031
MPN: 227367
SCREW #M 6X59#
(valid for: AUTOMATIC)
from £4.88
from £4.88
# 032
MPN: 227355
SEAL RING
(valid for: AUTOMATIC)
from £9.20
from £9.20
# 033
MPN: 227356
FLEXIBLE PIN
(valid for: AUTOMATIC)
from £4.17
from £4.17
# 034
MPN: 222378
GEARBOX CONTROL LEVER
(valid for: AUTOMATIC)
from £97.23
from £97.23
# 035
MPN: 161473
NUT
(valid for: AUTOMATIC)
from £35.87
from £35.87
# 036
MPN: 247479
GASKET
(valid for: AUTOMATIC)
from £3.24
from £3.24
