03.30.2 - transmission shaft

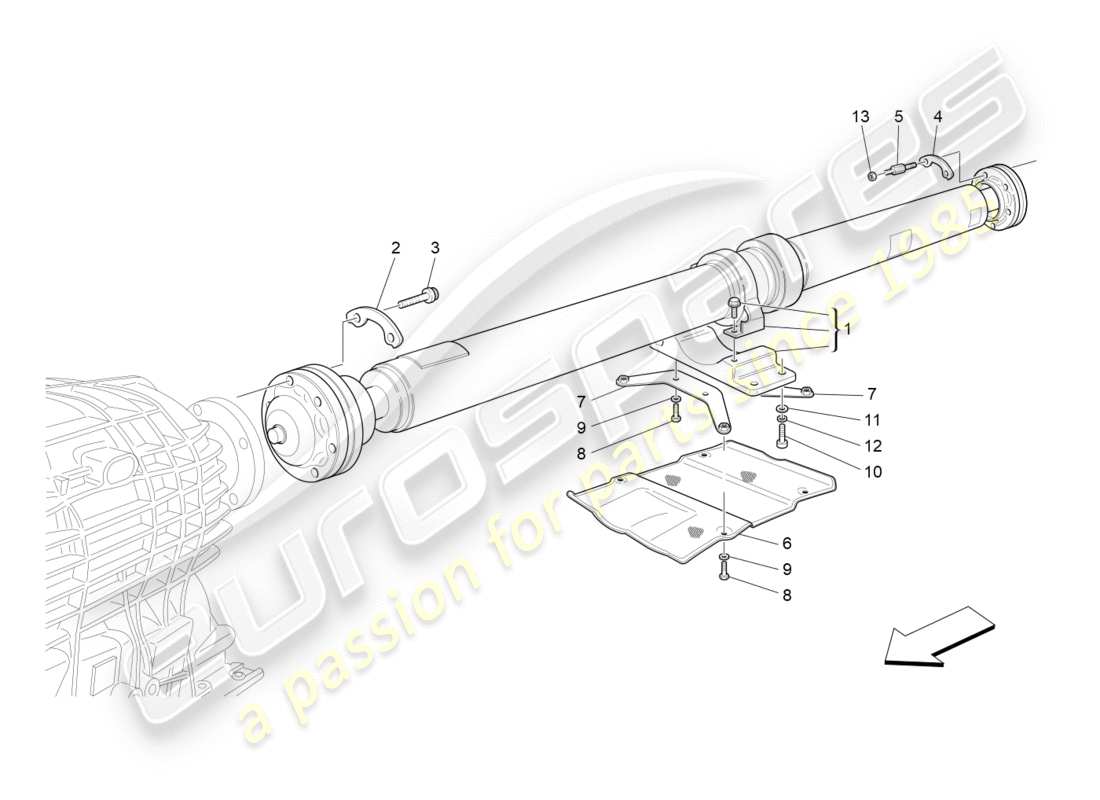

Maserati GranTurismo (2011) TRANSMISSION SHAFT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 246688
DRIVE SHAFT ASSEMBLY
(valid for: AUTOMATIC)
from £1,291.68
from £1,291.68
This part replaces part number 228857 which we have in stock
# 002
MPN: 222679
PLATE
(valid for: AUTOMATIC)
from £2.47
from £2.47
This part replaces part number 149415 which we have in stock
# 003
MPN: 225109
SCREW
(valid for: AUTOMATIC)
from £9.66
from £9.66
# 004
MPN: 222679
PLATE
(valid for: AUTOMATIC)
from £2.47
from £2.47
This part replaces part number 149415 which we have in stock
# 005
MPN: 223760
STUD
(valid for: AUTOMATIC)
from £13.13
from £13.13
# 006
MPN: 229742
PROPELLER SHAFT SHIELD
(valid for: AUTOMATIC)
from £48.27
from £48.27
# 007
MPN: 229654
BRACKET
(valid for: AUTOMATIC)
from £6.42
from £6.42
# 008
MPN: 10902214
SCREW
(valid for: AUTOMATIC)
from £1.08
from £1.08
# 009
MPN: 12643701
WASHER
(valid for: AUTOMATIC)
Supersession
Supersession
# 010
MPN: 10552424
SCREW
(valid for: AUTOMATIC)
from £7.12
from £7.12
# 011
MPN: 12646724
WASHER
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 012
MPN: 12602474
WASHER
(valid for: AUTOMATIC)
from £0.47
from £0.47
# 013
MPN: 235529
NUT (9 GRAMS)
(valid for: AUTOMATIC)
from £3.16
from £3.16
# 013
MPN: 235530
NUT (10.5 GRAMS)
(valid for: AUTOMATIC)
from £3.16
from £3.16
# 013
MPN: 235531
NUT (12 GRAMS)
(valid for: AUTOMATIC)
from £3.55
from £3.55
# 013
MPN: 670005724
NUT (6 GRAMS)
(valid for: AUTOMATIC)
from £4.09
from £4.09
# 013
MPN: 670005725
NUT (3 GRAMS)
(valid for: AUTOMATIC)
from £9.04
from £9.04
# 013
MPN: 670005726
NUT (4.5 GRAMS)
(valid for: AUTOMATIC)
from £4.09
from £4.09
# 013
MPN: 670005727
NUT (1.5 GRAMS)
(valid for: AUTOMATIC)
from £8.50
from £8.50
# 013
MPN: 670005728
NUT (7.5 GRAMS)
(valid for: AUTOMATIC)
from £4.09
from £4.09
