maserati granturismo (2011) gearbox activation hydraulics: power unit parts diagram

03.40.1 - Gearbox Activation Hydraulics: Power Unit

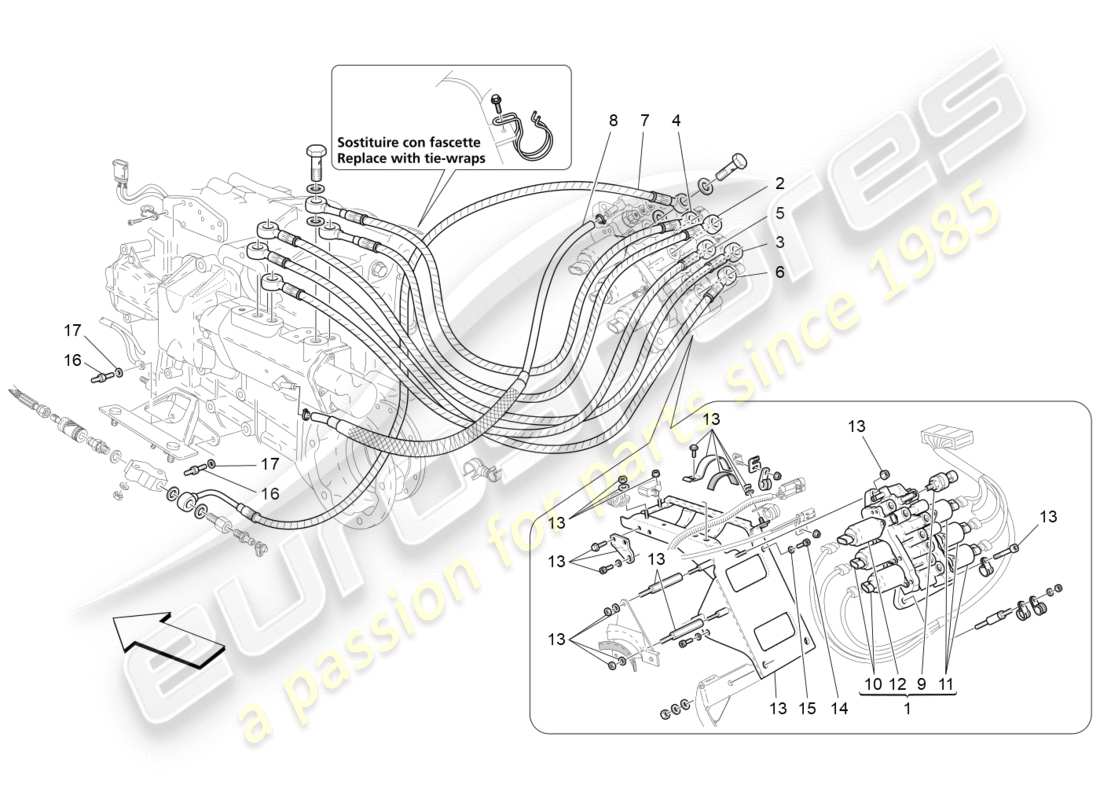

Maserati GranTurismo (2011) GEARBOX ACTIVATION HYDRAULICS: POWER UNIT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 236033
F1 GEARBOX KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £4,904.04
from £4,904.04
This part replaces part number 260534
# 001
MPN: 248412
POWER UNIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £3,290.35
from £3,290.35
# 002
MPN: 260543
COMPLETE EV1 PIPE #COMPLETE OF UNION AND GASKET#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £380.88
from £380.88
# 003
MPN: 260544
COMPLETE EV2 PIPE #COMPLETE OF UNION AND GASKET#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £513.96
from £513.96
# 004
MPN: 260545
COMPLETE EV3 PIPE #COMPLETE OF UNION AND GASKET#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £413.85
from £413.85
# 005
MPN: 260546
COMPLETE EV4 PIPE #COMPLETE OF UNION AND GASKET#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £544.42
from £544.42
# 006
MPN: 260547
COMPLETE EV5 PIPE #COMPLETE OF UNION AND GASKET#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £324.56
from £324.56
# 007
MPN: 260548
COMPLETE EVF PIPE #COMPLETE OF UNION AND GASKET#
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £413.01
from £413.01
# 008
MPN: 980001161
RECYCLE PIPE KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £76.38
from £76.38
This part replaces part number 260538 - and 2 more. Click to view details
# 009
MPN: 980001156
PRESSURE SENSOR
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £192.72
from £192.72
This part replaces part number 190662
# 010
MPN: 248351
PPV VALVE KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £295.74
from £295.74
# 011
MPN: 248352
QPV06 VALVE KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £295.74
from £295.74
# 012
MPN: 248091
QPV02 VALVE KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £296.42
from £296.42
# 013
MPN: 260541
BRACKET KIT
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £1,522.34
from £1,522.34
# 014
MPN: 14302824
SCREW
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.53
from £0.53
# 015
MPN: 12601374
WASHER [D. 8,40-15X 0,8]
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.54
from £0.54
# 016
MPN: 199894
STUD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £8.20
from £8.20
# 017
MPN: 12620474
WASHER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £0.47
from £0.47
