Valid from assembly: 0 - 91906. Not for cars with: Special Edition.
04.10.1 - braking devices on front wheels

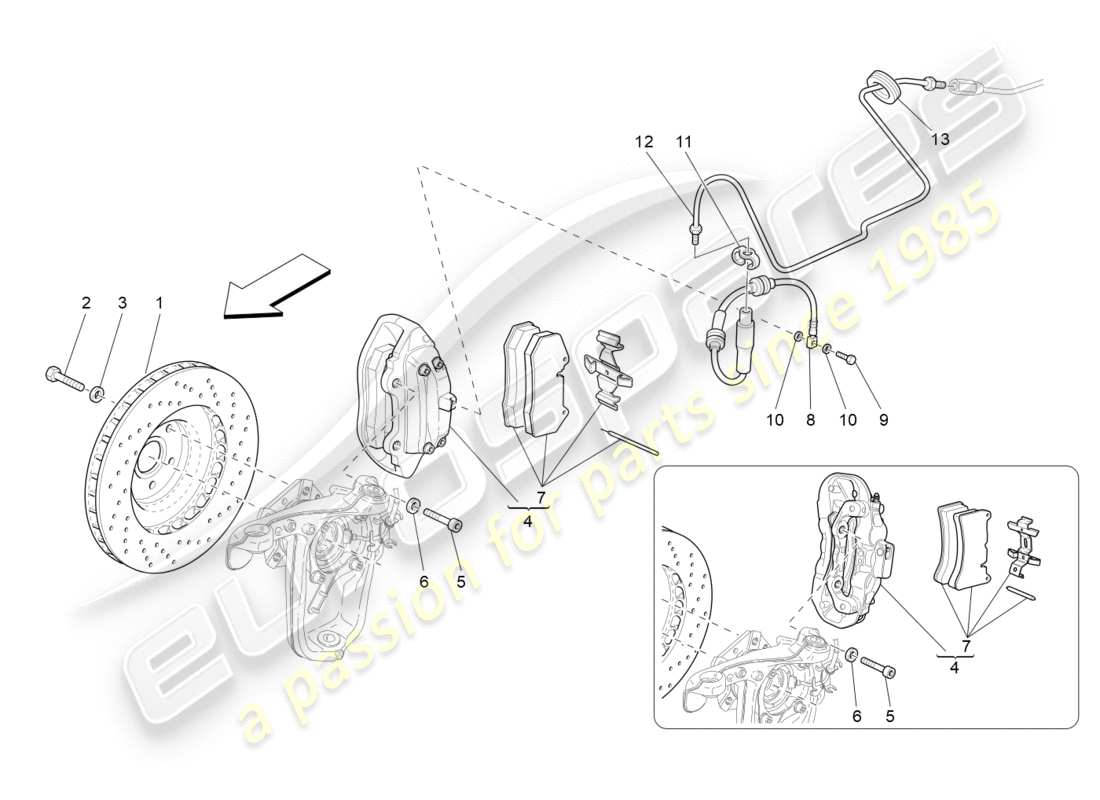

Maserati GranTurismo (2011) BRAKING DEVICES ON FRONT WHEELS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 202016
FRONT BRAKE DISC
(valid for: AUTOMATIC | 4200 cc)
from £195.00
from £195.00
# 001
MPN: 235318
FRONT BRAKE DISC #CROSS-DRILLED#
Valid from assembly: 0 - 66947. (valid for: 4700 cc)
from £433.70
from £433.70
# 001
MPN: 257141
FRONT BRAKE DISC #CROSS-DRILLED AND SLOTTED#
Valid from assembly: 49658 - 66947. Suitable for cars with: MC Sport Line Version. (valid for: 4700 cc)
from £447.38
from £447.38
# 002
MPN: 16043424
SCREW
from £0.51
from £0.51
# 003
MPN: 12601374
WASHER [D. 8,40-15X 0,8]
from £0.53
from £0.53
# 004
MPN: 82102500
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Black coloured caliper. (valid for: 4700 cc)
from £522.82
from £522.82
This part replaces part number 235316 - and 1 more. Click to view details
# 004
MPN: 82102501
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Yellow coloured caliper. (valid for: 4700 cc)
from £1,415.85
from £1,415.85
This part replaces part number 237912
# 004
MPN: 82102502
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Blue coloured caliper. (valid for: 4700 cc)
from £578.09
from £578.09
This part replaces part number 237914 - and 1 more. Click to view details
# 004
MPN: 82102503
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Titanium coloured caliper. (valid for: 4700 cc)
from £1,437.48
from £1,437.48
This part replaces part number 237909
# 004
MPN: 82102504
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Silver coloured caliper. (valid for: 4700 cc)
from £1,263.60
from £1,263.60
This part replaces part number 237905
# 004
MPN: 82102505
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Red coloured caliper. (valid for: 4700 cc)
from £1,040.24
from £1,040.24
This part replaces part number 237903
# 004
MPN: 82102506
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Anodised red coloured caliper. (valid for: 4700 cc)
from £967.60
from £967.60
# 004
MPN: 82102508
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Anodised blue coloured caliper. (valid for: 4700 cc)
from £1,927.46
from £1,927.46
# 004
MPN: 82102600
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Black coloured caliper. (valid for: 4700 cc)
from £1,267.46
from £1,267.46
This part replaces part number 235317
# 004
MPN: 82102601
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Yellow coloured caliper. (valid for: 4700 cc)
from £1,487.72
from £1,487.72
This part replaces part number 237910
# 004
MPN: 82102602
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Blue coloured caliper. (valid for: 4700 cc)
from £1,088.15
from £1,088.15
This part replaces part number 237913
# 004
MPN: 82102603
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Titanium coloured caliper. (valid for: 4700 cc)
from £1,267.46
from £1,267.46
This part replaces part number 237907
# 004
MPN: 82102604
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Silver coloured caliper. (valid for: 4700 cc)
from £667.34
from £667.34
This part replaces part number 237904 - and 1 more. Click to view details
# 004
MPN: 82102605
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Red coloured caliper. (valid for: 4700 cc)
from £1,040.24
from £1,040.24
This part replaces part number 237902
# 004
MPN: 82102606
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Anodised red coloured caliper. (valid for: 4700 cc)
from £967.60
from £967.60
# 004
MPN: 82102608
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Anodised blue coloured caliper. (valid for: 4700 cc)
from £1,893.45
from £1,893.45
# 004
MPN: 82336900
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Black coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £435.88
from £435.88
This part replaces part number 197742 which we have in stock
# 004
MPN: 82336901
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Yellow coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £469.88
from £469.88
This part replaces part number 229988
# 004
MPN: 82336902
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Blue coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £519.35
from £519.35
This part replaces part number 229992
# 004
MPN: 82336903
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Titanium coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £466.80
from £466.80
This part replaces part number 203028 which we have in stock
# 004
MPN: 82336904
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Silver coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £483.03
from £483.03
This part replaces part number 201299 which we have in stock
# 004
MPN: 82336905
RH FRONT CALIPER ASSEMBLY
Suitable for cars with: Red coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £489.21
from £489.21
This part replaces part number 201298 which we have in stock
# 004
MPN: 82337000
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Black coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £250.79
from £250.79
This part replaces part number 197743 - and 1 more. Click to view details
# 004
MPN: 82337001
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Yellow coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £465.26
from £465.26
This part replaces part number 229989
# 004
MPN: 82337002
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Blue coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £522.45
from £522.45
This part replaces part number 229993
# 004
MPN: 82337003
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Titanium coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £483.03
from £483.03
This part replaces part number 203029 which we have in stock
# 004
MPN: 82337004
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Silver coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £481.48
from £481.48
This part replaces part number 201297
# 004
MPN: 82337005
LH FRONT CALIPER ASSEMBLY
Suitable for cars with: Red coloured caliper. (valid for: AUTOMATIC | 4200 cc)
from £469.88
from £469.88
This part replaces part number 201296 which we have in stock
# 005
MPN: 14311734
SCREW
from £19.47
from £19.47
# 006
MPN: 11194174
WASHER
from £1.85
from £1.85
# 007
MPN: 216226
FRONT PADS KIT
(valid for: AUTOMATIC | 4200 cc)
from £405.73
from £405.73
This part replaces part number 206675
# 007
MPN: 980139070
FRONT PADS KIT
(valid for: 4700 cc)
from £272.66
from £272.66
# 008
MPN: 196275
FLEXIBLE PIPE TO FRONT CALIPERS
(valid for: 4700 cc)
from £38.96
from £38.96
This part replaces part number 235819
# 008
MPN: 237865
FLEXIBLE PIPE TO FRONT CALIPERS
(valid for: AUTOMATIC | 4200 cc)
from £139.59
from £139.59
# 009
MPN: 198489
FILLER NECK
from £3.24
from £3.24
This part replaces part number 204175
# 010
MPN: 219553
WASHER
from £9.81
from £9.81
This part replaces part number 198490
# 011
MPN: 228185
CLIP
from £2.85
from £2.85
This part replaces part number 387400301
# 012
MPN: 198082
RIGID PIPE FROMRH CONNECTION TO RH FRONT WHEEL
from £9.10
from £9.10
# 012
MPN: 252239
RIGID PIPE FROM LH CONNECTION TO LH FRONT WHEEL
Valid from assembly: 45529.
from £13.04
from £13.04
# 013
MPN: 10396680
INTERMEDIATE RING
from £1.08
from £1.08
