maserati granturismo (2011) braking control systems parts diagram

04.90.1 - braking control systems

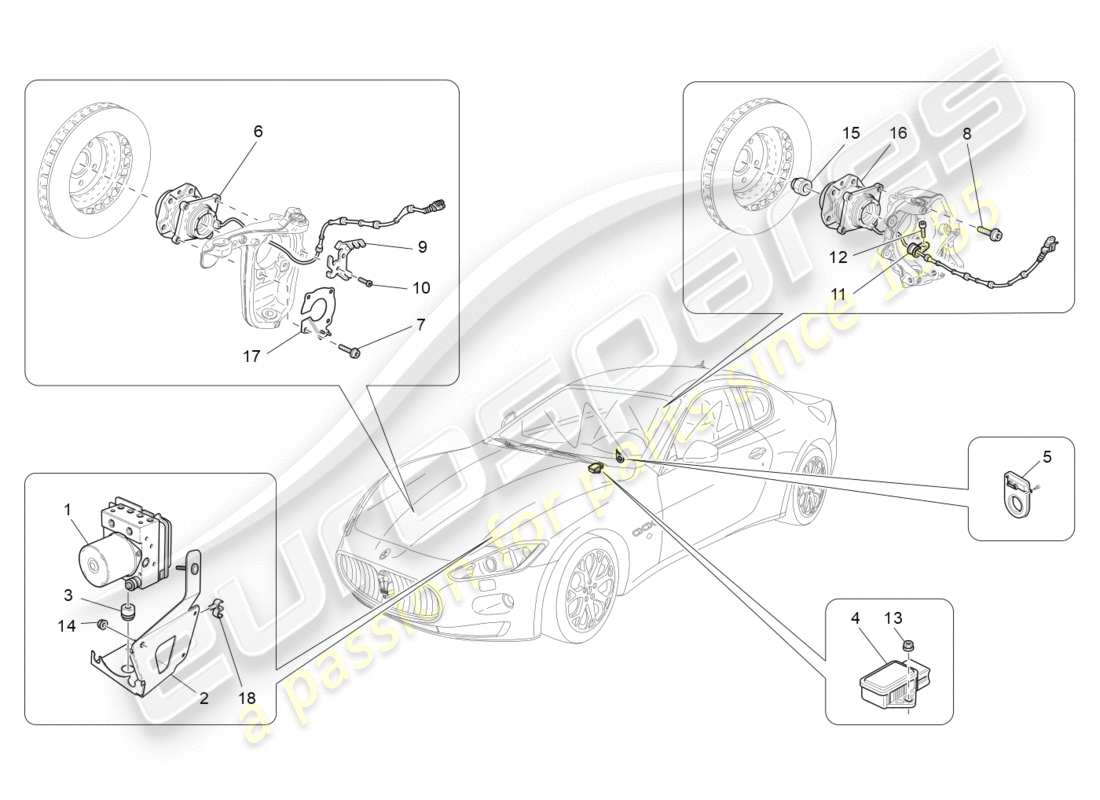

Maserati GranTurismo (2011) BRAKING CONTROL SYSTEMS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 249113
                                  ABS/ASR HYDRAULIC UNIT
                                  Valid from assembly: 42931 - 60847.
                                  from £1,708.11
                                  from £1,708.11
                                  This part replaces part number 257301
                                  # 002
                                  MPN: 207442
                                  ABS/ASR HYDRAULIC GROUP FIXING BRACKET
                                  from £9.19
                                  from £9.19
                                  # 003
                                  MPN: 202555
                                  RUBBER BUSH
                                  from £0.64
                                  from £0.64
                                  # 004
                                  MPN: 317783
                                  YAW SENSOR
                                  from £163.06
                                  from £163.06
                                  This part replaces part number 206070
                                  # 005
                                  MPN: 188171
                                  STEERING ANGLE SENSOR
                                  from £182.61
                                  from £182.61
                                  # 006
                                  MPN: 197118
                                  WHEEL BEARING ASSEMBLY
                                  from £637.19
                                  from £637.19
                                  # 007
                                  MPN: 203135
                                  SCREW
                                  from £1.99
                                  from £1.99
                                  This part replaces part number 191238
                                  # 008
                                  MPN: 190723
                                  SCREW
                                  from £5.26
                                  from £5.26
                                  This part replaces part number 14834021 - and 1 more. Click to view details
                                  # 009
                                  MPN: 197060
                                  LH BRACKET
                                  from £42.96
                                  from £42.96
                                  # 009
                                  MPN: 197061
                                  RH BRACKET
                                  from £15.38
                                  from £15.38
                                  # 010
                                  MPN: 190870
                                  SCREW
                                  from £1.53
                                  from £1.53
                                  This part replaces part number 193737 - and 1 more. Click to view details
                                  # 011
                                  MPN: 10440890
                                  BRACKET WITH SHEATH
                                  from £0.51
                                  from £0.51
                                  # 012
                                  MPN: 190870
                                  SCREW
                                  from £1.53
                                  from £1.53
                                  This part replaces part number 193737 - and 1 more. Click to view details
                                  # 013
                                  MPN: 14040611
                                  NUT
                                  from £0.53
                                  from £0.53
                                  # 014
                                  MPN: 14040614
                                  NUT
                                  from £0.54
                                  from £0.54
                                  # 015
                                  MPN: 203780
                                  NUT
                                  from £14.27
                                  from £14.27
                                  # 016
                                  MPN: 197118
                                  WHEEL BEARING ASSEMBLY #FOR CARS WITH ASSEMBLY NUMBER LOWER THAN 57663 ORDER RING 284616#
                                  Valid from assembly: 0 - 91906.
                                  from £637.19
                                  from £637.19
                                  # 016
                                  MPN: 197118
                                  WHEEL BEARING ASSEMBLY #FOR CARS WITH ASSEMBLY NUMBER LOWER THAN 57920 ORDER RING 284616#
                                  from £637.19
                                  from £637.19
                                  # 017
                                  MPN: 218468
                                  LH FRONT BRACKET
                                  from £31.92
                                  from £31.92
                                  # 017
                                  MPN: 218469
                                  RH FRONT BRACKET
                                  from £32.18
                                  from £32.18
                                  # 018
                                  MPN: 221444
                                  CLIP
                                  from £1.93
                                  from £1.93
