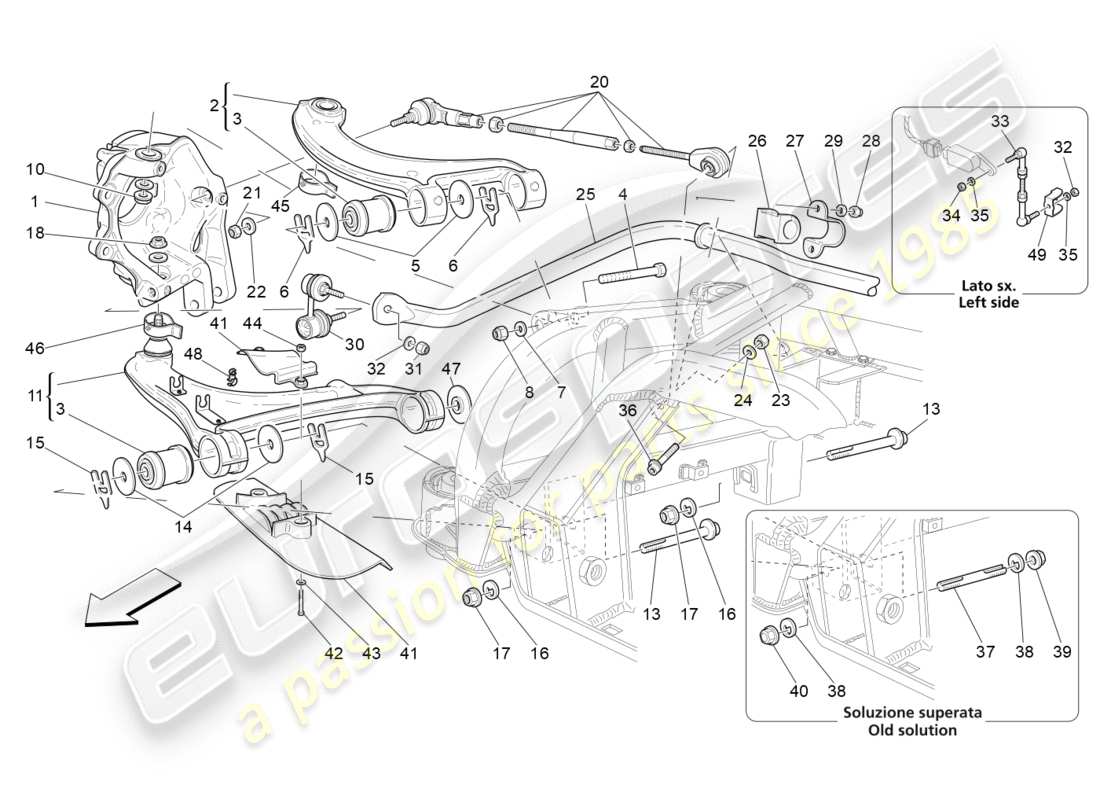

06.20.1 - Rear Suspension
Maserati GranTurismo (2011) REAR SUSPENSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

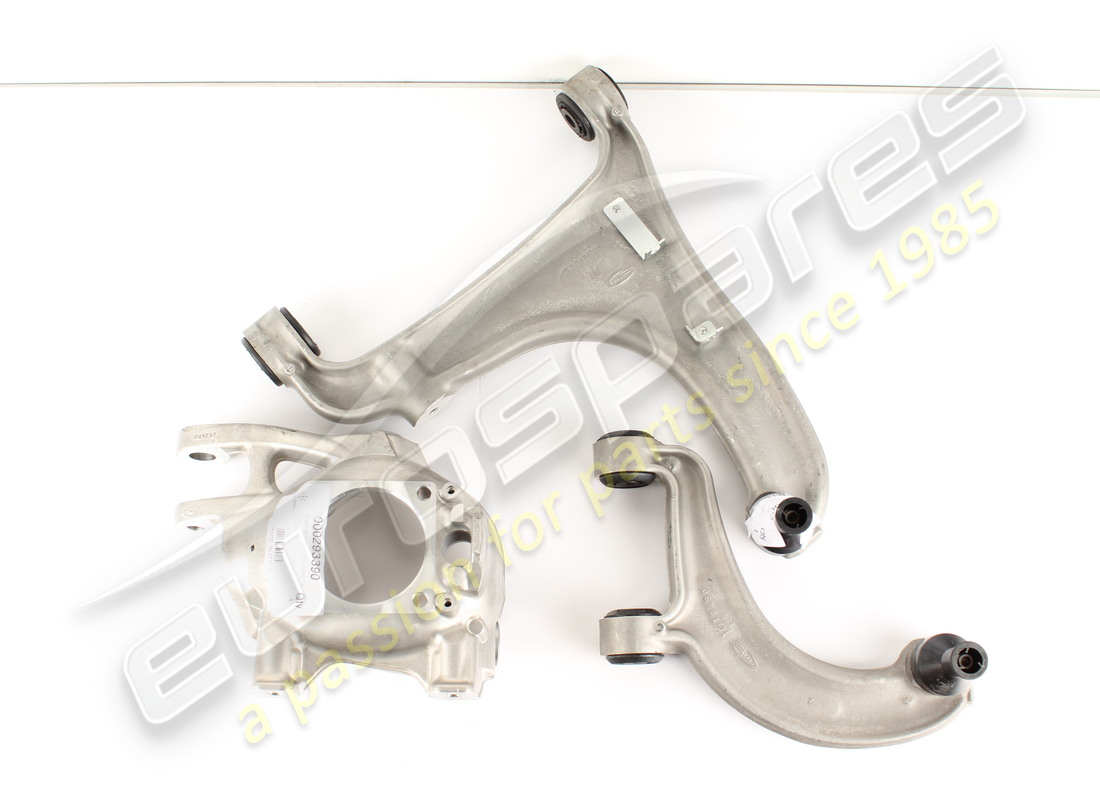

# 000
MPN: 980139916
RH REAR SUSPENSION KIT
Valid from assembly: 43929.
from £816.82
from £816.82
This part replaces part number 900027751
# 000
MPN: 980139918
LH REAR SUSPENSION KIT
Valid from assembly: 43929.
from £126.00
from £126.00
This part replaces part number 900027752 - and 1 more. Click to view details
# 001
-
LH REAR HUB HOLDER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
# 001
-
RH REAR HUB HOLDER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
# 002
-
COMPLETE LH REAR UPPER LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
# 002
-
COMPLETE RH REAR UPPER LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
# 003
MPN: 980139890
REAR SUSPENSION BUSHING KIT
from £179.04
from £179.04
This part replaces part number 208703 - and 1 more. Click to view details
# 004
MPN: 15541334
SCREW
from £3.14
from £3.14
# 005
MPN: 194444
WASHER
from £1.84
from £1.84
# 006
MPN: 198043
SPACER #THICKNESS MM. 0,50#
from £3.14
from £3.14
# 006
MPN: 198044
SPACER #THICKNESS MM. 0,75#
from £3.07
from £3.07
# 006
MPN: 198045
SPACER #THICKNESS MM. 1,00#
from £2.99
from £2.99
# 006
MPN: 198046
SPACER #THICKNESS MM. 1,75#
from £2.37
from £2.37
# 006
MPN: 198047
SPACER #THICKNESS MM. 3,00#
from £2.37
from £2.37
# 007
MPN: 14496721
WASHER
from £0.51
from £0.51
# 008
MPN: 102825
NUT
from £0.51
from £0.51
This part replaces part number 15506221
# 010
MPN: 245240
NUT #VALID FOR CARS WITH SUSPENSIONS KIT 900027751/900027752 (POS.0)#
Valid from assembly: 43929.
from £4.01
from £4.01
# 011
-
COMPLETE LH FRONT REAR LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
# 011
-
COMPLETE RH REAR LOWER LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
# 013
MPN: 260766
ECCENTRIC SCREW
Valid from assembly: 34854.
from £29.04
from £29.04
# 014
MPN: 194445
WASHER
from £2.30
from £2.30
# 015
MPN: 198038
SPACER #THICKNESS MM. 0,50#
from £3.14
from £3.14
# 015
MPN: 198039
SPACER #THICKNESS MM. 0,75#
from £3.07
from £3.07
# 015
MPN: 198040
SPACER #THICKNESS MM. 1,00#
from £2.99
from £2.99
# 015
MPN: 198041
SPACER #THICKNESS MM. 1,75#
from £2.45
from £2.45
# 015
MPN: 198042
SPACER #THICKNESS MM. 3,00#
from £3.29
from £3.29
# 015
MPN: 295191
SPACER #THICKNESS MM. 1,25#
from £2.45
from £2.45
# 016
MPN: 240877
WASHER
Valid from assembly: 34854.
from £3.83
from £3.83
# 017
MPN: 203795
NUT
from £1.48
from £1.48
This part replaces part number 183417 - and 1 more. Click to view details
# 018
MPN: 245240
NUT #VALID FOR CARS WITH SUSPENSIONS KIT 900027751/900027752 (POS.0)#
Valid from assembly: 43929.
from £4.01
from £4.01
# 018
MPN: 247308
NUT FOR SUSPENSION LEVER ADJUSTING #USE ONLY PRETIGHTENING#
from £7.43
from £7.43
# 020
MPN: 276636
TIE-ROD FOR TOE-IN ADJUSTMENT
from £172.87
from £172.87
This part replaces part number 262362
# 021
MPN: 203657
NUT
from £1.30
from £1.30
# 022
MPN: 12626224
WASHER
from £0.54
from £0.54
# 023
MPN: 203657
NUT
from £1.30
from £1.30
# 024
MPN: 12626224
WASHER
from £0.54
from £0.54
# 025
MPN: 216711

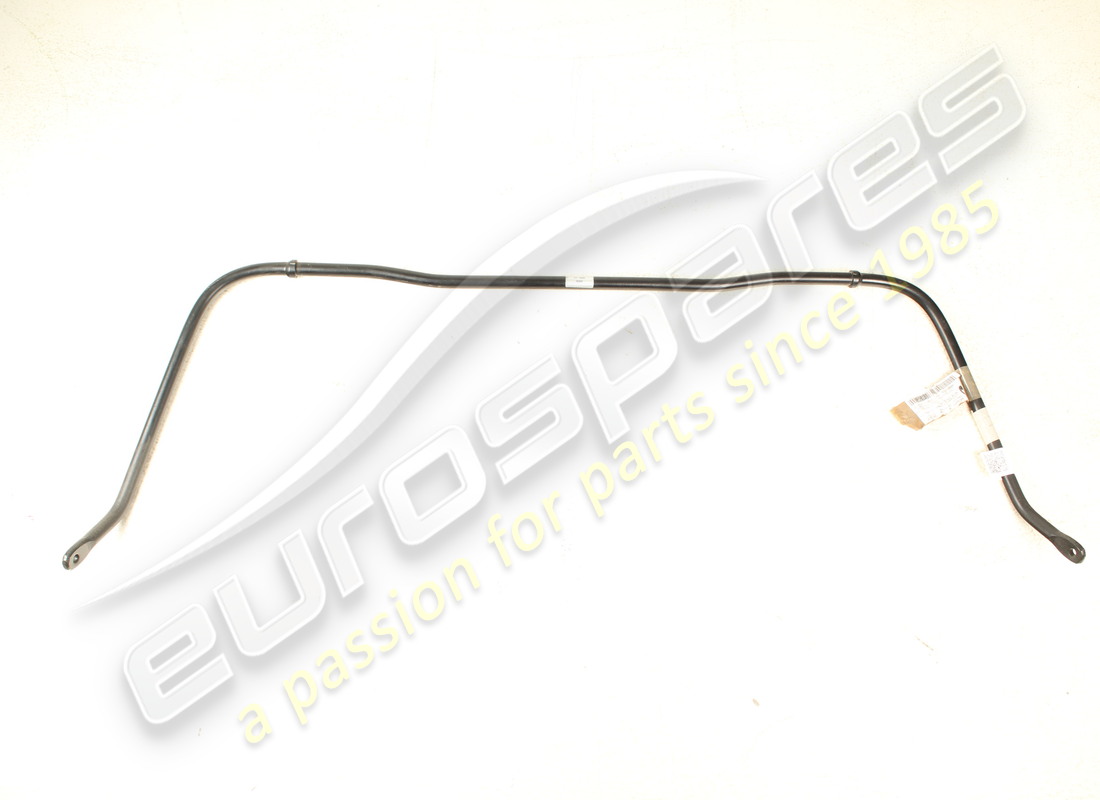

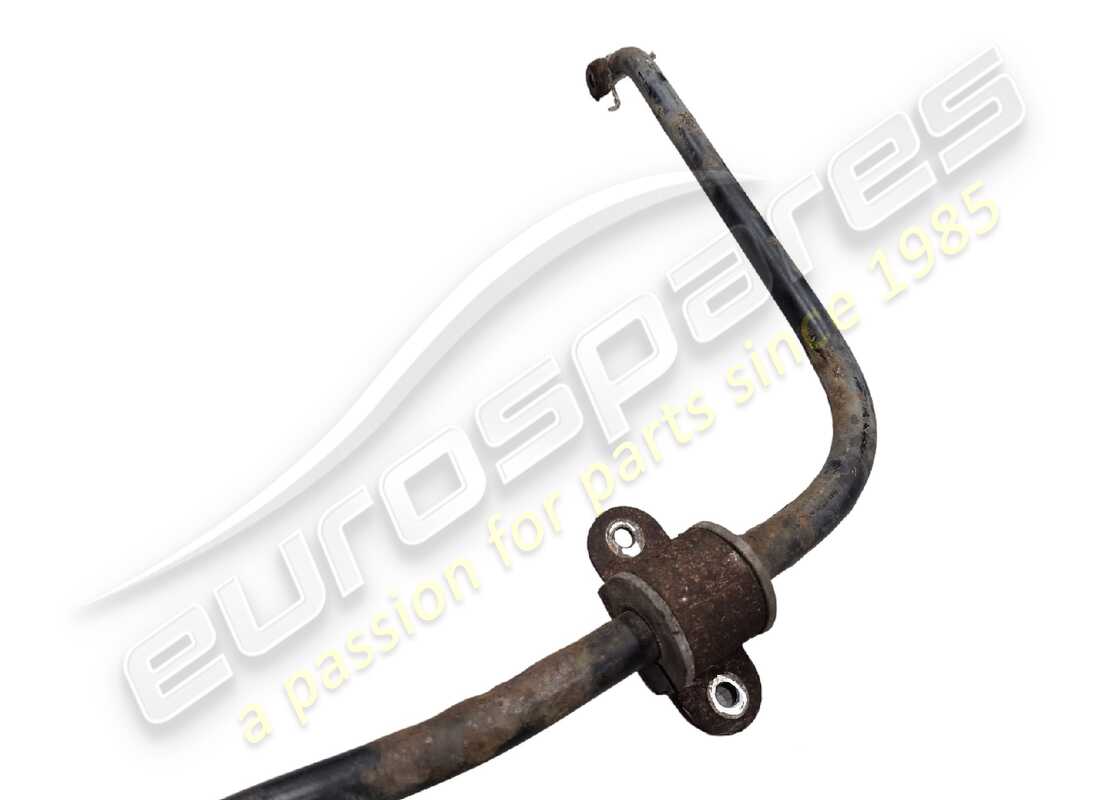

REAR STABILIZER BAR
Valid from assembly: 0 - 91906. Not for cars with: Special Edition, MC Sport Line Version. (valid for: 4700 cc)
from £214.00
from £214.00
# 025
MPN: 216711
REAR STABILIZER BAR
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version. Not for cars with: Special Edition. (valid for: 4700 cc)
from £214.00
from £214.00
# 025
MPN: 216713
REAR STABILIZER BAR
Valid from assembly: 49658 - 91906. Suitable for cars with: MC Sport Line Version. Not for cars with: Special Edition. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £214.00
from £214.00
# 025
MPN: 234656
REAR STABILIZER BAR
Valid from assembly: 0 - 66947. Not for cars with: Special Edition, MC Sport Line Version. (valid for: AUTOMATIC)
from £86.86
from £86.86
# 026
MPN: 200586
BAR BUFFER
Valid from assembly: 49658 - 91906. Suitable for cars with: MC Sport Line Version. Not for cars with: Special Edition. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £5.99
from £5.99
# 026
MPN: 216731
BAR BUFFER
Valid from assembly: 0 - 91906. Not for cars with: Special Edition, MC Sport Line Version. (valid for: 4700 cc)
from £9.01
from £9.01
# 026
MPN: 216731
BAR BUFFER
Valid from assembly: 49658. Suitable for cars with: MC Sport Line Version. Not for cars with: Special Edition. (valid for: 4700 cc)
from £9.01
from £9.01
# 026
MPN: 234674
BAR BUFFER
Valid from assembly: 0 - 66947. Not for cars with: Special Edition, MC Sport Line Version. (valid for: AUTOMATIC)
from £11.19
from £11.19
# 027
MPN: 191221
PAD FASTENING PLATE
from £24.82
from £24.82
# 028
MPN: 104030
NUT
from £0.53
from £0.53
# 029
MPN: 14496524
WASHER [D. 8.40-17 X1.6]
from £0.53
from £0.53
# 030
MPN: 259572
BALL TIE ROD #LH SIDE#
from £51.19
from £51.19
This part replaces part number 162619
# 030
MPN: 259573
BALL TIE ROD #RH SIDE#
from £47.03
from £47.03
This part replaces part number 162620
# 031
MPN: 102742
NUT
from £0.53
from £0.53
# 032
MPN: 12601474
WASHER [D.10,50-21X 1,0]
from £0.54
from £0.54
# 033
MPN: 228958
TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
from £34.43
from £34.43
# 034
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575421
# 035
MPN: 14498824
WASHER [D.6.4-16.3X1]
from £0.54
from £0.54
# 036
MPN: 16324034
SCREW
from £3.14
from £3.14
# 037
MPN: 204008
STUD
from £35.56
from £35.56
# 038
MPN: 240877
WASHER
Valid from assembly: 34854.
from £3.83
from £3.83
# 039
MPN: 203795
NUT
from £1.57
from £1.57
This part replaces part number 183417 - and 1 more. Click to view details
# 040
MPN: 204010
NUT
from £4.06
from £4.06
# 045
MPN: 386600416
JOINT PROTECTION
from £3.60
from £3.60
# 046
MPN: 386600416
JOINT PROTECTION
from £3.60
from £3.60
# 047
MPN: 222203
SPACER
from £13.33
from £13.33
# 048
MPN: 150738
CLIP
from £0.53
from £0.53
# 049
MPN: 231274
BRACKET
from £6.75
from £6.75
-part-diagram-06.21.1.webp "MASERATI GRANTURISMO (2011) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.21.2.webp "MASERATI GRANTURISMO (2011) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.1.webp "MASERATI GRANTURISMO (2011) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.22.2.webp "MASERATI GRANTURISMO (2011) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GRANTURISMO (2011) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.2.webp "MASERATI GRANTURISMO (2011) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.01.1.webp "MASERATI GRANTURISMO (2011) PASSENGER'S AIRBAG-DEACTIVATION PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GRANTURISMO (2011) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GRANTURISMO (2011) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GRANTURISMO (2011) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GRANTURISMO (2011) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.2.webp "MASERATI GRANTURISMO (2011) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI GRANTURISMO (2011) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.2.webp "MASERATI GRANTURISMO (2011) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.4.webp "MASERATI GRANTURISMO (2011) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.31.1.webp "MASERATI GRANTURISMO (2011) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.2.webp "MASERATI GRANTURISMO (2011) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.3.webp "MASERATI GRANTURISMO (2011) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI GRANTURISMO (2011) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GRANTURISMO (2011) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI GRANTURISMO (2011) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI GRANTURISMO (2011) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI GRANTURISMO (2011) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.32.1.webp "MASERATI GRANTURISMO (2011) SIDE LIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI GRANTURISMO (2011) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.1.webp "MASERATI GRANTURISMO (2011) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.2.webp "MASERATI GRANTURISMO (2011) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GRANTURISMO (2011) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GRANTURISMO (2011) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GRANTURISMO (2011) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI GRANTURISMO (2011) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI GRANTURISMO (2011) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI GRANTURISMO (2011) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.51.2.webp "MASERATI GRANTURISMO (2011) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.1.webp "MASERATI GRANTURISMO (2011) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.1.webp "MASERATI GRANTURISMO (2011) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI GRANTURISMO (2011) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.2.webp "MASERATI GRANTURISMO (2011) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI GRANTURISMO (2011) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.5.webp "MASERATI GRANTURISMO (2011) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.6.webp "MASERATI GRANTURISMO (2011) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI GRANTURISMO (2011) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GRANTURISMO (2011) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.2.webp "MASERATI GRANTURISMO (2011) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI GRANTURISMO (2011) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GRANTURISMO (2011) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GRANTURISMO (2011) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.2.webp "MASERATI GRANTURISMO (2011) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.3.webp "MASERATI GRANTURISMO (2011) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.4.webp "MASERATI GRANTURISMO (2011) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GRANTURISMO (2011) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GRANTURISMO (2011) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GRANTURISMO (2011) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GRANTURISMO (2011) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI GRANTURISMO (2011) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI GRANTURISMO (2011) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GRANTURISMO (2011) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GRANTURISMO (2011) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI GRANTURISMO (2011) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GRANTURISMO (2011) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.3.webp "MASERATI GRANTURISMO (2011) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI GRANTURISMO (2011) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GRANTURISMO (2011) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GRANTURISMO (2011) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GRANTURISMO (2011) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GRANTURISMO (2011) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GRANTURISMO (2011) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GRANTURISMO (2011) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GRANTURISMO (2011) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.31.1.webp "MASERATI GRANTURISMO (2011) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI GRANTURISMO (2011) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI GRANTURISMO (2011) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.1.webp "MASERATI GRANTURISMO (2011) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GRANTURISMO (2011) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.1.webp "MASERATI GRANTURISMO (2011) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GRANTURISMO (2011) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GRANTURISMO (2011) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GRANTURISMO (2011) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.1.webp "MASERATI GRANTURISMO (2011) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.2.webp "MASERATI GRANTURISMO (2011) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI GRANTURISMO (2011) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI GRANTURISMO (2011) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GRANTURISMO (2011) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GRANTURISMO (2011) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.2.webp "MASERATI GRANTURISMO (2011) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.3.webp "MASERATI GRANTURISMO (2011) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GRANTURISMO (2011) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI GRANTURISMO (2011) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.63.2.webp "MASERATI GRANTURISMO (2011) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-01.00.1.webp "MASERATI GRANTURISMO (2011) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.1.webp "MASERATI GRANTURISMO (2011) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GRANTURISMO (2011) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GRANTURISMO (2011) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.1.webp "MASERATI GRANTURISMO (2011) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.1.webp "MASERATI GRANTURISMO (2011) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.1.webp "MASERATI GRANTURISMO (2011) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.1.webp "MASERATI GRANTURISMO (2011) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.1.webp "MASERATI GRANTURISMO (2011) TIMING PARTS DIAGRAM")
-part-diagram-01.25.1.webp "MASERATI GRANTURISMO (2011) VALVES PARTS DIAGRAM")
-part-diagram-01.40.1.webp "MASERATI GRANTURISMO (2011) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GRANTURISMO (2011) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GRANTURISMO (2011) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.1.webp "MASERATI GRANTURISMO (2011) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.1.webp "MASERATI GRANTURISMO (2011) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.2.webp "MASERATI GRANTURISMO (2011) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GRANTURISMO (2011) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.1.webp "MASERATI GRANTURISMO (2011) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.1.webp "MASERATI GRANTURISMO (2011) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.1.webp "MASERATI GRANTURISMO (2011) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GRANTURISMO (2011) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.1.webp "MASERATI GRANTURISMO (2011) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GRANTURISMO (2011) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.2.webp "MASERATI GRANTURISMO (2011) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.1.webp "MASERATI GRANTURISMO (2011) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.2.webp "MASERATI GRANTURISMO (2011) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.1.webp "MASERATI GRANTURISMO (2011) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.1.webp "MASERATI GRANTURISMO (2011) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GRANTURISMO (2011) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GRANTURISMO (2011) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GRANTURISMO (2011) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.2.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.5.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.1.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-02.01.1.webp "MASERATI GRANTURISMO (2011) ACTUATION HYDRAULIC PARTS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.11.1.webp "MASERATI GRANTURISMO (2011) FRICTION DISCS AND HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.90.1.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CLUTCH CONTROL FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.01.1.webp "MASERATI GRANTURISMO (2011) DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GRANTURISMO (2011) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.1.webp "MASERATI GRANTURISMO (2011) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GRANTURISMO (2011) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GRANTURISMO (2011) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.11.1.webp "MASERATI GRANTURISMO (2011) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.12.1.webp "MASERATI GRANTURISMO (2011) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.13.1.webp "MASERATI GRANTURISMO (2011) INNER CONTROLS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GRANTURISMO (2011) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.21.2.webp "MASERATI GRANTURISMO (2011) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.30.1.webp "MASERATI GRANTURISMO (2011) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GRANTURISMO (2011) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.40.1.webp "MASERATI GRANTURISMO (2011) GEARBOX ACTIVATION HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-part-diagram-03.41.1.webp "MASERATI GRANTURISMO (2011) GEARBOX ACTIVATION HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-part-diagram-03.50.1.webp "MASERATI GRANTURISMO (2011) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GRANTURISMO (2011) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.90.1.webp "MASERATI GRANTURISMO (2011) ELECTRONIC CONTROL (GEARBOX) PARTS DIAGRAM")
-part-diagram-04.00.1.webp "MASERATI GRANTURISMO (2011) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.1.webp "MASERATI GRANTURISMO (2011) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI GRANTURISMO (2011) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI GRANTURISMO (2011) LINES PARTS DIAGRAM")
-part-diagram-04.20.2.webp "MASERATI GRANTURISMO (2011) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI GRANTURISMO (2011) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI GRANTURISMO (2011) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GRANTURISMO (2011) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.1.webp "MASERATI GRANTURISMO (2011) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GRANTURISMO (2011) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GRANTURISMO (2011) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GRANTURISMO (2011) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GRANTURISMO (2011) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.2.webp "MASERATI GRANTURISMO (2011) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GRANTURISMO (2011) FRONT UNDERCHASSIS PARTS DIAGRAM")
