Maserati GranTurismo (2011) ENERGY GENERATION AND ACCUMULATION Parts Diagram

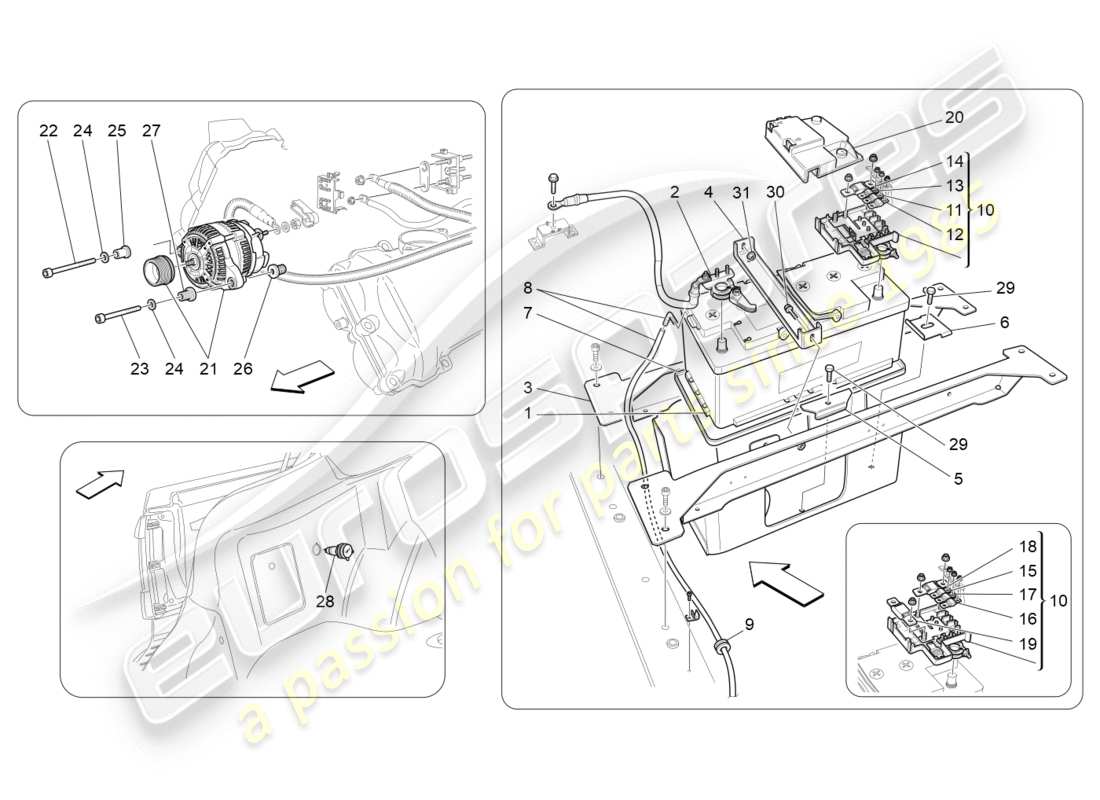

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 673000080
                                            BATTERY 100AH-850A
                                            from £187.35
                                            from £187.35
                                            # 001
                                            MPN: 673001440
                                            95AH-850A BATTERY
                                            from £201.97
                                            from £201.97
                                            This part replaces part number 980145391
                                            # 002
                                            MPN: 233262
                                            BATTERY NEGATIVE POLE CABLE
                                            from £27.19
                                            from £27.19
                                            # 003
                                            MPN: 229262
                                            BATTERY SUPPORT BRACKET
                                            from £159.70
                                            from £159.70
                                            # 004
                                            MPN: 233457
                                            UPPER BRACKET
                                            from £10.42
                                            from £10.42
                                            # 005
                                            MPN: 242554
                                            BRACKET
                                            from £7.13
                                            from £7.13
                                            This part replaces part number 233458
                                            # 006
                                            MPN: 233459
                                            BRACKET
                                            from £5.91
                                            from £5.91

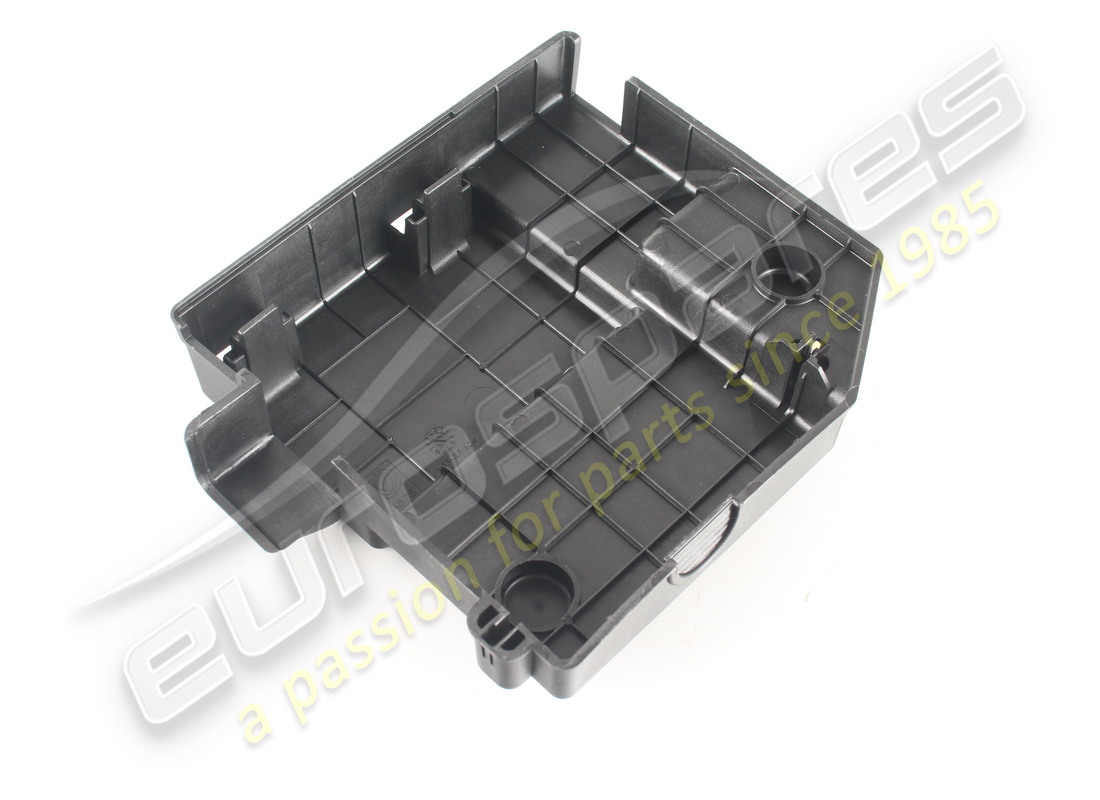

                                            # 007
                                            MPN: 191182
                                            PAN
                                            from £19.10
                                            from £19.10
                                            # 008
                                            MPN: 235789
                                            BATTERY VENT PIPE
                                            from £3.91
                                            from £3.91
                                            # 009
                                            MPN: 31211302
                                            CABLE BUSHING
                                            from £1.07
                                            from £1.07
                                            # 010
                                            MPN: 199904
                                            BATTERY ECU
                                            Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                            from £62.20
                                            from £62.20
                                            # 010
                                            MPN: 241744
                                            BATTERY ECU
                                            (valid for: AUTOMATIC)
                                            from £102.20
                                            from £102.20
                                            # 010
                                            MPN: 241744
                                            BATTERY ECU
                                            Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                            from £102.20
                                            from £102.20
                                            # 011
                                            MPN: 980139504
                                            MIDI FUSE 50A
                                            Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                            from £11.00
                                            from £11.00
                                            # 012
                                            MPN: 980139505
                                            MIDI FUSE 70A
                                            Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                            from £6.38
                                            from £6.38
                                            # 013
                                            MPN: 980139749
                                            MIDI FUSE 100A
                                            Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                            from £11.14
                                            from £11.14
                                            This part replaces part number 980139506 which we have in stock
                                            # 014
                                            MPN: 198704
                                            MEGA FUSE
                                            Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                            from £11.88
                                            from £11.88
                                            # 015
                                            MPN: 980139747
                                            MIDI FUSE 30A
                                            (valid for: AUTOMATIC)
                                            from £9.23
                                            from £9.23
                                            # 015
                                            MPN: 980139747
                                            MIDI FUSE 30A
                                            Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                            from £9.23
                                            from £9.23
                                            # 016
                                            MPN: 980139748
                                            MIDI FUSE 40A
                                            (valid for: AUTOMATIC)
                                            from £9.64
                                            from £9.64
                                            # 016
                                            MPN: 980139748
                                            MIDI FUSE 40A
                                            Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                            from £9.64
                                            from £9.64
                                            # 017
                                            MPN: 980139505
                                            MIDI FUSE 70A
                                            (valid for: AUTOMATIC)
                                            from £6.38
                                            from £6.38
                                            # 017
                                            MPN: 980139505
                                            MIDI FUSE 70A
                                            Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                            from £6.38
                                            from £6.38
                                            # 018
                                            MPN: 980139952
                                            MIDI FUSE 100A
                                            (valid for: AUTOMATIC)
                                            from £17.39
                                            from £17.39
                                            # 018
                                            MPN: 980139952
                                            MIDI FUSE 100A
                                            Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                            from £17.39
                                            from £17.39
                                            # 019
                                            MPN: 198704
                                            MEGA FUSE
                                            (valid for: AUTOMATIC)
                                            from £11.88
                                            from £11.88
                                            # 019
                                            MPN: 198704
                                            MEGA FUSE
                                            Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                            from £11.88
                                            from £11.88
                                            # 020
                                            MPN: 199905
                                            COVER
                                            from £4.99
                                            from £4.99
                                            # 021
                                            MPN: 325296
                                            ALTERNATOR
                                            from £416.66
                                            from £416.66
                                            This part replaces part number 263830
                                            # 022
                                            MPN: 14308724
                                            SCREW
                                            from £2.62
                                            from £2.62
                                            # 023
                                            MPN: 203135
                                            SCREW
                                            from £2.16
                                            from £2.16
                                            This part replaces part number 191238
                                            # 024
                                            MPN: 10569474
                                            WASHER
                                            from £0.54
                                            from £0.54
                                            # 025
                                            MPN: 209278
                                            BUSHING
                                            from £7.85
                                            from £7.85
                                            # 026
                                            MPN: 214319
                                            THREADED BUSHING
                                            from £93.16
                                            from £93.16
                                            # 027
                                            MPN: 214320
                                            THREADED BUSHING
                                            from £93.16
                                            from £93.16
                                            # 028
                                            MPN: 203506
                                            POWER SOCKET
                                            from £15.82
                                            from £15.82
                                            # 029
                                            MPN: 16287024
                                            SCREW [M8X16]
                                            from £0.53
                                            from £0.53
                                            # 030
                                            MPN: 10902124
                                            SCREW
                                            from £0.53
                                            from £0.53
                                            # 031
                                            MPN: 14059211
                                            NUT [M6]
                                            from £0.54
                                            from £0.54
                                            This part replaces part number 675000181
