001 - crankcase

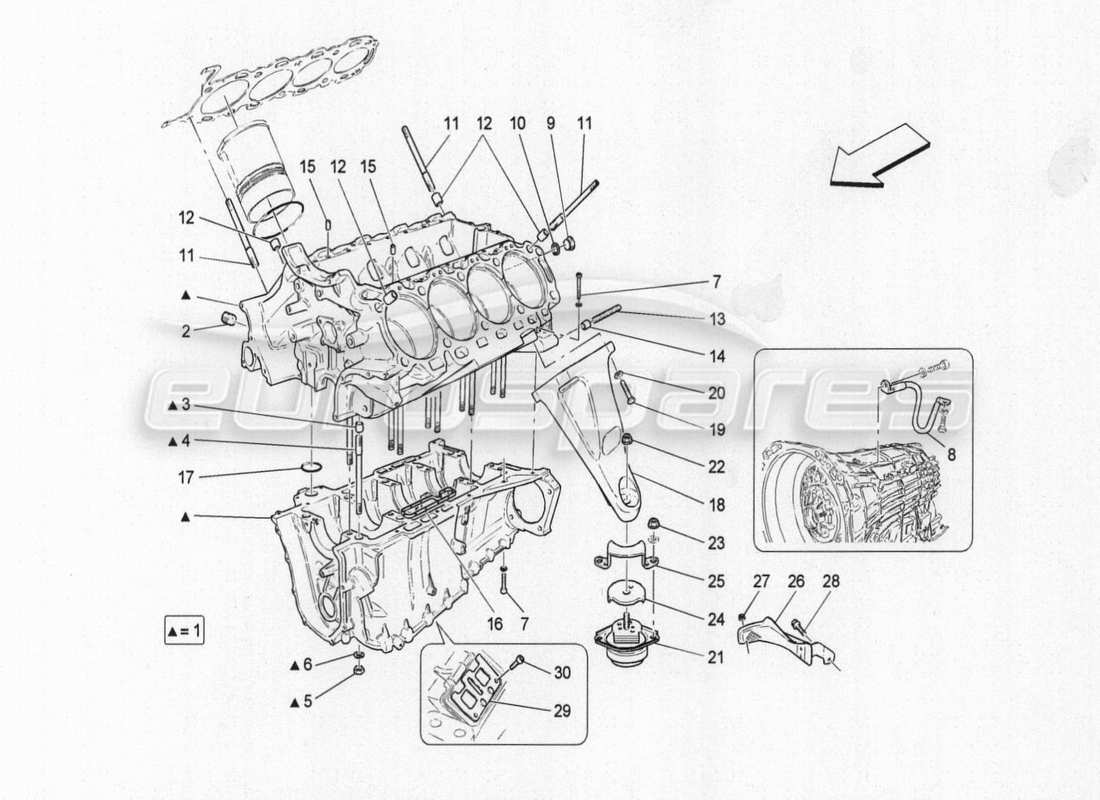

Maserati GranTurismo Special Edition Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
-
OVERHAULED ENGINE OPEN A PHD TICKET AND COMMUNICATE THE VELVET VIN BEFORE ORDERING THE CODE
# 000
MPN: 739024000
MOTORE COMPLETO NELL' ORTIINE SPECIFICARLI IL CODICE RICAMBI DELL' ALBERO MOTORE
from £23,314.92
from £23,314.92
# 000
MPN: 980020011
HEAD OVERHAUL GASKET KIT
from £527.27
from £527.27
# 000
MPN: 980020013
CRANKCASE OVERHAUL GASKET KIT
from £192.99
from £192.99
# 001
MPN: 230733
BASAMENTO COMPLETO
from £2,691.05
from £2,691.05
# 001
MPN: 239671
BASAMENTO COMPLETO
from £2,594.57
from £2,594.57
# 001
MPN: 281182
COMPLETE BASE IN THE ORDER SPECIFY THE SERIAL NO. OF THE CAR
from £2,777.81
from £2,777.81
# 001
MPN: 281182
COMPLETE BASE IN THE ORDER SPECIFY THE SERIAL NO. OF THE VEHICLE
from £2,777.81
from £2,777.81
# 001
MPN: 281187
COMPLETE BASE IN THE ORDER SPECIFY THE SERIAL NO. OF THE CAR
from £2,961.08
from £2,961.08
# 001
MPN: 281187
COMPLETE BASE IN THE ORDER SPECIFY THE NR OF MATTI COLA DELTA VEHICLE
from £2,961.08
from £2,961.08
# 002
MPN: 14325340
TAPPO FILETTATO
from £4.32
from £4.32
# 003
MPN: 176421
GRANO CENTRAGGIO
from £2.38
from £2.38
# 004
MPN: 217794
STUD TOTAL LENGTH 154MM
from £5.83
from £5.83
This part replaces part number 194756 which we have in stock
# 004
MPN: 217796
STUD TOTAL LENGTH 139MM
from £5.70
from £5.70
This part replaces part number 215652
# 004
MPN: 219800
STUD TOTAL LENGTH 184MM
from £12.81
from £12.81
# 004
MPN: 219801
STUD TOTAL LENGTH 169MM
from £9.97
from £9.97
# 005
MPN: 133988
DADO M10
from £0.47
from £0.47
This part replaces part number 186261
# 006
MPN: 178348
ROSETTA D.10.2-20X2.4
from £0.47
from £0.47
# 007
MPN: 231620
VITE M6X25 M 6X25
from £0.49
from £0.49
# 007
MPN: 231623
VITE M6X40 M 6X40
from £0.47
from £0.47
# 008
MPN: 268886
ENGINE-FRAME GROUND BRAID
from £38.70
from £38.70
This part replaces part number 200164
# 009
MPN: 10275011
TAPPO FILETTATO
from £1.17
from £1.17
This part replaces part number 178959
# 009
MPN: 10304511
TAPPO FILETTATO
from £1.57
from £1.57
# 010
MPN: 10263460
Guarnizione
from £0.53
from £0.53
This part replaces part number 10261830
# 011
MPN: 217968
PRIGIONIERO
from £8.63
from £8.63
# 012
MPN: 185360
GRANO CENTRAGGIO
from £1.46
from £1.46
# 013
MPN: 13546934
STUD STEM LENGTH 50MM
from £0.97
from £0.97
# 013
MPN: 13547034
STUD STEM LENGTH 55MM
from £1.94
from £1.94
# 013
MPN: 13547134
STUD STEM LENGTH 60MM
from £1.20
from £1.20
# 014
MPN: 100052
GRANO CENTRAGGIO
from £1.32
from £1.32
# 015
MPN: 177727
GRANO CENTRAGGIO
from £1.46
from £1.46
# 016
MPN: 231335
Guarnizione
from £7.53
from £7.53
# 016
MPN: 236143
Guarnizione
from £4.40
from £4.40
# 017
MPN: 140071
O-RING.
from £0.51
from £0.51
# 018
MPN: 222316
RIGHT PAW. ENGINE TO FRAME FIXING
from £58.92
from £58.92
# 018
MPN: 222317
LEFT PAW. ENGINE TO FRAME FIXING
from £58.92
from £58.92
# 019
MPN: 11306934
VITE TE M 10X1,25X30
from £0.47
from £0.47
# 020
MPN: 11190574
ROSETTA D.10.5-20X2.3
from £0.53
from £0.53
# 021
MPN: 226572
ELASTIC ENGINE SUPPORT BUFFER
USE 269817
from £276.09
from £276.09
# 022
MPN: 177018
NUT
from £0.68
from £0.68
# 023
MPN: 177764
NUT
from £0.53
from £0.53
# 024
MPN: 196590
UPPER ENGINE BUFFER SHEET
from £5.30
from £5.30
# 025
MPN: 198530
BUFFER EXCURSION LIMITING BRACKET
from £91.85
from £91.85
# 026
MPN: 227525
RIGHT ENGINE BUFFER HEAT SHELTER.
from £46.88
from £46.88
# 026
MPN: 227526
RIPARO CALORE TAMPONE MOTORE SX.
from £42.21
from £42.21
# 027
MPN: 14058411
DADO M6
from £0.53
from £0.53
# 028
MPN: 13833011
VITE
from £0.53
from £0.53
# 029
MPN: 255138
ASSIEME VALVOLA BLOW-BY
from £55.09
from £55.09
# 030
MPN: 14303123
VITE
from £0.53
from £0.53
This part replaces part number 14303124 which we have in stock
