008 - timing

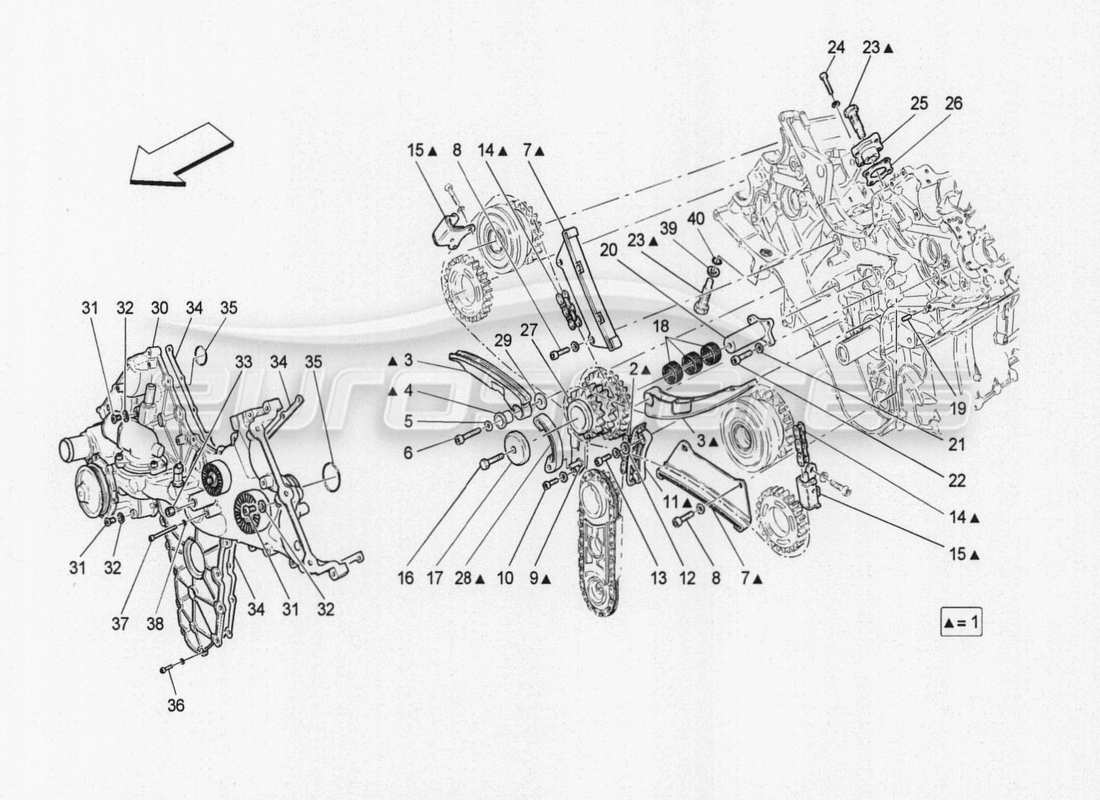

Maserati GranTurismo Special Edition Timing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 231104
TIMING CONTROL AND OIL PUMP ASSEMBLY NO LONGER AVAILABLE AT THE OFFICE, CHECK STOCK ON SITE
Supersession
Supersession
# 001
MPN: 319940
TIMING CONTROL AND OIL PUMP ASSEMBLY
from £756.37
from £756.37
This part replaces part number 231104
# 002
MPN: 175286
RETURN CHAIN
from £24.41
from £24.41
# 003
MPN: 186184
PATTINO MOBILE
from £69.92
from £69.92
# 004
MPN: 175303
BOCCOLA
from £13.19
from £13.19
# 005
MPN: 10569373
ROSETTA
from £0.47
from £0.47
# 006
MPN: 14306424
VITE M8X25
from £0.47
from £0.47
This part replaces part number 14306421
# 007
MPN: 186185
Pattino Fisso
from £33.00
from £33.00
# 008
MPN: 231627
VITE
from £0.53
from £0.53
# 009
MPN: 186159
SKATE SUPPORT
Requires P/N 196683
from £16.33
from £16.33
# 010
MPN: 231616
VITE M6X14
from £0.47
from £0.47
# 011
MPN: 186181
FIXED SKATE NO LONGER AVAILABLE AT THE HEADQUARTERS, CHECK THE STOCK ON SITE
Supersession
Supersession
# 011
MPN: 306094
Pattino Fisso
from £21.65
from £21.65
This part replaces part number 186181
# 012
MPN: 11197774
ROSETTA D.6.4-12X2.4
from £0.54
from £0.54
# 013
MPN: 231619
VITE M6X22
from £0.47
from £0.47
# 014
MPN: 193616
CATENA COMANDO DISTRIBUZIONE
from £53.34
from £53.34
# 015
MPN: 222310
TOP FIXED SKATE
from £18.25
from £18.25
# 016
MPN: 16043124
VITE
from £0.26
from £0.26
# 017
MPN: 194262
SPALLAMENTO
from £10.51
from £10.51
# 018
MPN: 175282
GABBIA A RULLINI
from £2.85
from £2.85
# 019
MPN: 175611
GRANO CENTRAGGIO
from £0.85
from £0.85
# 020
MPN: 212970
SUPPORTO
from £44.78
from £44.78
# 021
MPN: 11181574
ROSETTA D .5.3-11X0.9
from £0.53
from £0.53
# 022
MPN: 14304224
VITE
from £0.47
from £0.47
# 023
MPN: 230652
HYDRAULIC TENSIONER
from £54.08
from £54.08
# 024
MPN: 231619
VITE M6X22
from £0.47
from £0.47
# 025
MPN: 190060
BUSH FOR TENSIONER
from £11.19
from £11.19
# 026
MPN: 185854
GASKET NO LONGER AVAILABLE AT THE OFFICE, CHECK STOCK ON SITE
Supersession
Supersession
# 026
MPN: 323282
Guarnizione
from £1.17
from £1.17
This part replaces part number 247147
# 027
MPN: 193565
RUOTA DENTATA RINVIO
from £59.30
from £59.30
# 028
MPN: 196683
CHAIN TENSIONER SLIDE
from £24.43
from £24.43
# 029
MPN: 175306
SPALLAMENTO
from £2.08
from £2.08
# 030
MPN: 248715
COPERCHIO ANTERIORE BASAMENTO CPL.
from £738.96
from £738.96
# 030
MPN: 271246
COPERCHIO ANTERIORE BASAMENTO CPL.
from £868.16
from £868.16
# 031
MPN: 224314
TAPPO
from £4.10
from £4.10
# 032
MPN: 10296160
Guarnizione
from £0.47
from £0.47
# 033
MPN: 14324940
TAPPO FILETTATO
from £1.08
from £1.08
# 034
MPN: 322502
FRONT COVER GASKET
from £29.40
from £29.40
This part replaces part number 238690
# 034
MPN: 322502
FRONT COVER GASKET
from £29.40
from £29.40
This part replaces part number 238690
# 035
MPN: 183010
O-RING.
from £0.85
from £0.85
# 036
MPN: 231617
VITE M6X18 M 6X16
from £0.47
from £0.47
# 036
MPN: 231622
VITE M6X35 M6X35
from £0.47
from £0.47
# 037
MPN: 10589624
VITE M 6X80
from £0.47
from £0.47
# 038
MPN: 11197774
ROSETTA D.6.4-12X2.4
from £0.54
from £0.54
# 039
MPN: 190171
DISTANZIALE
from £3.29
from £3.29
# 040
MPN: 192069
O-RING.
from £0.47
from £0.47
