010 - intake manifold and throttle body

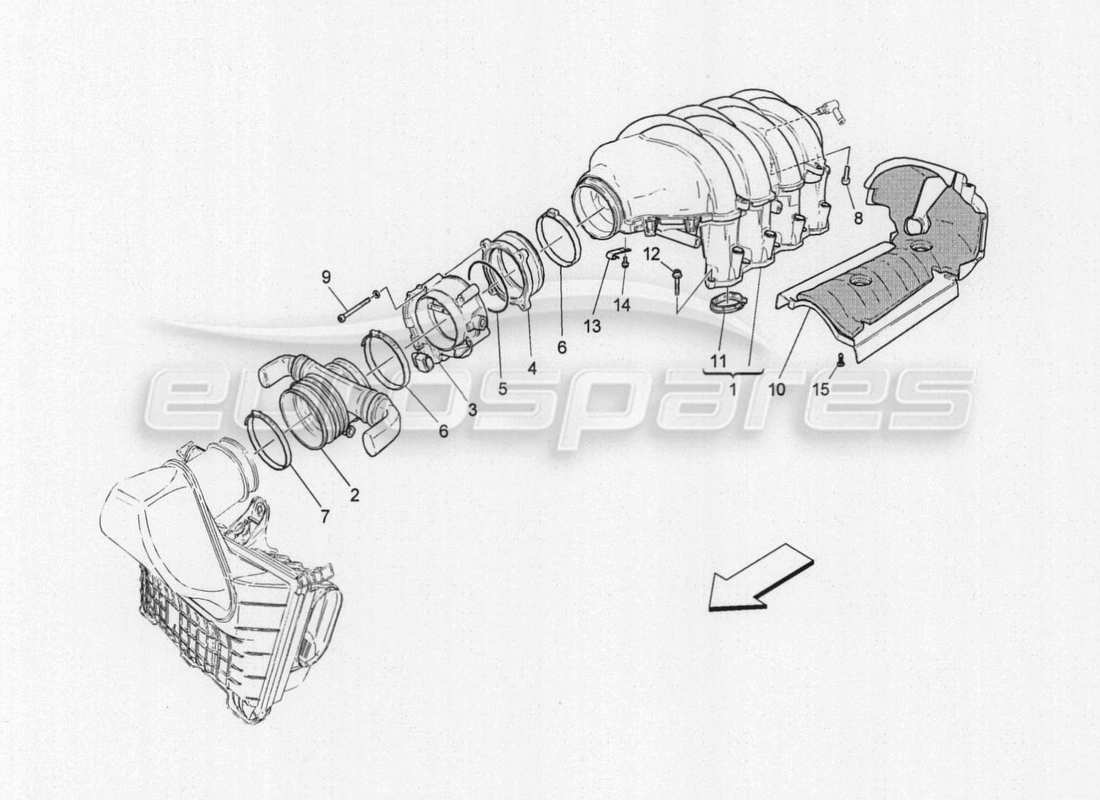

Maserati GranTurismo Special Edition Intake Manifold And Throttle Body Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 231732
COLLETTORE DI ASPIRAZIONE
Supersession
Supersession
This part replaces part number 224758
# 001
MPN: 252163
COLLETTORE DI ASPIRAZIONE
from £578.68
from £578.68
This part replaces part number 231732
# 002
MPN: 215889
MANICOTTO SUL DEBIMETRO
from £75.86
from £75.86
# 003
MPN: 179912
CORPO FARFALLATO
from £332.21
from £332.21
# 004
MPN: 240262
DISTANZIALE
from £33.73
from £33.73
This part replaces part number 195206
# 005
MPN: 150302
GUARNIZIONE O.R. VALE PER VETTURE CON DISTANZIALE (POS. 4) COD. 195206
from £1.41
from £1.41
# 006
MPN: 190151

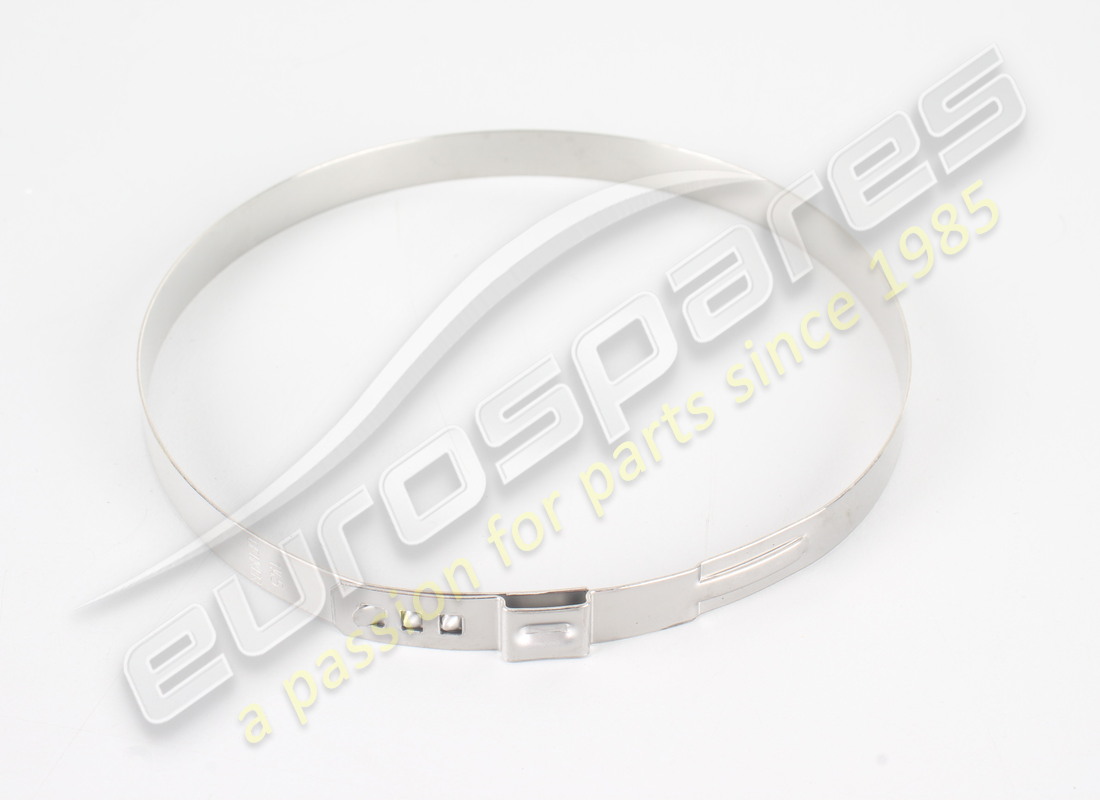

FASCETTA
from £2.07
from £2.07
# 007
MPN: 274889
FASCETTA
from £7.37
from £7.37
This part replaces part number 233242
# 008
MPN: 14306224
VITE VALE PER VETTURE CON COLLETTORE DI ASPIRAZIONE (POS. 1) COD. 231732
from £0.53
from £0.53
# 009
MPN: 231624
VITE M6X45
from £0.53
from £0.53
# 010
MPN: 224757
INSONORIZZANTE VELE PAR VETTURE CON COLLETTORE DI ASPIRAZIONE (POS. 1) COD. 231732
from £159.95
from £159.95
# 011
MPN: 203134
GUARNIZIONE VALE PER VETTURE CON COLLETTORE DI ASPIRAZIONE (POS 1) COD. 231732
Supersession
Supersession
# 011
MPN: 255738
GASKET
from £10.47
from £10.47
This part replaces part number 203134
# 012
MPN: 242177
VITE
from £0.47
from £0.47
# 013
MPN: 203130
CLIP VELE PER VETTURE CON COLLETTORE DI ESPIRAZIONE (POS. 1) COD. 231732
from £5.02
from £5.02
# 013
MPN: 255745
MOLLETTA VALE PAR VETTURE CON COLLETTORE DI ASPIRAZIONE (POS. 1) COD. 252163
from £2.51
from £2.51
# 014
MPN: 203133
VITE VALE PER VETTURE CON COLLETTORE DI ASPIRAZIONE (POS. 1) COD. 231732
from £5.28
from £5.28
# 014
MPN: 255746
VITE VALE PER VETTURE CON COLLETTORE DI ASPIRAZIONE (POS. 1) COD. 252163
from £1.68
from £1.68
# 015
MPN: 255737
PERNO VALE PER VETTURE CON COLLETTORE DI ASPIRAZIONE (POS. 1) COD. 231732
from £1.33
from £1.33
