027 - Actuation Hydraulic For Gearbox

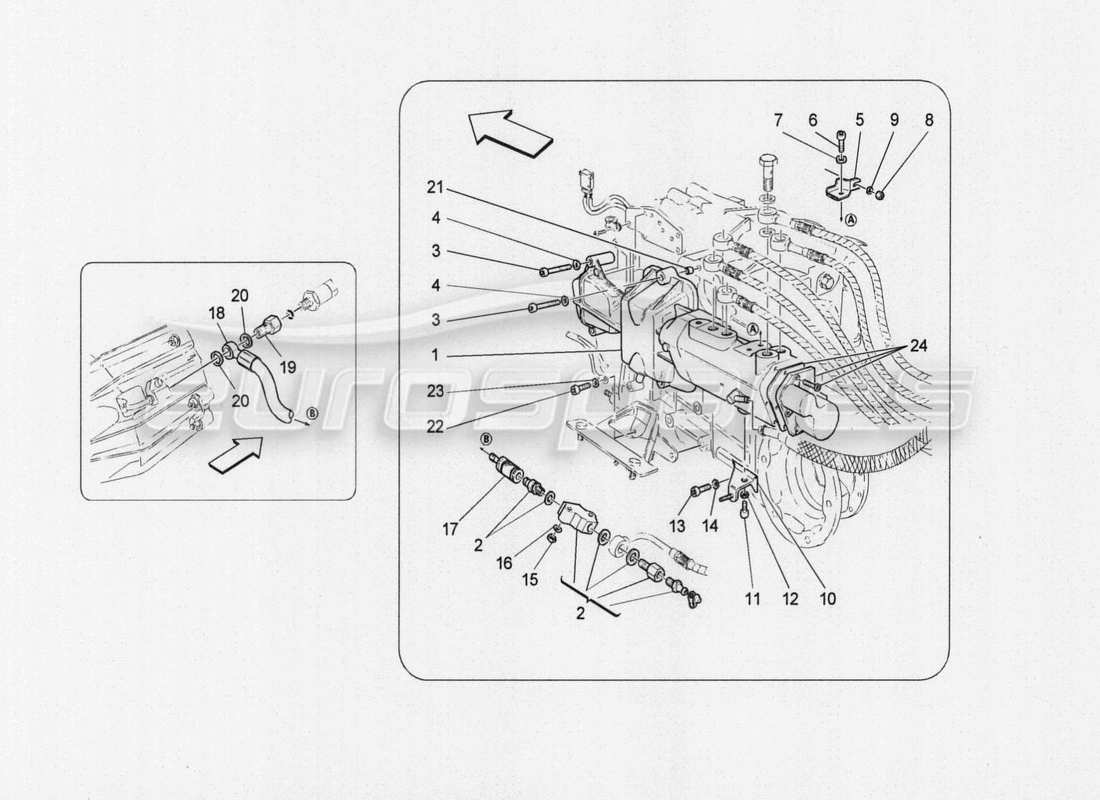

Maserati GranTurismo Special Edition Actuation Hydraulic For Gearbox Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 236033
ATTUATORE
from £5,175.70
from £5,175.70
This part replaces part number 260534
# 002
MPN: 260542
KIT QUICK DISCONNECT
from £611.91
from £611.91
# 003
MPN: 14305524
VITE
from £0.53
from £0.53
# 003
MPN: 14305624
VITE
from £0.50
from £0.50
# 004
MPN: 12601274
ROSETTA D. 6,40-12X 0,5
from £0.51
from £0.51
This part replaces part number 12601270
# 005
MPN: 186776
UPPER ACTUATOR SUPPORT BRACKET
from £7.37
from £7.37
# 006
MPN: 14306224
VITE
from £0.53
from £0.53
# 007
MPN: 12601374
ROSETTA D.8,40-15X0,8
from £0.54
from £0.54
# 008
MPN: 14048211
NUT
from £0.54
from £0.54
# 009
MPN: 14499424
ROSETTA
Supersession
Supersession
# 010
MPN: 199723
LOWER ACTUATOR SUPPORT BRACKET
from £8.87
from £8.87
# 011
MPN: 14301924
VITE
from £1.68
from £1.68
# 012
MPN: 12601374
ROSETTA D 8,40-15X0,8
from £0.54
from £0.54
# 013
MPN: 14360024
VITE
from £0.53
from £0.53
# 014
MPN: 12601474
ROSETTA D.10,5O-21X 1,0
from £0.54
from £0.54
# 015
MPN: 15896214
NUT
from £0.47
from £0.47
This part replaces part number 15896211
# 016
MPN: 12601279
ROSETTA
from £0.53
from £0.53
# 017
MPN: 225148
QUICK FEMALE COUPLING
from £44.12
from £44.12
This part replaces part number 210469
# 018
MPN: 236694
TUBO OLIO FRIZIONE
from £390.31
from £390.31
# 019
MPN: 199410
BOCCHETTONE
from £39.75
from £39.75
# 020
MPN: 10261060
Guarnizione
from £0.53
from £0.53
This part replaces part number 274036
# 021
MPN: 145992
GRANO
from £44.20
from £44.20
# 022
MPN: 14305724
VITE
from £0.53
from £0.53
# 023
MPN: 12620474
ROSETTA
from £0.54
from £0.54
# 024
MPN: 980139927
KIT COPERCHIO ATTUATORE
from £47.44
from £47.44
