035 - DIFFERENTIAL AND REAR AXLE SHAFTS

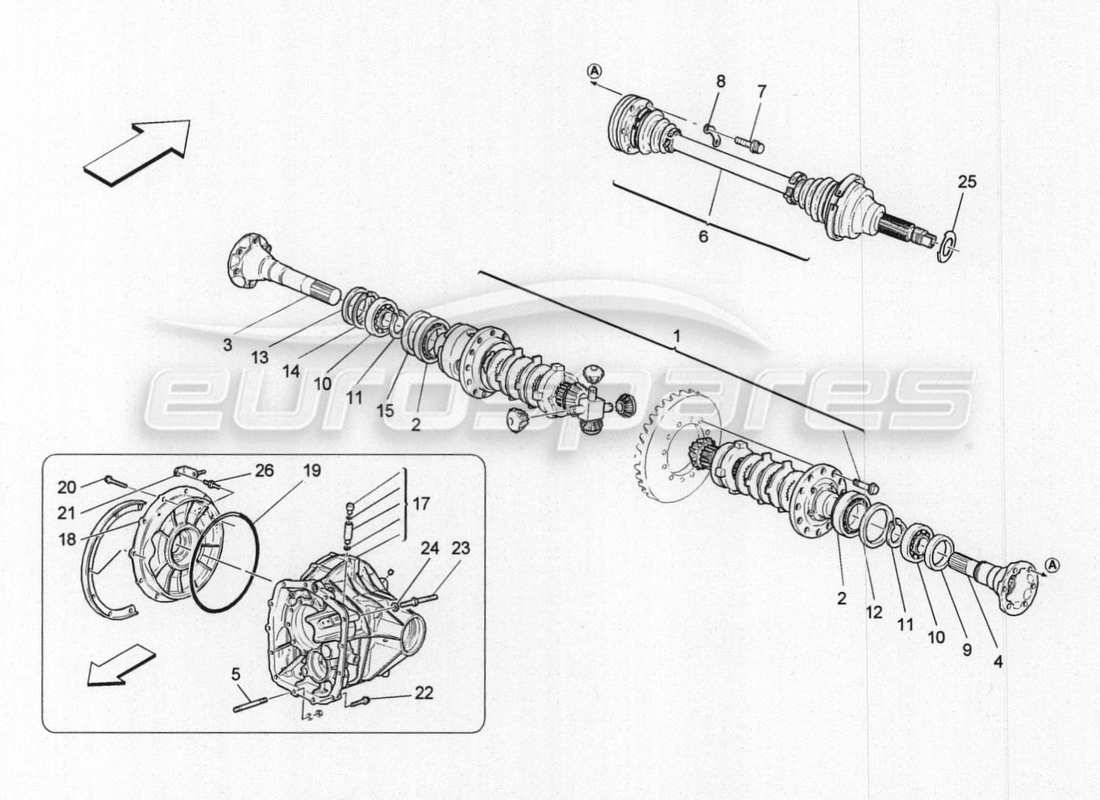

Maserati GranTurismo Special Edition Differential And Rear Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 192735
COMPLETE SELF-LOCKING DIFFERENTIAL
from £2,078.53
from £2,078.53
This part replaces part number 185680
# 002
MPN: 184998
CUSCINETTO A RULLI
from £72.75
from £72.75
This part replaces part number 376200124
# 003
MPN: 199056
RIGHT SIDE DIFFERENTIAL OUTPUT SHAFT. - LONG
from £639.29
from £639.29
This part replaces part number 182322
# 004
MPN: 199055
RIGHT SIDE DIFFERENTIAL OUTPUT SHAFT - SHORT
from £642.62
from £642.62
This part replaces part number 185014
# 005
MPN: 13543624
PRIGIONIERO
from £0.51
from £0.51
# 007
MPN: 181910
VITE
from £2.46
from £2.46
This part replaces part number 211027 - and 1 more. Click to view details
# 008
MPN: 222679
Piastrina
from £2.63
from £2.63
This part replaces part number 149415 which we have in stock
# 009
MPN: 181618
RIGHT SEAL RING.
from £31.13
from £31.13
# 010
MPN: 184995
CUSCINETTO A SFERE
from £62.10
from £62.10
# 011
MPN: 184994
ANELLO ELASTICO
from £3.85
from £3.85
# 012
MPN: 185026
REGISTRATION RING THICKNESS MM. 6.8
from £24.36
from £24.36
# 012
MPN: 185027
REGISTRATION RING THICKNESS MM. 6.4
from £28.21
from £28.21
# 012
MPN: 185028
REGISTRATION RING THICKNESS MM. 6,00
from £28.21
from £28.21
# 013
MPN: 185722
ANELLO PARAOLIO SX.
from £38.01
from £38.01
# 014
MPN: 185723
ANELLO SEEGER
from £2.65
from £2.65
# 015
MPN: 185029
REGISTRATION RING THICKNESS MM. 3,30
from £22.43
from £22.43
# 015
MPN: 185033
REGISTRATION RING THICKNESS MM. 2,95
from £22.43
from £22.43
# 015
MPN: 185034
REGISTRATION RING THICKNESS MM. 2,60
from £22.43
from £22.43
# 017
MPN: 255021
SCATOLA DIFFERENZIALE CPL.
from £692.90
from £692.90
# 018
MPN: 246275
COPERCHIO DIFFERENZIALE
from £459.13
from £459.13
# 019
MPN: 14468781
O-RING.
from £20.09
from £20.09
# 020
MPN: 16287221
VITE
from £0.53
from £0.53
# 021
MPN: 149694
FIXING BRACKET
from £3.27
from £3.27
# 022
MPN: 16287521
VITE
from £0.71
from £0.71
# 023
MPN: 190044
COLONNETTA
from £17.29
from £17.29
This part replaces part number 190094
# 024
MPN: 12601374
ROSETTA D. 6.40-15X 0,8
from £0.54
from £0.54
# 025
MPN: 284616
RALLA
from £20.57
from £20.57
# 026
MPN: 236076
COLONNETTA
from £64.96
from £64.96
