037 - Gearbox Activation Hydraulics Power Unit

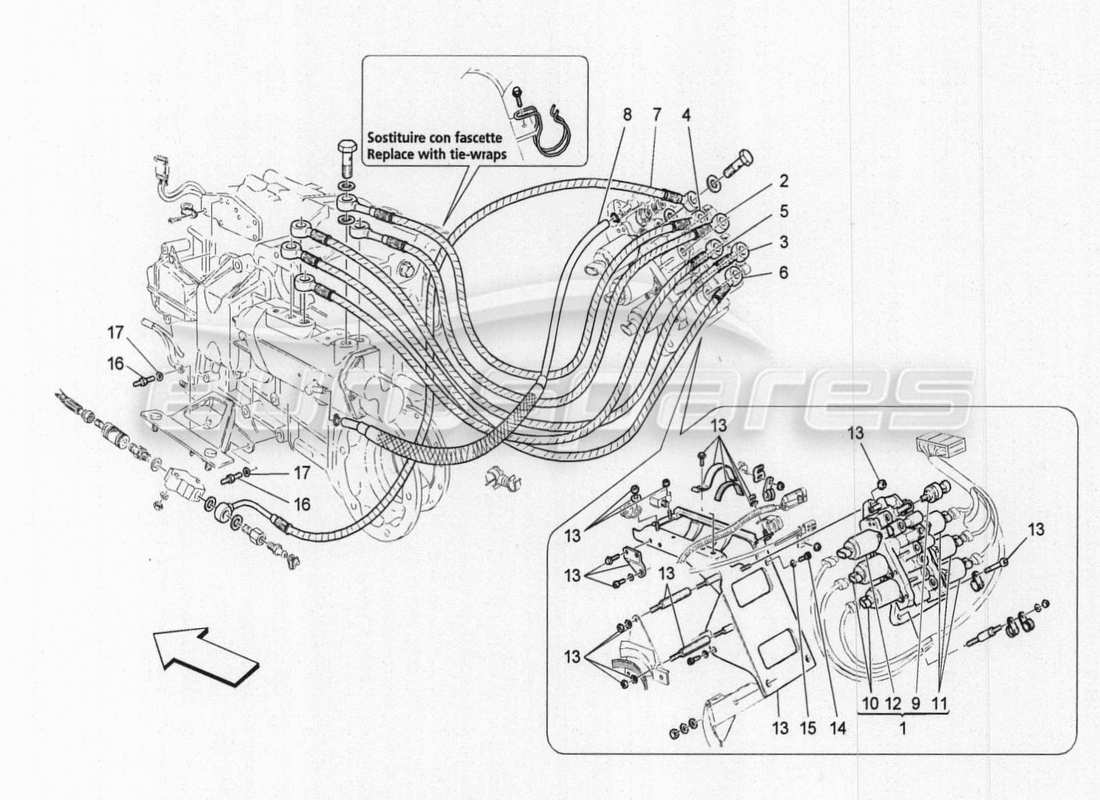

Maserati GranTurismo Special Edition Gearbox Activation Hydraulics Power Unit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 236033
KIT CAMBIO F1 CPL.
from £5,175.70
from £5,175.70
This part replaces part number 260534
# 001
MPN: 248412
POWER UNIT
from £3,492.00
from £3,492.00
# 002
MPN: 260543
CPL PIPE. EV1 COMPLETE WITH FITTING AND GASKETS
from £410.86
from £410.86
# 003
MPN: 260544
TUBO CPL. EV2 COMPIALO DI RACCORDO E GUARNIZIONI
from £554.42
from £554.42
# 004
MPN: 260545
CPL PIPE. EV3 COMPLETE WITH FITTING AND GASKETS
from £446.44
from £446.44
# 005
MPN: 260546
CPL PIPE. EV4 COMPLETE WITH FITTING AND GASKETS
from £587.28
from £587.28
# 006
MPN: 260547
CPL PIPE. EV5 COMPLETE WITH FITTING AND GASKETS
from £350.12
from £350.12
# 007
MPN: 260548
TUBO CPL. EVF COMPLETO DI RACCORDO E GUEMIZIONI
from £445.52
from £445.52
# 008
MPN: 980001161
RECIRCULATION HOSE KIT
from £82.41
from £82.41
This part replaces part number 260538 - and 2 more. Click to view details
# 009
MPN: 980001156
SENSORE DI PRESSIONE
from £206.64
from £206.64
This part replaces part number 190662
# 010
MPN: 248351
KIT VALVOLA PPV
from £352.34
from £352.34
# 011
MPN: 248352
KIT VALVOLA QPV06
from £352.34
from £352.34
# 012
MPN: 248091
KIT VALVOLA QPV02
from £312.43
from £312.43
# 013
MPN: 260541
BRACKET KIT
from £1,649.12
from £1,649.12
# 014
MPN: 14302824
VITE
from £0.47
from £0.47
# 015
MPN: 12601374
ROSETTA D. 8.40-15X 0,8
from £0.54
from £0.54
# 016
MPN: 199894
COLONNETTA
from £8.87
from £8.87
# 017
MPN: 12620474
ROSETTA
from £0.54
from £0.54
