038 - Gearbox Activation Hydraulics : Tank And Pump

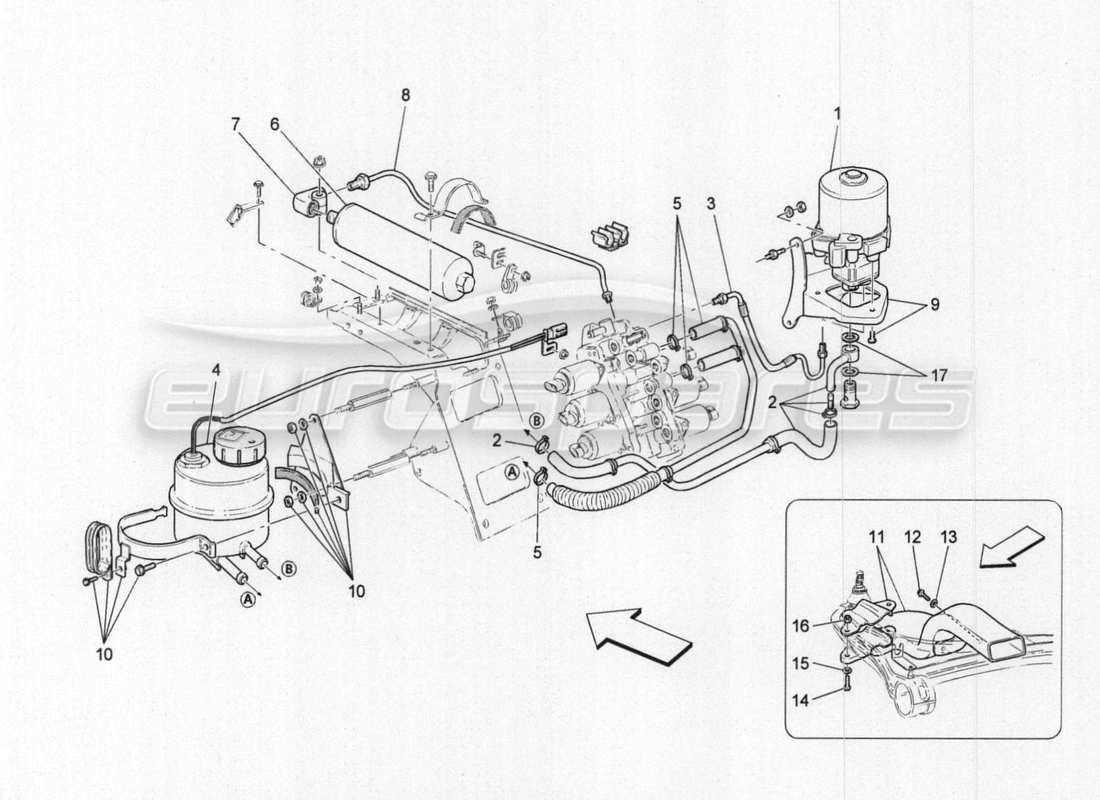

Maserati GranTurismo Special Edition Gearbox Activation Hydraulics : Tank And Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search

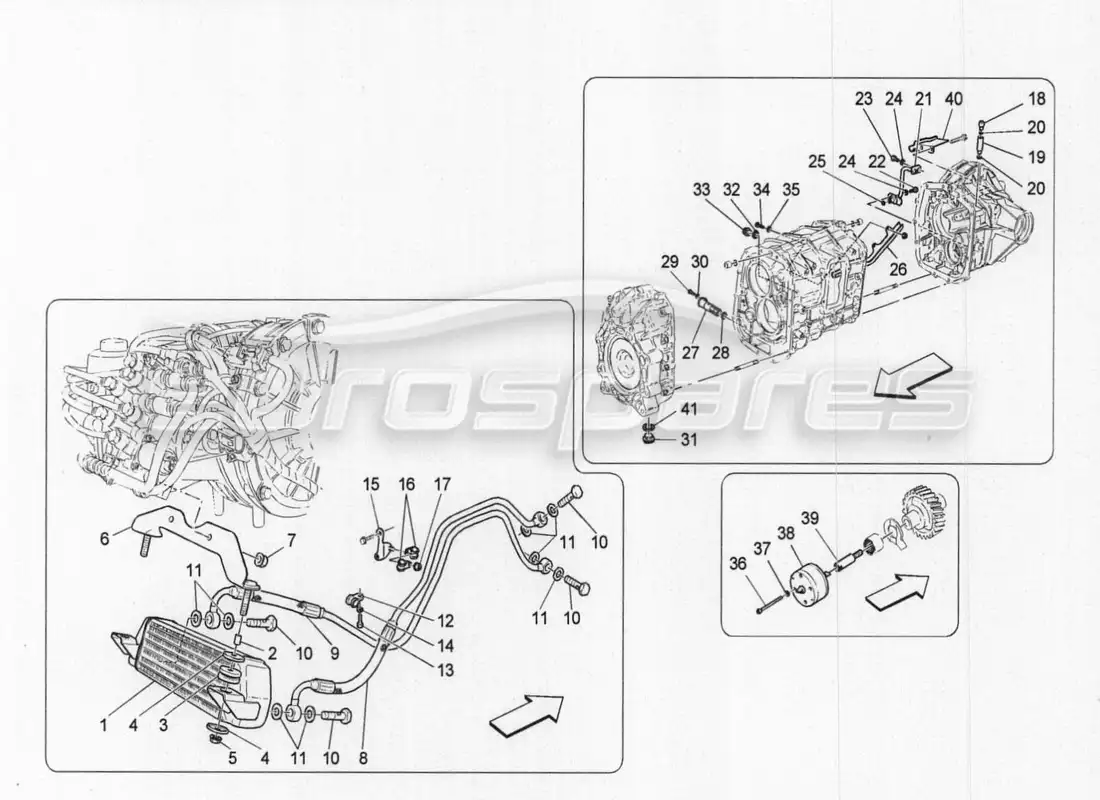

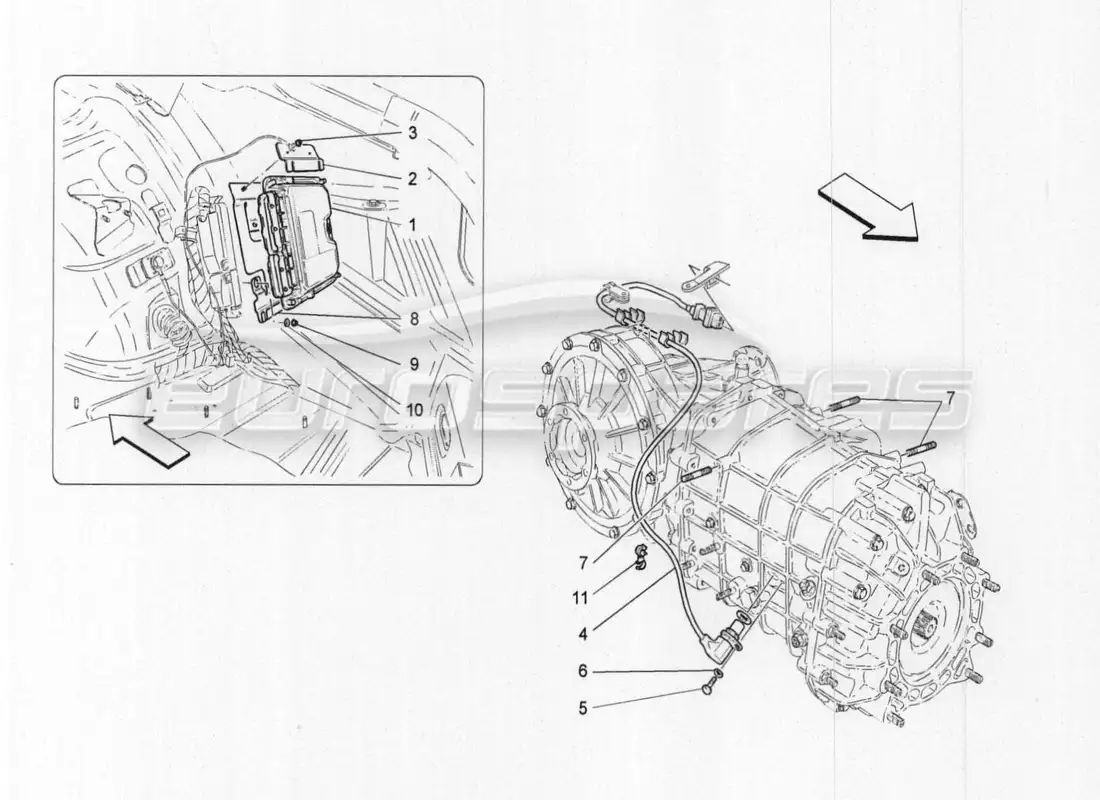

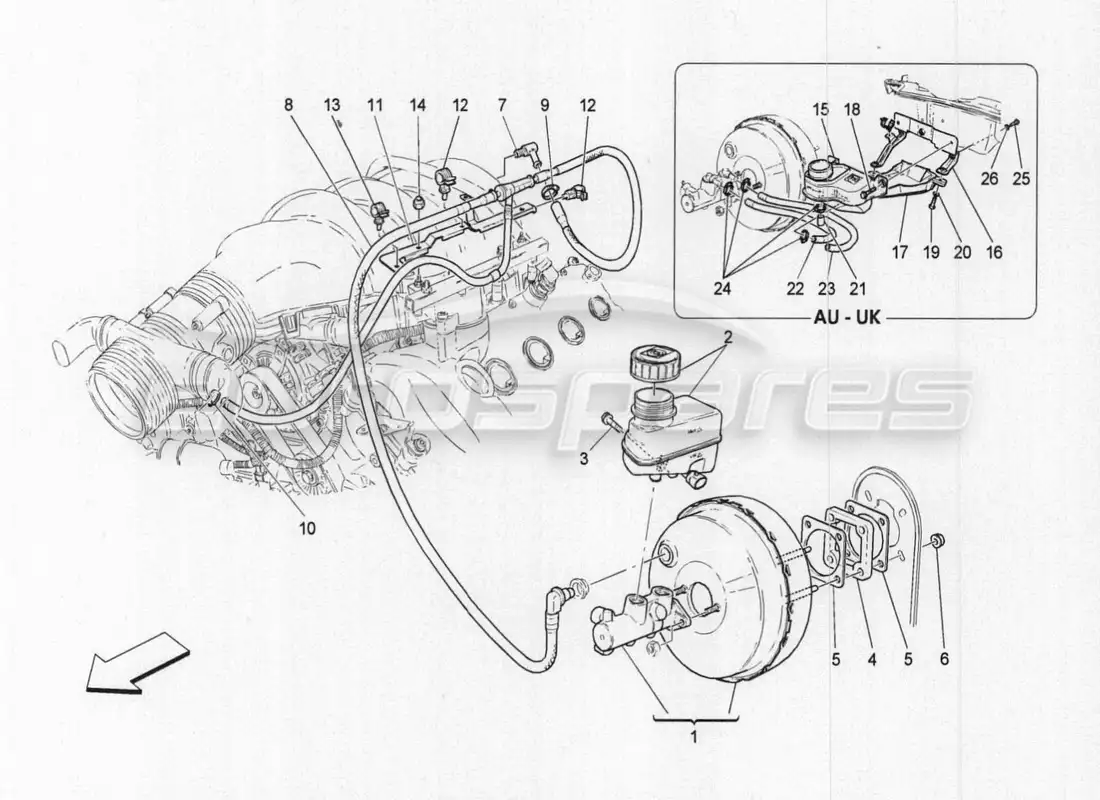

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 248087
KIT POMPA IDRAULICA
from £1,230.63
from £1,230.63
# 002
MPN: 260535
TUBO ALIMENTAZIONE POMPA CPL.
from £1,340.76
from £1,340.76
# 003
MPN: 260532
TUBO DA POMPA A POWER UNIT CPL.
from £219.60
from £219.60
# 004
MPN: 260536
OIL TANK KIT
from £460.82
from £460.82
# 005
MPN: 260537
TUBO DA POWER UNIT A SERBATOIO OLIO CPL.
from £444.18
from £444.18
# 006
MPN: 179143
ACCUMULATORE CPL.
from £363.56
from £363.56
# 007
MPN: 179211
ACCUMULATOR DUCT
from £175.20
from £175.20
# 008
MPN: 184269
TUBO DA ACCUMULATORE A POWER UNIT
from £44.19
from £44.19
This part replaces part number 260533 - and 2 more. Click to view details
# 009
MPN: 260540
HYDRAULIC PUMP BRACKET KIT
from £496.64
from £496.64
# 010
MPN: 260539
TANK BRACKET KIT
from £342.03
from £342.03
# 011
MPN: 241565
AIR DELIVERY DUCT
from £102.30
from £102.30
# 012
MPN: 16297024
VITE
from £0.54
from £0.54
# 013
MPN: 12643724
ROSETTA D 6.15-18X 1.5
from £0.53
from £0.53
# 014
MPN: 13276911
VITE
from £0.47
from £0.47
# 015
MPN: 14498824
ROSETTA D.6.4-16.3X1
from £0.54
from £0.54
# 016
MPN: 15896211
NUT
Supersession
Supersession
# 017
MPN: 281980
WASHER
from £8.77
from £8.77
This part replaces part number 10280050
