043 - braking devices on rear wheels

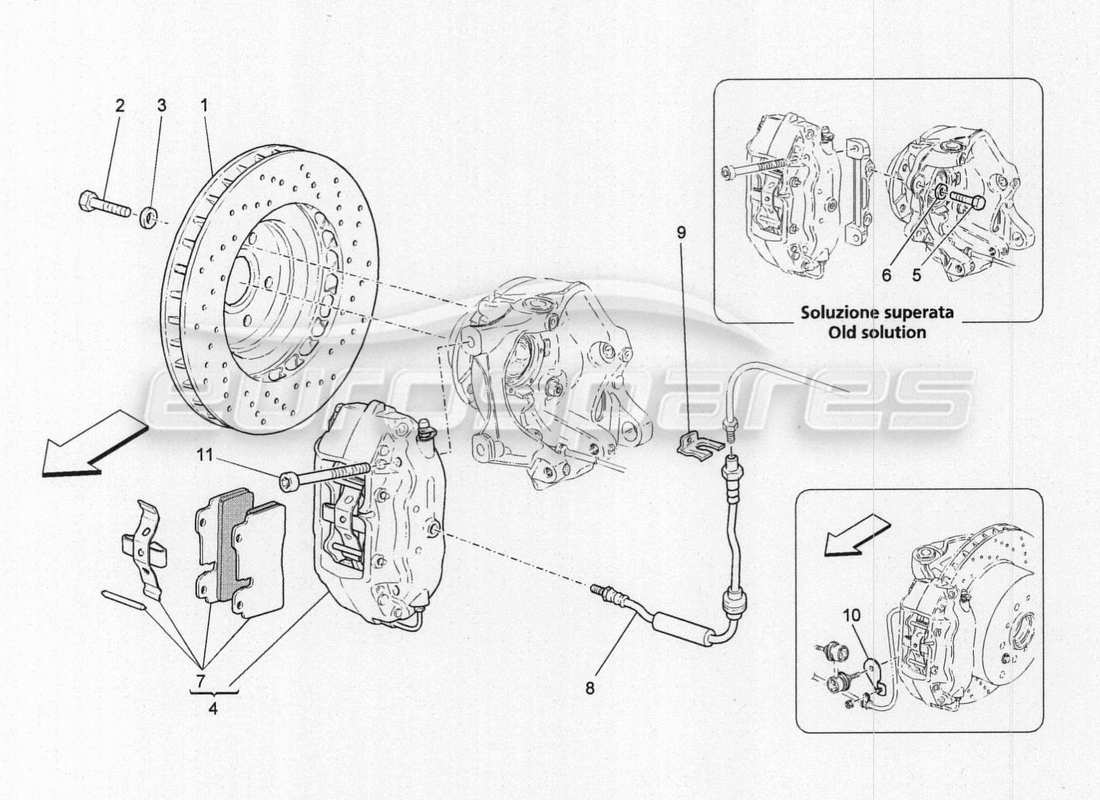

Maserati GranTurismo Special Edition Braking Devices On Rear Wheels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 257142
REAR BRAKE DISC DRILLED AND SLOTTED
from £240.08
from £240.08
# 002
MPN: 16043424
VITE
from £0.51
from £0.51
# 003
MPN: 12601374
ROSETTA D. 8.40-15X 0,8
from £0.53
from £0.53
# 004
-
PINZA FRENO POSTERIORE DX. CPL.
# 004
-
PINZA FRENO POSTERIORE SX. CPL
# 005
MPN: 217564
VITE
from £1.96
from £1.96
# 006
MPN: 228130
ROSETTA
from £2.72
from £2.72
# 007
MPN: 980139064
REAR BRAKE PADS SET
from £267.15
from £267.15
# 008
MPN: 226345
HOSE WITH REAR CALIPERS
from £290.72
from £290.72
# 009
MPN: 181897
MOLLETTA
from £1.14
from £1.14
This part replaces part number 252814
# 010
MPN: 228183
STAFFA
from £3.85
from £3.85
# 011
MPN: 175947
VITE
from £3.19
from £3.19
