045 - Handbrake

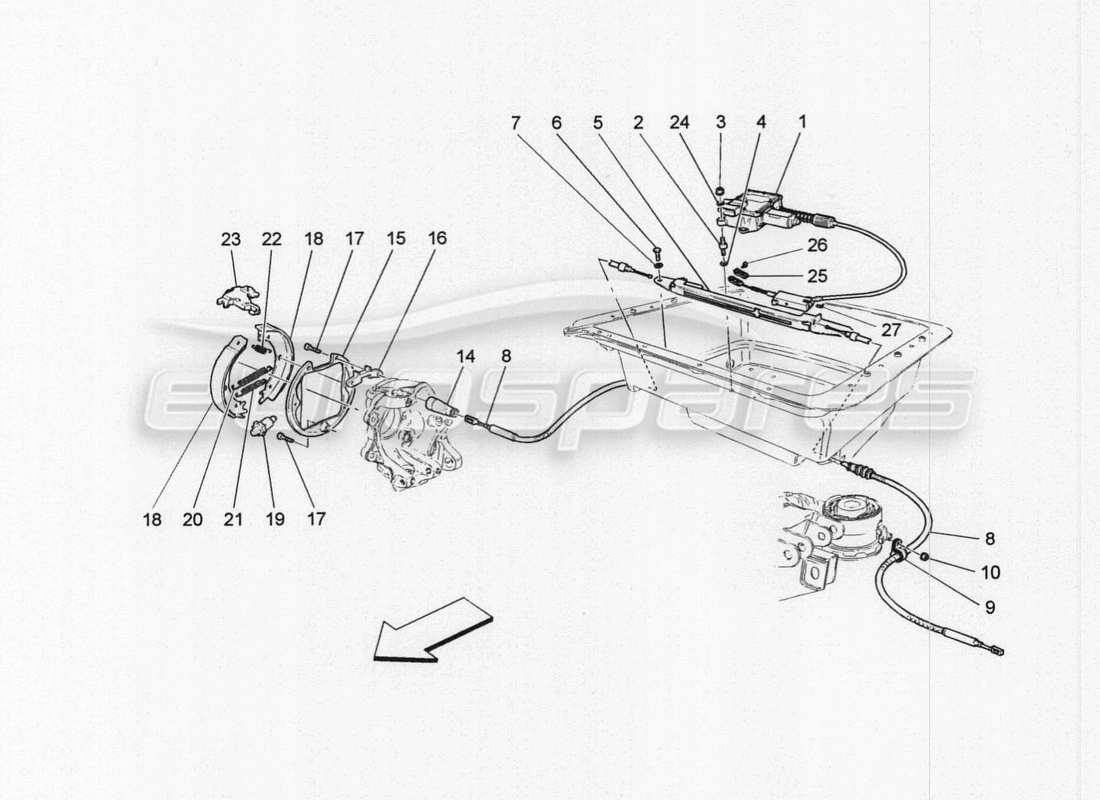

Maserati GranTurismo Special Edition Handbrake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 002
MPN: 239829
TAMPONE
from £6.18
from £6.18
This part replaces part number 225408
# 003
MPN: 14059214
NUT M6
from £0.53
from £0.53
This part replaces part number 12578121
# 004
MPN: 10523424
ROSETTA
from £0.53
from £0.53
# 005
MPN: 224010
STAFFA EQUALIZZATRICE
from £58.58
from £58.58
# 006
MPN: 16043124
VITE
from £0.30
from £0.30
# 007
MPN: 12601374
ROSETTA D. 8.40-15X 0,8
from £0.54
from £0.54
# 008
MPN: 221901
SECONDARY PARKING BRAKE CABLE
from £236.00
from £236.00
# 009
MPN: 10441290
STAFFETTA CON GUAINA
from £0.28
from £0.28
# 010
MPN: 14058411
DADO M6
from £0.53
from £0.53
# 014
MPN: 143938
CABLE SHEATH
from £17.67
from £17.67
This part replaces part number 388000341
# 015
MPN: 186574
STUM SUPPORT PLATE
from £44.35
from £44.35
# 016
MPN: 233371
LAMIERINO
from £40.90
from £40.90
# 017
MPN: 190870
VITE
from £1.28
from £1.28
This part replaces part number 193737 - and 1 more. Click to view details
# 018
-
COMPLETE BRAKE SHOE SET
(Set of 4 pcs.)
# 018
MPN: 248418
HAND BRAKE SHOE IT IS RECOMMENDED TO REPLACE THE BRAKE HOOSES AND 4
from £101.73
from £101.73
This part replaces part number 235894
# 019
MPN: 186572
REGISTRO PER FRENO A MANO
from £23.35
from £23.35
This part replaces part number 388000113
# 020
MPN: 190776
LONG TRACTION LOG RETURN SPRING
from £10.37
from £10.37
# 021
MPN: 190779
SHORT TRACTION LOG RETURN SPRING
from £3.48
from £3.48
# 022
MPN: 190780
STUD FIXING SPRING
from £3.19
from £3.19
# 023
MPN: 253764
HANDBRAKE LEVER CPL.
Supersession
Supersession
# 024
MPN: 233582
ROSETTA
from £0.92
from £0.92
# 025
MPN: 245964
GABBIETTA
from £6.68
from £6.68
# 026
MPN: 245162
CLIP ANTISFILAMENTO
from £2.39
from £2.39
# 027
MPN: 239924
CHIAVETTA ANTISFILAMENTO
from £2.86
from £2.86
