057 - rear chassis

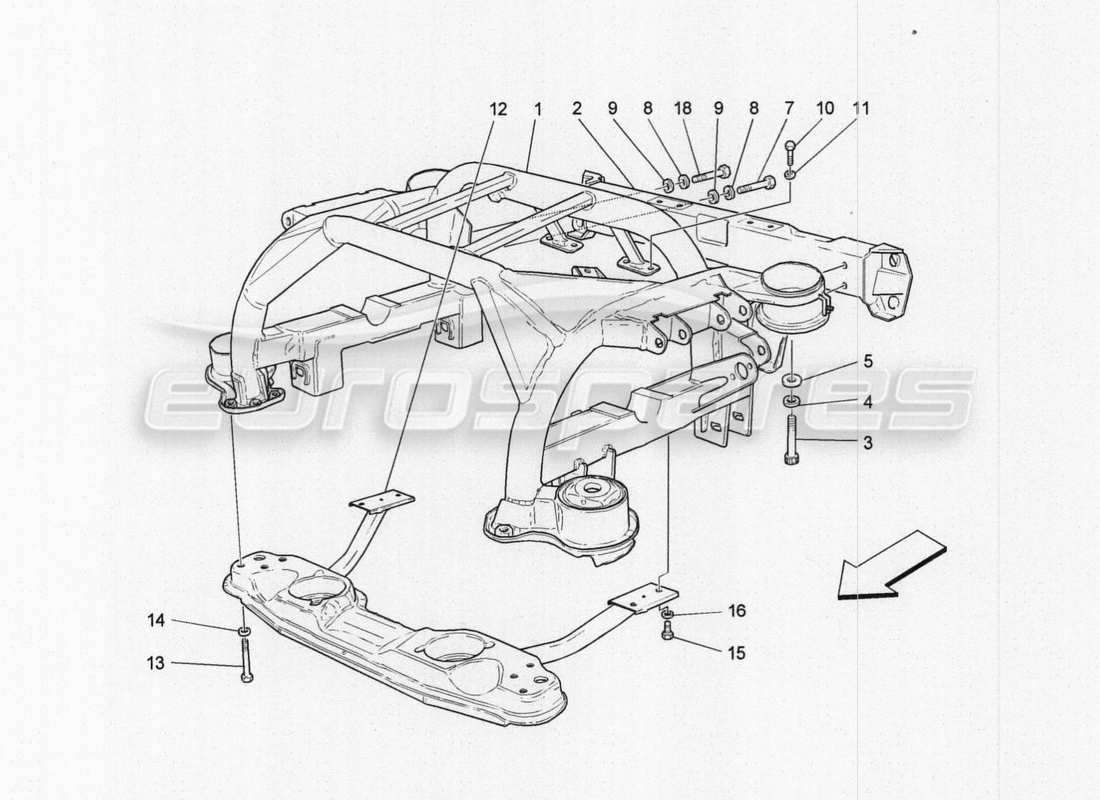

Maserati GranTurismo Special Edition Rear Chassis Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980139809

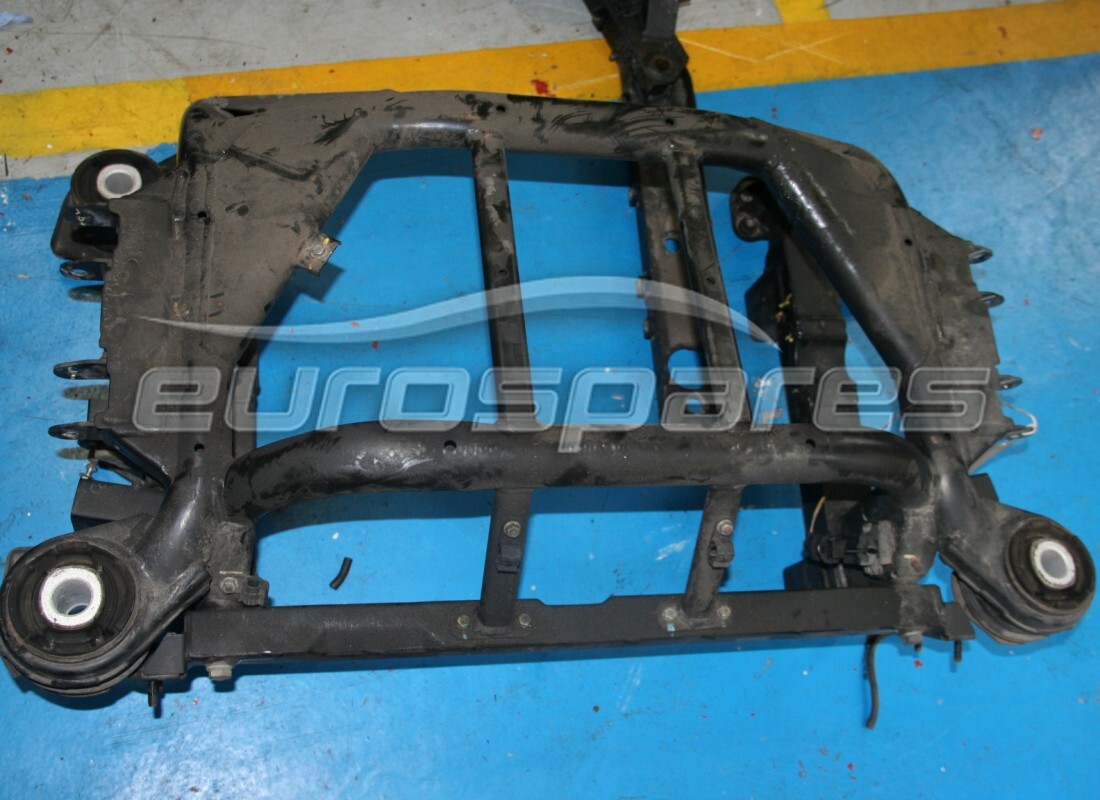

COMPLESSIVO TELAIETTO POSTERIORE
from £1,587.18
from £1,587.18
# 002
MPN: 67483100
REAR CROSS CROSS
from £655.25
from £655.25
# 003
MPN: 67997900
VITE
from £8.37
from £8.37
# 004
MPN: 12646934
ROSETTA D. 12.2 -28X 3
from £1.51
from £1.51
# 005
MPN: 244175
ROSETTA
from £4.95
from £4.95
This part replaces part number 103236
# 007
MPN: 11343821
VITE M 10X50
from £0.88
from £0.88
# 008
MPN: 14496624
ROSETTA
from £0.53
from £0.53
# 009
MPN: 11190577
ROSETTA
from £0.53
from £0.53
# 010
MPN: 11612424
VITE TE M6X16
from £1.01
from £1.01
# 011
MPN: 13550221
ROSETTA
from £0.53
from £0.53
# 012
MPN: 268638
FRONT CROSS CROSS
from £523.95
from £523.95
This part replaces part number 239064 - and 2 more. Click to view details
# 013
MPN: 11343724
SCREW M 10X65 NO LONGER AVAILABLE AT THE OFFICE, CHECK STOCK ON SITE
Supersession
Supersession
# 013
MPN: 15888824
VITE M 10X70
from £3.43
from £3.43
This part replaces part number 11343724
# 014
MPN: 14496624
ROSETTA
from £0.51
from £0.51
# 015
MPN: 14307424
VITE
from £0.57
from £0.57
# 016
MPN: 12604579
ROSETTA
from £0.68
from £0.68
# 018
MPN: 15971321
VITE M 10X75
from £8.37
from £8.37
