105 - underbody and underfloor guards

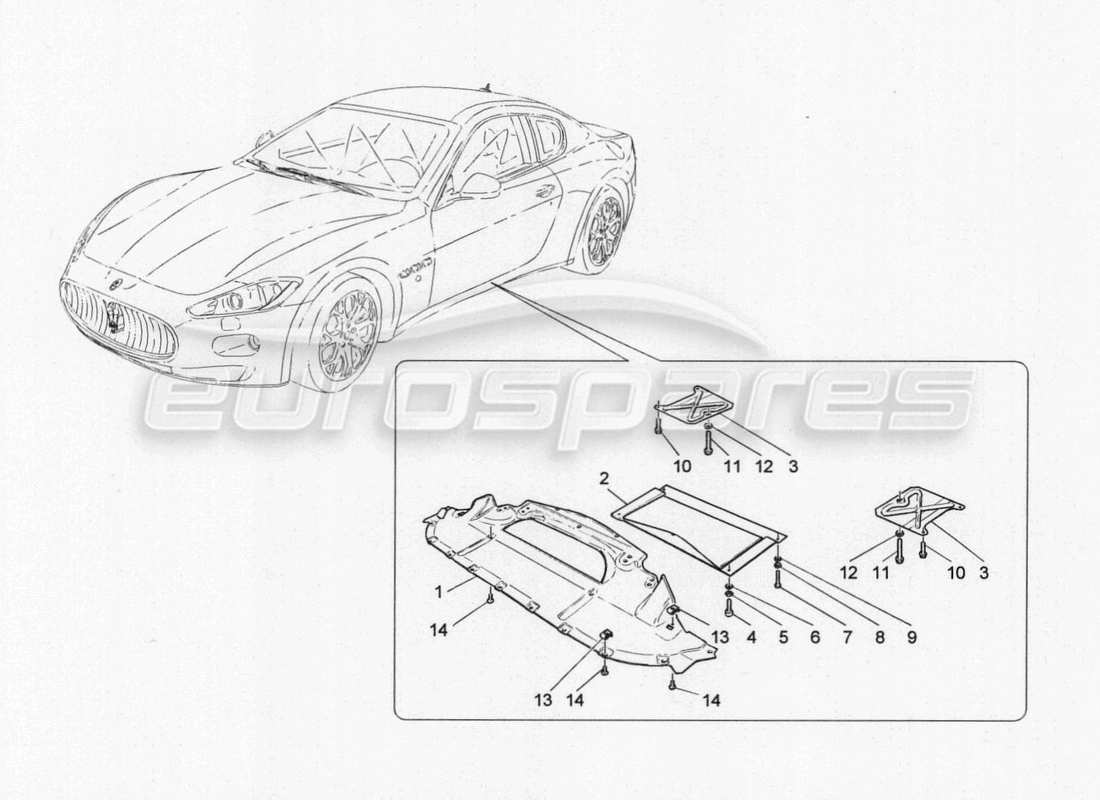

Maserati GranTurismo Special Edition Underbody And Underfloor Guards Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 81263400
RIPARO AERODINAMICO ANTERIORE CPL.
from £101.53
from £101.53
# 002
MPN: 67960100
ACOUSTIC SHELTER UNDER THE FRAME
from £105.88
from £105.88
# 003
MPN: 67576300
COVERAGE Tubi
from £12.88
from £12.88
# 004
MPN: 15970324
VITE TE M10X1,25X16
from £0.53
from £0.53
# 005
MPN: 12601474
ROSETTA D10,50-21X1,0
from £0.54
from £0.54
# 006
MPN: 12646824
ROSETTA D.10.2-25X2
from £0.53
from £0.53
# 007
MPN: 10902524
VITE TE M 6X 22
from £0.47
from £0.47
# 008
MPN: 12601274
ROSETTA D. 6.40-12X 0,5
from £0.47
from £0.47
This part replaces part number 12601270
# 009
MPN: 12640624
ROSETTA D. 6.15-25X2
from £0.47
from £0.47
# 010
MPN: 11617324
VITE TE M8X18
from £1.86
from £1.86
# 011
MPN: 13217434
Vite M12X1,25X35
from £4.89
from £4.89
# 012
MPN: 12646934
ROSETTA D. 12.2 -28X 3
from £1.40
from £1.40
# 013
MPN: 80093600
MOLLETTA
from £10.01
from £10.01
# 014
MPN: 51810310
BUMPER FIXING SCREW
from £2.33
from £2.33
This part replaces part number 46419734
# 014
MPN: 51810310
BODY FIXING SCREW
from £2.33
from £2.33
This part replaces part number 46419734
# 014
MPN: 51810310
VITE FISSAGGIO A TELAIETLO ANTERIORE
from £2.33
from £2.33
This part replaces part number 46419734
