111 - REAR LID

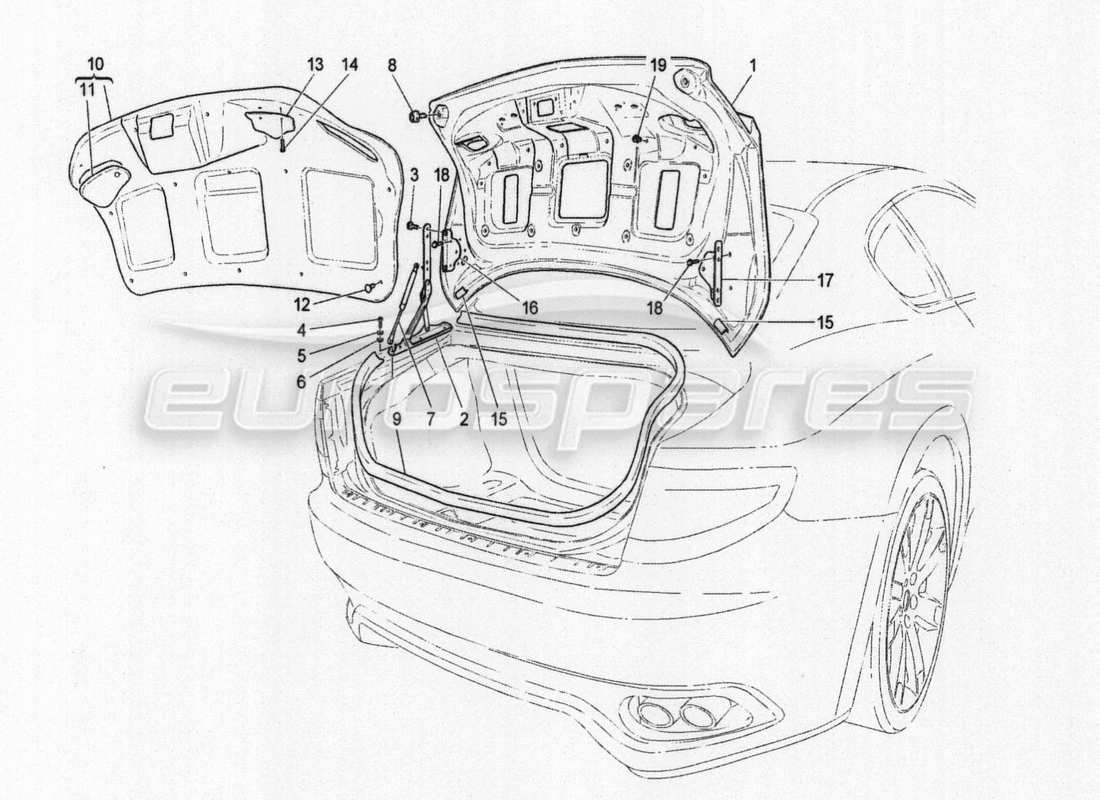

Maserati GranTurismo Special Edition Rear Lid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 82083300
Rear bonnet with holes for removable spoiler
from £657.30
from £657.30
This part replaces part number 82079900 - and 1 more. Click to view details
# 002
MPN: 384700105
CERNIERA COFANO POSTERIORE SX.
from £61.11
from £61.11
# 002
MPN: 384700106
RIGHT REAR BONNET HINGE.
from £61.11
from £61.11
# 003
MPN: 13341021
VITE TE M6X16
from £2.00
from £2.00
# 004
MPN: 14300924
VITE TCEI M6X20
Supersession
Supersession
This part replaces part number 82461309
# 005
MPN: 12647624
ROSETTA D. 6.45-16X 2
from £0.50
from £0.50
This part replaces part number 12647601
# 006
MPN: 80623900
WASHER
from £12.97
from £12.97
# 007
MPN: 69054500
MOLLA A GAS
from £26.48
from £26.48
# 008
MPN: 83410300
TASSELLO ANTIVIBRANTE
from £11.38
from £11.38
# 009
MPN: 68442800
Guarnizione
from £35.08
from £35.08
# 010
MPN: 684166..
TRUNK HOOD BONNET LINING
Supersession
Supersession
# 011
MPN: 684499..
RIGHT DOOR.
Supersession
Supersession
# 011
MPN: 684500..
SPORTELLO SX.
Supersession
Supersession
# 012
MPN: 80634300
BLACK RIVET
from £1.51
from £1.51
This part replaces part number 80176700
# 012
MPN: 80676100
RIVETTO BEIGE
from £1.51
from £1.51
# 013
MPN: 67957500
HANDLE
from £6.18
from £6.18
# 014
MPN: 13299877
VITE M5X25
from £1.43
from £1.43
# 015
MPN: 80891500
TAMPONE
from £26.17
from £26.17
# 016
MPN: 69210800
STAFFA SX.
from £22.17
from £22.17
# 017
MPN: 69210700
STAFFA DX.
from £22.17
from £22.17
# 018
MPN: 13341021
VITE TE M6X16
from £2.00
from £2.00
# 019
MPN: 230824
CLIP
from £2.51
from £2.51
