126 - accessory console and centre console

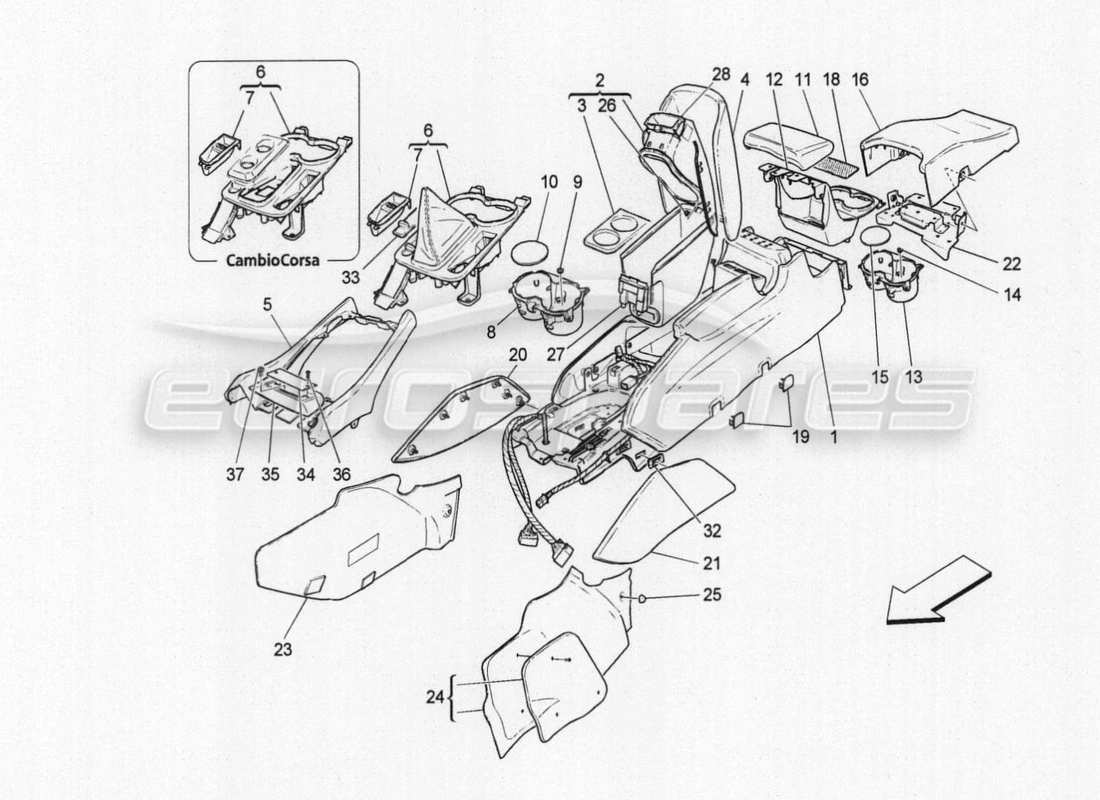

Maserati GranTurismo Special Edition Accessory Console And Centre Console Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9816032..
STRUTTURA MOBILETTO CPL.
Supersession
Supersession
# 002
MPN: 980145007
CONTENITORE MOBILETTO CPL.
from £514.13
from £514.13
# 003
MPN: 980139474
CABINET CONTAINER CARPET
from £42.96
from £42.96
# 004
MPN: 848705..
BRACCIOLO MOBILETTO TUNNEL ALCANTARA
Supersession
Supersession
# 004
MPN: 9816090..
TUNNEL CABINET ARMREST
Supersession
Supersession
# 005
MPN: custom
FRONT PLATE
# 006
MPN: 980145368
MOSTRINA CENTRALE CPL. PELLE
from £758.04
from £758.04
# 006
MPN: 981604500
MOSTRINA CENTRALE CPL. CARBONIO CORI CORNICI SOFT TOUCH
from £1,757.31
from £1,757.31
# 007
MPN: 69290000
ASHTRAY TRAY
from £12.59
from £12.59
# 008
MPN: 69298000
VASCHETTA PORTABICCHIERI
from £66.99
from £66.99
# 009
MPN: 68194000
TAPPO
from £2.31
from £2.31
# 010
MPN: 69620300
TAPPETINO PORTABICCHIERI
from £5.10
from £5.10
# 011
MPN: 981500524
REAR UPPER TRIM FRAME ROS.CO
from £341.72
from £341.72
This part replaces part number 82353624
# 012
MPN: 980145008
CONSOLLE POSTERIORE CPL.
from £358.12
from £358.12
# 013
MPN: 69298000
VASCHETTA PORTABICCHIERI
from £66.99
from £66.99
# 014
MPN: 68194000
TAPPO
from £2.31
from £2.31
# 015
MPN: 69620300
TAPPETINO PORTABICCHIERI
from £5.10
from £5.10
# 016
MPN: 684897..
COPERTURA CONSOLLE POSTERIORE CPL.
Supersession
Supersession
# 018
MPN: 69892000
REAR MAT
from £28.15
from £28.15
# 019
MPN: 9813076..
TAPPO
Supersession
Supersession
# 020
MPN: 698909..
RIGHT FRONT SIDE BULKHEAD.
Supersession
Supersession
# 021
MPN: 698908..
PARATIA LATERALE ANTERIORE SX.
# 022
MPN: 69892300
STAFFA
from £27.90
from £27.90
# 023
MPN: 801824..
RIGHT TUNNEL SIDE COVER.
Supersession
Supersession
# 024
MPN: 801825..
COPERTURA LATERALE TUNNEL SX.
Supersession
Supersession
# 025
MPN: 68190400
COPRIVITE
from £3.64
from £3.64
# 026
MPN: 980139614
CLIP
from £102.53
from £102.53
# 027
MPN: 69299000
BLOCCHETTO
from £37.24
from £37.24
# 028
MPN: 980139814
KIT SOSTITUZIONE MANIGLIA BRACCIOLO CPL.
from £102.53
from £102.53
# 032
MPN: 68700200
CLIP
from £2.14
from £2.14
# 033
MPN: 980145468
SLIDING
from £64.01
from £64.01
# 034
MPN: 88625700
TARGHETTA SPECIAL EDITION
from £46.04
from £46.04
# 035
MPN: 85351100
SUPPORTO
from £927.81
from £927.81
# 036
MPN: 208100
VITE
from £9.04
from £9.04
# 037
MPN: 15783377
VITE
from £1.55
from £1.55
