128 - PASSENGER COMPARTMENT MATS

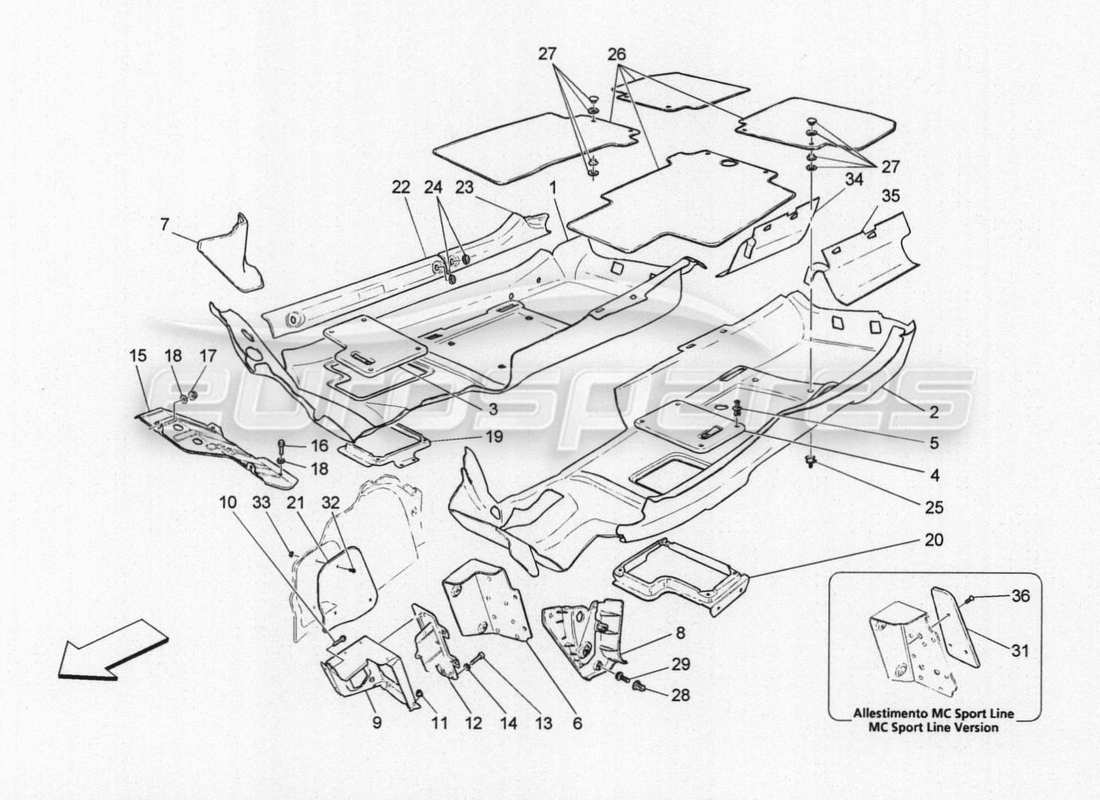

Maserati GranTurismo Special Edition Passenger Compartment Mats Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 683804..
RH CARPET
LHD
Supersession
Supersession
# 002
MPN: 691896..
TAPPETO SX.
LHD
Supersession
Supersession
# 003
MPN: 677280..
RIGHT SIDE CONTROL UNIT INSPECTION HATCH.
Supersession
Supersession
# 004
MPN: 681919..
BOTOLA ISPEZIONE CENTRALINE LATO SX.
Supersession
Supersession
# 005
MPN: 68808600
BOTTONE DI FISSAGGIO
from £0.72
from £0.72
# 006
MPN: 678327..
RIVESTIMENTO APPOGGIAPIEDE PILOTA CPL.
Supersession
Supersession
# 006
MPN: 820839..
RIVESTIMENTO APPOGGIAPIEDE PILOTA CPL.
Supersession
Supersession
# 007
MPN: 699841..
LOWER MOLDING OF THE RIGHT FRONT PILLAR. CPL.
Supersession
Supersession
# 008
MPN: 699840..
MODANATURA INFERIORE MONTANTE ANTERIORE SX. CPL.
from £54.60
from £54.60
# 009
MPN: 67076300
APPOGGIAPIEDI PILOTA
from £22.70
from £22.70
# 010
MPN: 11625624
VITE
from £0.47
from £0.47
# 011
MPN: 14039614
Dado M 6
from £0.54
from £0.54
# 012
MPN: 67571800
COPERCHIO APPOGGIAPIEDI PILOTA
from £22.24
from £22.24
# 012
MPN: 82083800
COPERCHIO APPOGGIAPIEDI PILOTA
from £24.17
from £24.17
# 013
MPN: 13026924
VITE
from £0.53
from £0.53
# 014
MPN: 13550201
ROSETTA
from £0.47
from £0.47
# 015
MPN: 67267900
APPOGGIAPIEDE LATO PASSEGGERO LATO DX.
from £44.80
from £44.80
# 016
MPN: 11612424
VITE TE M 6X16
from £1.02
from £1.02
# 017
MPN: 14039614
Dado M 6
from £0.53
from £0.53
# 018
MPN: 12643724
ROSETTA D 6,15-18 X 1,5
from £0.51
from £0.51
# 019
MPN: 67728600
RIGHT HATCH FIXING BRACKET.
from £19.29
from £19.29
# 020
MPN: 68192000
STAFFA FISSAGGIO BOTOLA SX.
from £20.49
from £20.49
# 021
MPN: 67312200
PIASTRA DI PROTEZIONE
from £203.25
from £203.25
# 022
MPN: 80521500
RIEMPIMENTO ANTERIORE SX.
from £10.68
from £10.68
# 022
MPN: 80521900
RIGHT FRONT FILLING.
from £10.60
from £10.60
# 023
MPN: 80521800
RIEMPIMENTO POSTERIORE SX.
from £8.94
from £8.94
# 023
MPN: 80522000
RIGHT REAR FILLING.
from £9.48
from £9.48
# 024
MPN: 67640300
BOTTONE DI FISSAGGIO
from £0.51
from £0.51
# 025
MPN: 67020900
BOTTONE
from £1.51
from £1.51
This part replaces part number 66423700
# 026
MPN: 95823....
KIT SOVRATAPPETI
Supersession
Supersession
# 027
MPN: 980001999
KIT FISSAGGIO SOVRATAPPETI
from £25.29
from £25.29
# 028
MPN: 67874700
BOCCOLA
from £1.17
from £1.17
# 029
MPN: 67874500
PINETTO DI FISSAGGIO
from £0.75
from £0.75
# 031
MPN: 82084000
APPOGGIAPIEDI PILOTA
from £100.46
from £100.46
# 032
MPN: 13297511
VITE
from £2.00
from £2.00
# 033
MPN: 12574011
NUT
from £0.47
from £0.47
# 034
MPN: 808992..
RIGHT REAR MAT
Supersession
Supersession
# 035
MPN: 809354..
TAPPETINO POSTERIORE SX
Supersession
Supersession
# 036
MPN: 14441324
VITE
from £0.52
from £0.52
