03.10.1 - gearbox housings

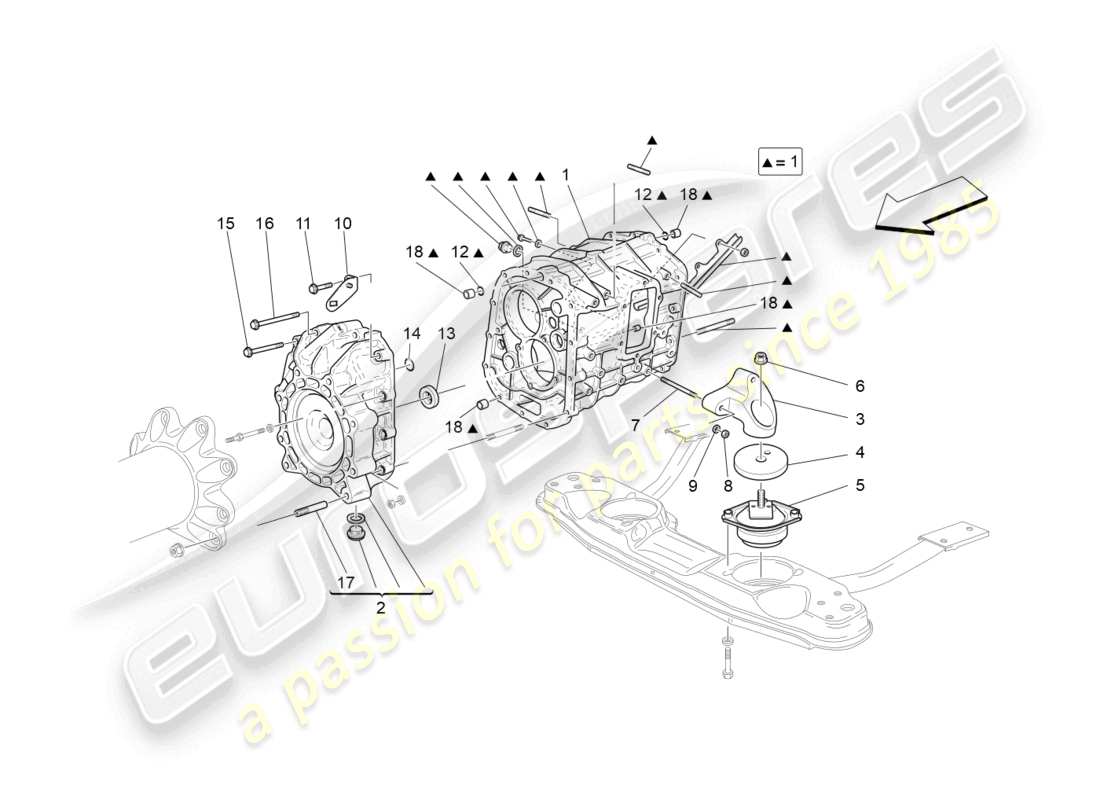

Maserati Granturismo MC Stradale (2011) GEARBOX HOUSINGS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 247302
GEARBOX ASSEMBLY
from £8,431.25
from £8,431.25
# 001
MPN: 247331
GEARBOX #(NOT INCLUDES INNER COMPONENTS)#
from £1,484.03
from £1,484.03
# 002
MPN: 206513
FRONT COVER ASSEMBLY
from £617.99
from £617.99
# 003
MPN: 192827
RH GEARBOX FIXING SUPPORT
from £69.28
from £69.28
# 003
MPN: 192828
LH GEARBOX FIXING SUPPORT
from £69.28
from £69.28
# 004
MPN: 191791
UPPER SUPPORT FOR PAD
from £2.91
from £2.91
# 005
MPN: 196865
FLEXIBLE PAD
from £122.68
from £122.68
# 006
MPN: 177018
NUT
from £0.74
from £0.74
# 007
MPN: 13517224
STUD #M 8X12-30#
from £2.13
from £2.13
# 007
MPN: 13543624
STUD #M 8X16-30#
from £0.53
from £0.53
# 007
MPN: 13543824
STUD #M 8X16-40#
from £1.78
from £1.78
# 008
MPN: 16100811
NUT
from £1.14
from £1.14
# 009
MPN: 12601374
WASHER [D. 8,40-15X 0,8]
from £0.53
from £0.53
# 010
MPN: 188004
CONNECTOR SUPPORT BRACKET
from £11.14
from £11.14
# 011
MPN: 16287521
SCREW
from £0.75
from £0.75
# 012
MPN: 14456981
O.R. GASKET
from £0.56
from £0.56
# 013
MPN: 200976
SEAL RING
from £21.96
from £21.96
# 014
MPN: 14453581
O.R. GASKET
from £2.74
from £2.74
# 015
MPN: 16287734
SCREW
from £0.84
from £0.84
This part replaces part number 16287731 which we have in stock
# 016
MPN: 16288121
SCREW
from £2.63
from £2.63
# 017
MPN: 13449534
STUD #M 8X15#
from £11.14
from £11.14
# 017
MPN: 13546334
STUD #M 8X20#
from £0.63
from £0.63
# 018
MPN: 150957
CENTERING DOWEL
from £4.55
from £4.55
