maserati granturismo mc stradale (2012) silencers parts diagram

01.81.1 - silencers

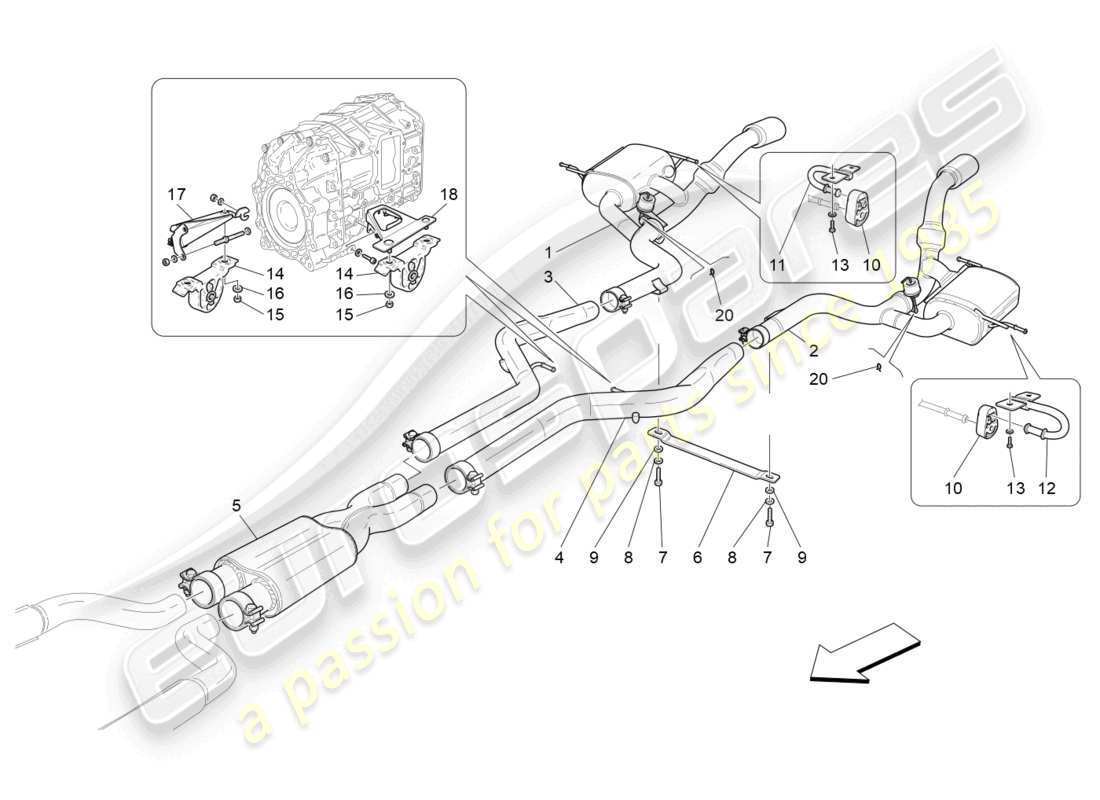

Maserati Granturismo MC Stradale (2012) SILENCERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 266186
                                    REAR RH MUFFLER
                                    Valid from assembly: 0 - 64133.
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 001
                                    MPN: 286220
                                    REAR RH MUFFLER
                                    Valid from assembly: 64134.
                                    from £1,331.00
                                    from £1,331.00
                                    This part replaces part number 266186 - and 1 more. Click to view details
                                    REAR RIGHT SILENCER Genuine Maserati Part - New In stock
                                    REAR RIGHT SILENCER Genuine Maserati Part - Used In stock
                                    # 001
                                    MPN: 980145422
                                    RH/LH EXHAUST SILENCER KIT #OPEN PHD TICKET PRIOR TO ORDERING CODE#
                                    Valid from assembly: 0 - 64133.
                                    from £4,229.64
                                    from £4,229.64
                                    SILENCER KIT Genuine Maserati Part - New (to order)
                                    # 002
                                    MPN: 266187
                                    REAR LH MUFFLER
                                    Valid from assembly: 0 - 64133.
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 002
                                    MPN: 286221
                                    REAR LH MUFFLER
                                    Valid from assembly: 64134.
                                    from £1,331.00
                                    from £1,331.00
                                    This part replaces part number 266187 - and 1 more. Click to view details
                                    LEFT RIGHT SILENCER Genuine Maserati Part - New In stock
                                    LEFT RIGHT SILENCER Genuine Maserati Part - Used In stock
                                    # 002
                                    MPN: 980145422
                                    RH/LH EXHAUST SILENCER KIT #OPEN PHD TICKET PRIOR TO ORDERING CODE#
                                    Valid from assembly: 0 - 64133.
                                    from £4,229.64
                                    from £4,229.64
                                    SILENCER KIT Genuine Maserati Part - New (to order)
                                    # 003
                                    MPN: 228236
                                    RH EXHAUST EXTENSION PIPE
                                    from £138.31
                                    from £138.31
                                    RH EXHAUST EXTENSION Genuine Maserati Part - New (to order)
                                    RH EXHAUST EXTENSION Genuine Maserati Part - Used In stock
                                    # 004
                                    MPN: 228237
                                    LH EXHAUST EXTENSION PIPE
                                    from £1,053.09
                                    from £1,053.09
                                    LH EXHAUST EXTENSION Genuine Maserati Part - New (to order)
                                    LH EXHAUST EXTENSION Genuine Maserati Part - Used In stock
                                    # 005
                                    MPN: 228235
                                    CENTRAL SILENCER
                                    from £2,537.52
                                    from £2,537.52
                                    CENTRAL MUFFLER Genuine Maserati Part - New (to order)
                                    # 006
                                    MPN: 272918
                                    SPACER
                                    from £19.75
                                    from £19.75
                                    SPACER ON REAR SILENCER Genuine Maserati Part - New (to order)
                                    SPACER ON REAR SILENCER Genuine Maserati Part - Used In stock
                                    # 007
                                    MPN: 16043224
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    SCREW FOR RUBBER EXHAUST Genuine Maserati Part - New (to order)
                                    SCREW Genuine Ferrari Part - New In stock
                                    # 008
                                    MPN: 12601374
                                    WASHER [D. 8,40-15X 0,8]
                                    from £0.54
                                    from £0.54
                                    WASHER Genuine Maserati Part - New (to order)
                                    WASHER Genuine Ferrari Part - New In stock
                                    # 009
                                    MPN: 12638524
                                    WASHER
                                    from £0.54
                                    from £0.54
                                    WASHER FOR ABS/ASR HYDRAU Genuine Maserati Part - New (to order)
                                    WASHER Genuine Ferrari Part - New In stock
                                    D. 8.15 -15 X 1.5
                                    # 010
                                    MPN: 211577
                                    BUFFER FOR SUPPORT
                                    from £8.48
                                    from £8.48
                                    BUFFER FOR SUPPORT Genuine Maserati Part - New In stock
                                    BUFFER FOR SUPPORT Genuine Maserati Part - Used In stock
                                    # 011
                                    MPN: 230087
                                    BRACKET
                                    from £11.61
                                    from £11.61
                                    BRACKET Genuine Maserati Part - New (to order)
                                    BRACKET Genuine Maserati Part - Used In stock
                                    # 012
                                    MPN: 230395
                                    BRACKET
                                    from £11.61
                                    from £11.61
                                    BRACKET Genuine Maserati Part - New (to order)
                                    BRACKET Genuine Maserati Part - Used In stock
                                    # 013
                                    MPN: 16281921
                                    SCREW
                                    from £1.69
                                    from £1.69
                                    SCREW Genuine Maserati Part - New (to order)
                                    # 014
                                    MPN: 184814
                                    SUPPORT
                                    from £20.56
                                    from £20.56
                                    SUPPORT Genuine Maserati Part - New In stock
                                    SUPPORT Genuine Maserati Part - Used In stock
                                    # 015
                                    MPN: 14058519
                                    NUT
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 312051309 which we have in stock
                                    NUT. Genuine Maserati Part - New (to order)
                                    NUT Genuine Ferrari Part - New In stock
                                    # 016
                                    MPN: 14496524
                                    WASHER [D. 8.40-17 X1.6]
                                    from £0.53
                                    from £0.53
                                    WASHER Genuine Maserati Part - New In stock
                                    WASHER Genuine Ferrari Part - New In stock
                                    # 017
                                    MPN: 197677
                                    RH SUPPORT
                                    from £14.97
                                    from £14.97
                                    RH SUPPORT Genuine Maserati Part - New (to order)
                                    RH SUPPORT Genuine Maserati Part - Used In stock
                                    # 018
                                    MPN: 197676
                                    LH SUPPORT
                                    from £21.27
                                    from £21.27
                                    LH SUPPORT Genuine Maserati Part - New (to order)
                                    LH SUPPORT Genuine Maserati Part - Used In stock
                                    # 020
                                    MPN: 980145501
                                    SPLIT PIN
                                    from £72.32
                                    from £72.32
                                    PIN Genuine Maserati Part - New (to order)
