maserati granturismo mc stradale (2013) silencers parts diagram

01.81.1 - silencers

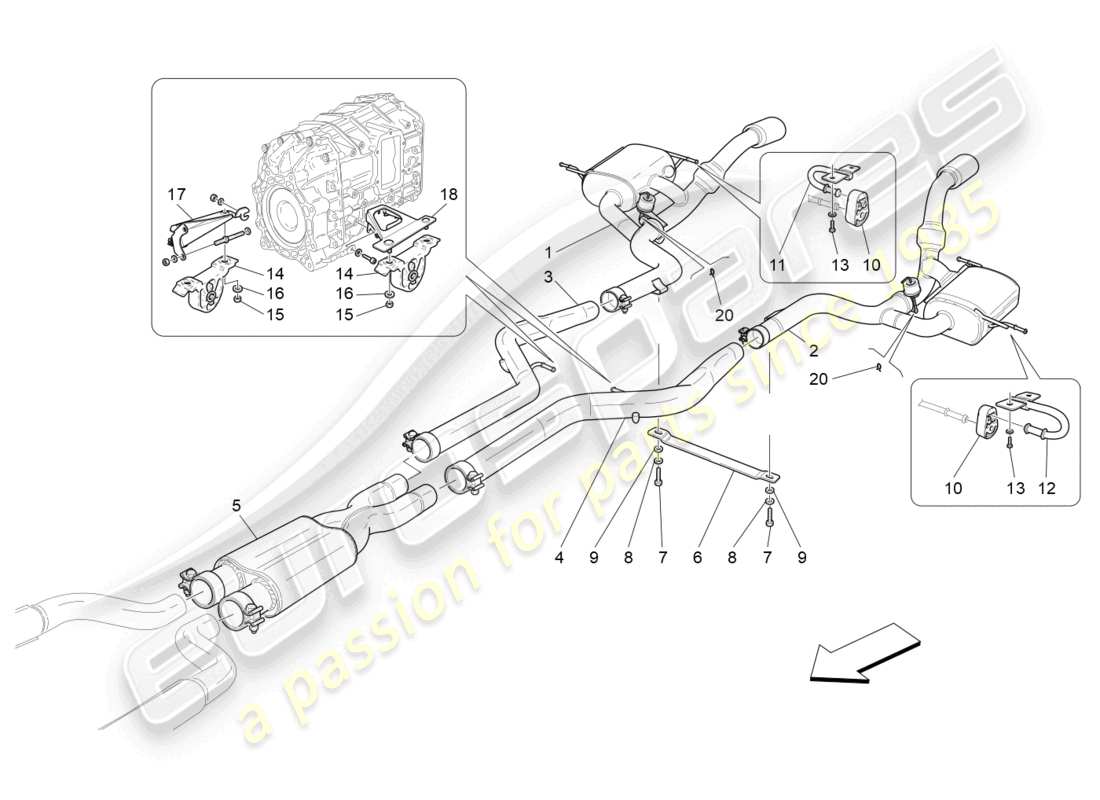

Maserati Granturismo MC Stradale (2013) SILENCERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 286220
                                    REAR RH MUFFLER
                                    Valid from assembly: 64134.
                                    from £1,331.00
                                    from £1,331.00
                                    This part replaces part number 266186 - and 1 more. Click to view details
                                    # 002
                                    MPN: 286221
                                    REAR LH MUFFLER
                                    Valid from assembly: 64134.
                                    from £1,331.00
                                    from £1,331.00
                                    This part replaces part number 266187 - and 1 more. Click to view details
                                    # 003
                                    MPN: 228236
                                    RH EXHAUST EXTENSION PIPE
                                    from £134.75
                                    from £134.75
                                    # 004
                                    MPN: 228237
                                    LH EXHAUST EXTENSION PIPE
                                    from £1,025.97
                                    from £1,025.97
                                    # 005
                                    MPN: 228235
                                    CENTRAL SILENCER
                                    from £561.59
                                    from £561.59
                                    # 006
                                    MPN: 272918
                                    SPACER
                                    from £19.24
                                    from £19.24
                                    # 007
                                    MPN: 16043224
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    # 008
                                    MPN: 12601374
                                    WASHER [D. 8,40-15X 0,8]
                                    from £0.54
                                    from £0.54
                                    # 009
                                    MPN: 12638524
                                    WASHER
                                    from £0.54
                                    from £0.54
                                    # 010
                                    MPN: 211577
                                    BUFFER FOR SUPPORT
                                    from £8.26
                                    from £8.26
                                    # 011
                                    MPN: 230087
                                    BRACKET
                                    from £11.31
                                    from £11.31
                                    # 012
                                    MPN: 230395
                                    BRACKET
                                    from £11.31
                                    from £11.31
                                    # 013
                                    MPN: 16281921
                                    SCREW
                                    from £1.64
                                    from £1.64
                                    # 014
                                    MPN: 184814
                                    SUPPORT
                                    from £20.04
                                    from £20.04
                                    # 015
                                    MPN: 14058519
                                    NUT
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 312051309 which we have in stock
                                    # 016
                                    MPN: 14496524
                                    WASHER [D. 8.40-17 X1.6]
                                    from £0.53
                                    from £0.53
                                    # 017
                                    MPN: 197677
                                    RH SUPPORT
                                    from £14.58
                                    from £14.58
                                    # 018
                                    MPN: 197676
                                    LH SUPPORT
                                    from £20.73
                                    from £20.73
                                    # 020
                                    MPN: 980145501
                                    SPLIT PIN
                                    from £70.46
                                    from £70.46
