03.10.1 - gearbox housings

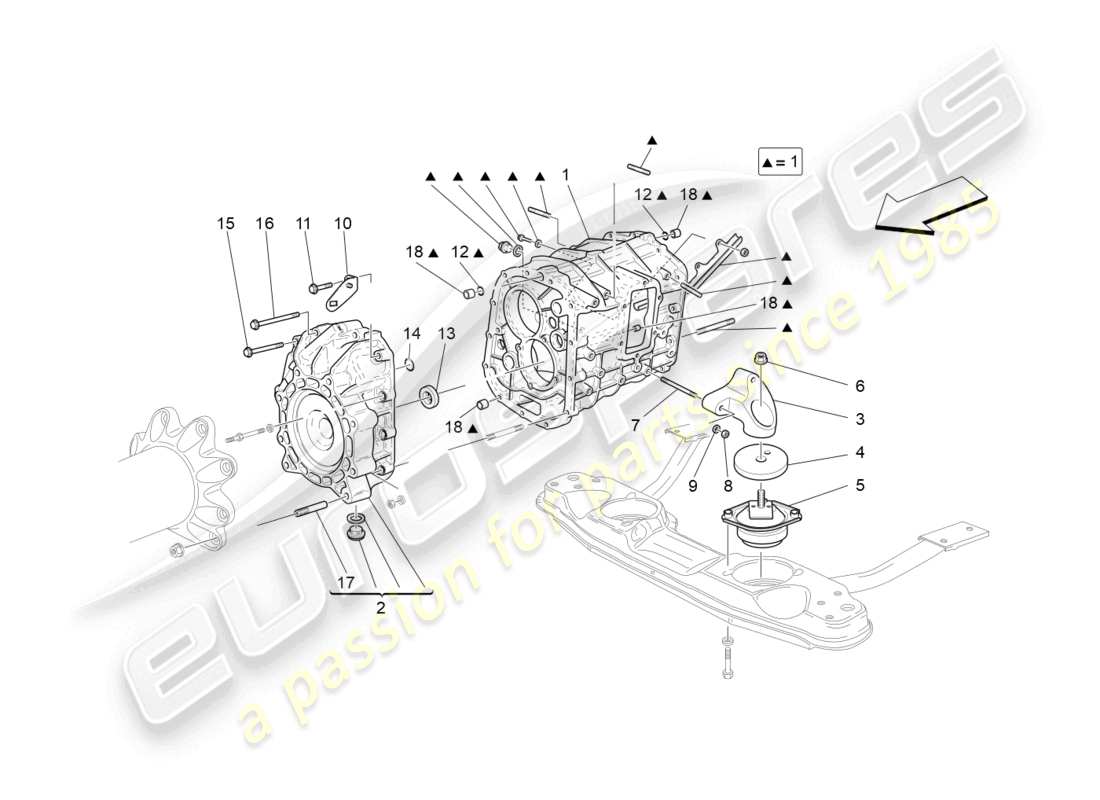

Maserati Granturismo MC Stradale (2013) GEARBOX HOUSINGS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 000
                                        MPN: 247302
                                        GEARBOX ASSEMBLY
                                        from £8,654.10
                                        from £8,654.10
                                        COMPLETE TRANSMISSION Genuine Maserati Part - New (to order)
                                        # 001
                                        MPN: 247331
                                        GEARBOX #(NOT INCLUDES INNER COMPONENTS)#
                                        from £1,523.26
                                        from £1,523.26
                                        COMPLETE GEARBOX HOUSING Genuine Maserati Part - New (to order)
                                        # 002
                                        MPN: 206513
                                        FRONT COVER ASSEMBLY
                                        from £634.34
                                        from £634.34
                                        COMPLETE FRONT COVER FOR SPARE PARTS Genuine Maserati Part - New In stock
                                        # 003
                                        MPN: 192827
                                        RH GEARBOX FIXING SUPPORT
                                        from £71.11
                                        from £71.11
                                        RH GEARBOX FIXING SUPPORT Genuine Maserati Part - New (to order)
                                        # 003
                                        MPN: 192828
                                        LH GEARBOX FIXING SUPPORT
                                        from £71.11
                                        from £71.11
                                        LH GEARBOX FIXING SUPPORT Genuine Maserati Part - New (to order)
                                        # 004
                                        MPN: 191791
                                        UPPER SUPPORT FOR PAD
                                        from £2.99
                                        from £2.99
                                        ENGINE BUSHINGS UPPER GUARD Genuine Maserati Part - New (to order)
                                        # 005
                                        MPN: 196865
                                        FLEXIBLE PAD
                                        from £125.92
                                        from £125.92
                                        FLEXIBLE PAD Genuine Maserati Part - New (to order)
                                        # 006
                                        MPN: 177018
                                        NUT
                                        from £0.69
                                        from £0.69
                                        NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
                                        NUT Genuine Ferrari Part - New In stock
                                        # 007
                                        MPN: 13517224
                                        STUD #M 8X12-30#
                                        from £2.13
                                        from £2.13
                                        STUD M8X12 STEM 30 Genuine Maserati Part - New (to order)
                                        STUD LONG Genuine Ferrari Part - New (to order)
                                        # 007
                                        MPN: 13543624
                                        STUD #M 8X16-30#
                                        from £0.71
                                        from £0.71
                                        STUD M8X16 STEM 30 Genuine Maserati Part - New (to order)
                                        STUD 8X16 Genuine Ferrari Part - New In stock
                                        # 007
                                        MPN: 13543824
                                        STUD #M 8X16-40#
                                        from £1.78
                                        from £1.78
                                        STUD. Genuine Maserati Part - New (to order)
                                        STUD Genuine Ferrari Part - New (to order)
                                        M8 X 16
                                        # 008
                                        MPN: 16100811
                                        NUT
                                        from £1.18
                                        from £1.18
                                        HEX.NUT M8X6.5 Genuine Maserati Part - New (to order)
                                        Genuine Ferrari Part (no longer available to order)
                                        # 009
                                        MPN: 12601374
                                        WASHER [D. 8,40-15X 0,8]
                                        from £0.53
                                        from £0.53
                                        WASHER Genuine Maserati Part - New (to order)
                                        WASHER Genuine Ferrari Part - New In stock
                                        # 010
                                        MPN: 188004
                                        CONNECTOR SUPPORT BRACKET
                                        from £11.43
                                        from £11.43
                                        CONNECTOR MOUNTING BRACKET Genuine Maserati Part - New (to order)
                                        # 011
                                        MPN: 16287521
                                        SCREW
                                        from £0.75
                                        from £0.75
                                        FLANGED HEX HEAD SCREW M8X40 Genuine Maserati Part - New In stock
                                        Genuine Ferrari Part (no longer available to order)
                                        # 012
                                        MPN: 14456981
                                        O.R. GASKET
                                        from £0.56
                                        from £0.56
                                        O-RING D. 10.78X2.5 Genuine Maserati Part - New (to order)
                                        GASKET Genuine Ferrari Part - New In stock
                                        # 013
                                        MPN: 200976
                                        SEAL RING
                                        from £22.54
                                        from £22.54
                                        ROTATING SEALING RING 28X38 Genuine Maserati Part - New (to order)
                                        # 014
                                        MPN: 14453581
                                        O.R. GASKET
                                        from £2.80
                                        from £2.80
                                        O-RING D. 18.77X1 Genuine Maserati Part - New In stock
                                        # 015
                                        MPN: 16287734
                                        SCREW
                                        from £0.84
                                        from £0.84
                                        This part replaces part number 16287731 which we have in stock
                                        FLANGED HEX HEAD SCREW M8 * 50 Genuine Maserati Part - New (to order)
                                        SCREW Genuine Ferrari Part - New In stock
                                        # 016
                                        MPN: 16288121
                                        SCREW
                                        from £2.69
                                        from £2.69
                                        SCREW Genuine Maserati Part - New In stock
                                        # 017
                                        MPN: 13449534
                                        STUD #M 8X15#
                                        from £11.43
                                        from £11.43
                                        STUD M10X1.25X15 STEM Genuine Maserati Part - New (to order)
                                        # 017
                                        MPN: 13546334
                                        STUD #M 8X20#
                                        from £0.78
                                        from £0.78
                                        STUD M10X1.25X20 STEM Genuine Maserati Part - New In stock
                                        STUD Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 150957
                                        CENTERING DOWEL
                                        from £4.55
                                        from £4.55
                                        OIL DUCT CENTRING DOWEL Genuine Maserati Part - New (to order)
                                        BUSHING Genuine Ferrari Part - New (to order)
