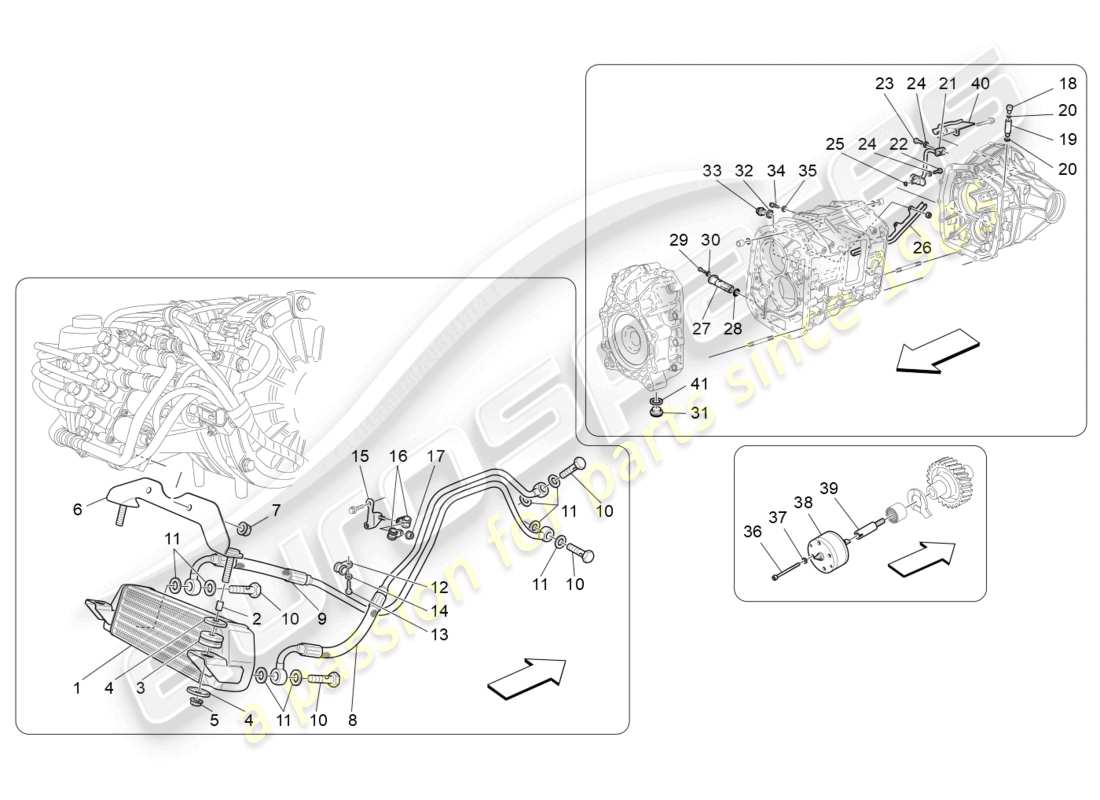

03.50.1 - lubrication and gearbox oil cooling
Maserati Granturismo MC Stradale (2013) LUBRICATION AND GEARBOX OIL COOLING Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 297289
GEARBOX OIL RADIATOR
from £275.70
from £275.70
This part replaces part number 243209 which we have in stock
# 002
MPN: 107980
SPACER
from £1.66
from £1.66
# 003
MPN: 184519
PAD
from £1.60
from £1.60
# 004
MPN: 12646724
WASHER
from £0.53
from £0.53
# 005
MPN: 14058511
NUT
from £0.53
from £0.53
# 006
MPN: 243210
BRACKET
from £48.63
from £48.63
# 007
MPN: 14058511
NUT
from £0.53
from £0.53
# 008
MPN: 243211
GEARBOX OIL DELIVERY TUBE
from £60.47
from £60.47
# 009
MPN: 243664
GEARBOX OIL RETURN TUBE
from £57.53
from £57.53
# 010
MPN: 10185111
UNION
from £1.19
from £1.19
This part replaces part number 178719
# 010
MPN: 178719
UNION
from £3.25
from £3.25
# 011
MPN: 10280060
GASKET
from £0.48
from £0.48
# 012
MPN: 10441290
BRACKET WITH SHEATH
from £0.26
from £0.26
# 013
MPN: 14305024
SCREW
from £0.53
from £0.53
# 014
MPN: 12604274
WASHER
from £0.54
from £0.54
# 015
MPN: 199117
BRACKET
from £6.40
from £6.40
# 016
MPN: 10441290
BRACKET WITH SHEATH
from £0.26
from £0.26
# 017
MPN: 14058411
NUT [M6]
from £0.54
from £0.54
# 018
MPN: 13414691
OIL BREAHTER
from £5.98
from £5.98
# 019
MPN: 186900
VENT ADAPTER
from £54.04
from £54.04
# 020
MPN: 13415400
COPPER GASKET
from £0.71
from £0.71
# 021
MPN: 219954
LUBRICATION TUBE
from £104.22
from £104.22
# 022
MPN: 10902224
SCREW
from £0.53
from £0.53
# 023
MPN: 10979424
SCREW [TE M6X10]
from £0.53
from £0.53
# 024
MPN: 11194377
WASHER
from £0.71
from £0.71
# 025
MPN: 137192
O.R. GASKET
from £0.54
from £0.54
# 026
MPN: 185714
OIL TILE
from £10.62
from £10.62
# 027
MPN: 182416
OIL FILTER
from £66.90
from £66.90
# 028
MPN: 182119
O.R. GASKET
from £2.54
from £2.54
# 029
MPN: 10977624
SCREW
from £0.53
from £0.53
# 030
MPN: 11199277
WASHER
from £1.99
from £1.99
# 031
MPN: 183962
THREADED PLUG
from £15.44
from £15.44
This part replaces part number 4123120
# 032
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 10261830
# 033
MPN: 10305111
THREADED PLUG
from £3.65
from £3.65
# 034
MPN: 16286121
SCREW
from £0.53
from £0.53
# 035
MPN: 10297760
GASKET
from £0.53
from £0.53
# 036
MPN: 14303624
SCREW
from £0.47
from £0.47
# 037
MPN: 10571379
WASHER
from £0.53
from £0.53
# 038
MPN: 182279
COMPLETE OIL PUMP
from £353.29
from £353.29
# 039
MPN: 198622
PIN
from £56.36
from £56.36
# 040
MPN: 185713
OIL GALLERY
from £16.81
from £16.81
# 041
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 10261830
