maserati grecale modena (2023) lubrication system: pump and filter parts diagram

01.61.1 - lubrication system: pump and filter

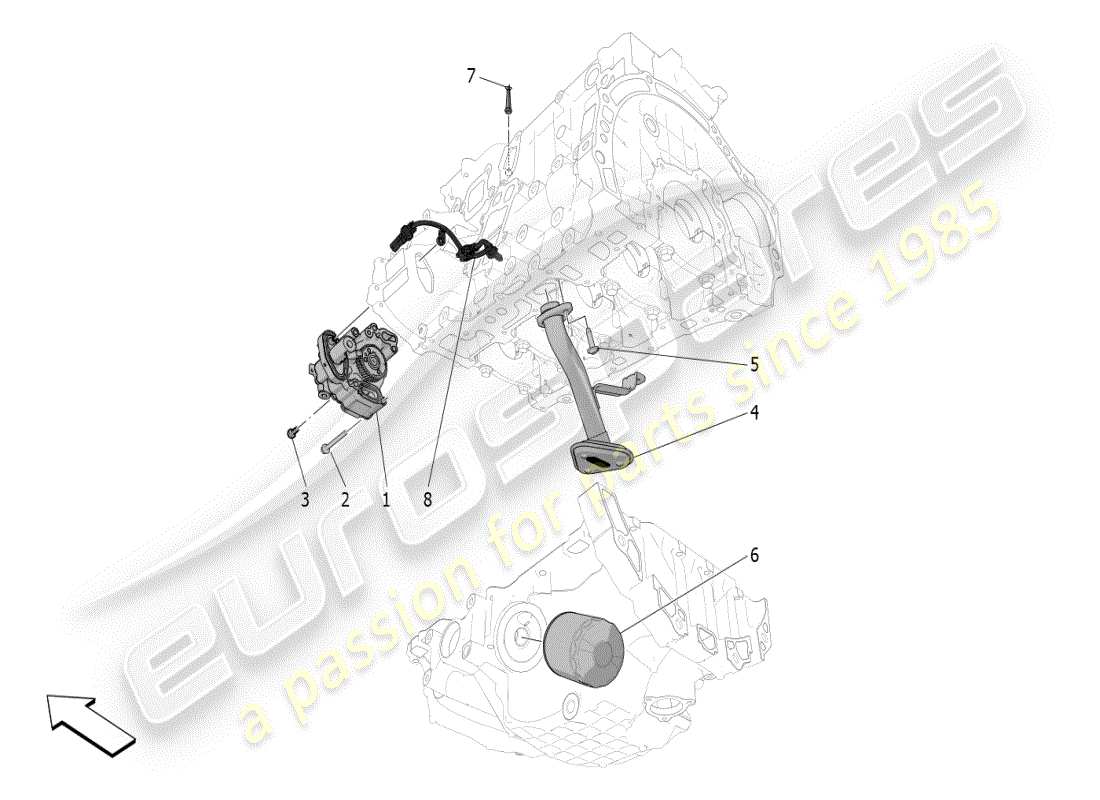

Maserati Grecale Modena (2023) LUBRICATION SYSTEM: PUMP AND FILTER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 675000838
                OIL PUMP ASSEMBLY
                from £465.10
                from £465.10
                oil pump Genuine Maserati Part - New (to order)
                # 002
                MPN: 675000839
                SCREW
                from £2.37
                from £2.37
                SCREW Genuine Maserati Part - New (to order)
                # 003
                MPN: 675000840
                SCREW
                from £1.50
                from £1.50
                SCREW Genuine Maserati Part - New (to order)
                # 004
                MPN: 675002057
                OIL SUCTION FAN
                from £29.97
                from £29.97
                OIL SUCTION FAN Genuine Maserati Part - New (to order)
                # 005
                MPN: 675000924
                SCREW
                from £1.59
                from £1.59
                SCREW Genuine Maserati Part - New (to order)
                # 006
                MPN: 675000928

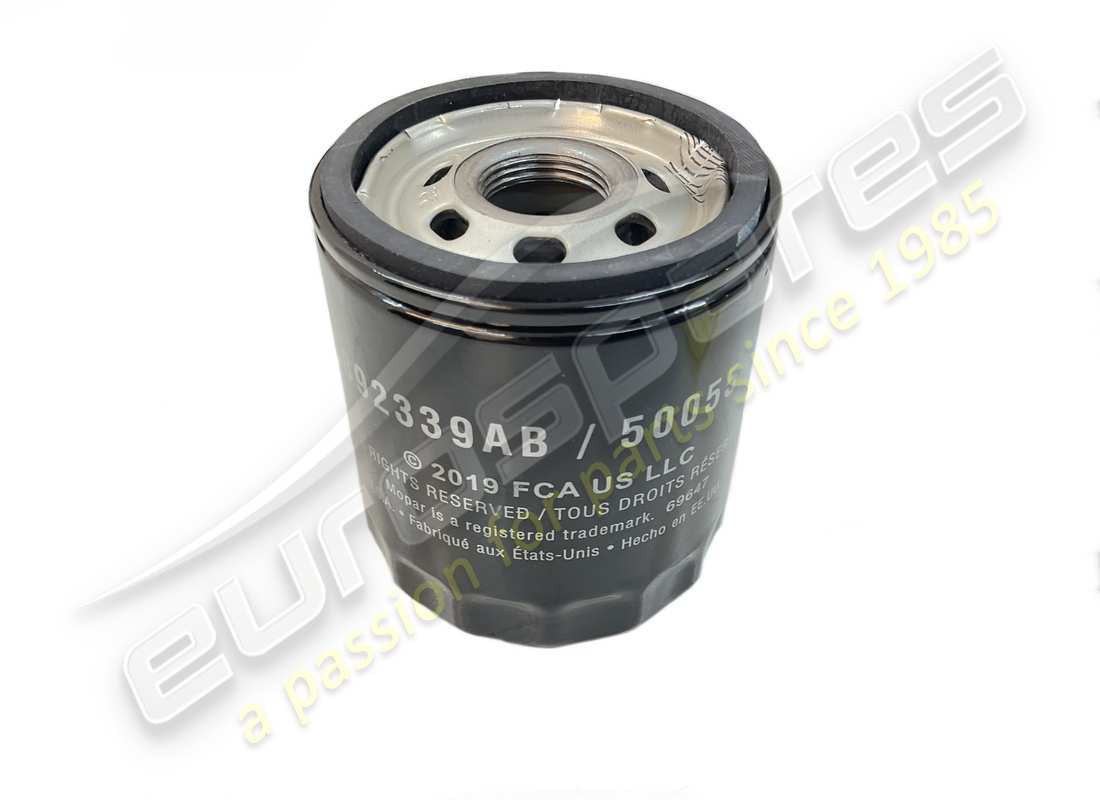

                COMPLETE OIL FILTER
                Valid from engine: 0 - 1815481.
                from £19.16
                from £19.16
                CS ENGINE OIL FILTER Genuine Maserati Part - New (to order)
                # 006
                MPN: 675003458
                COMPLETE OIL FILTER
                Valid from engine: 1815482.
                from £18.42
                from £18.42
                ENGINE OIL FILTER Genuine Maserati Part - New In stock
                # 007
                MPN: 675000876
                OIL FILTER
                from £3.72
                from £3.72
                CRANKCASE OIL DUCT FILTER Genuine Maserati Part - New (to order)
                # 008
                MPN: 675000931
                OIL PRESSURE SENSOR CABLE
                from £12.87
                from £12.87
                OIL PRESSURE SENSOR WIRING Genuine Maserati Part - New (to order)
