maserati grecale modena (2023) a/c unit: engine compartment devices parts diagram

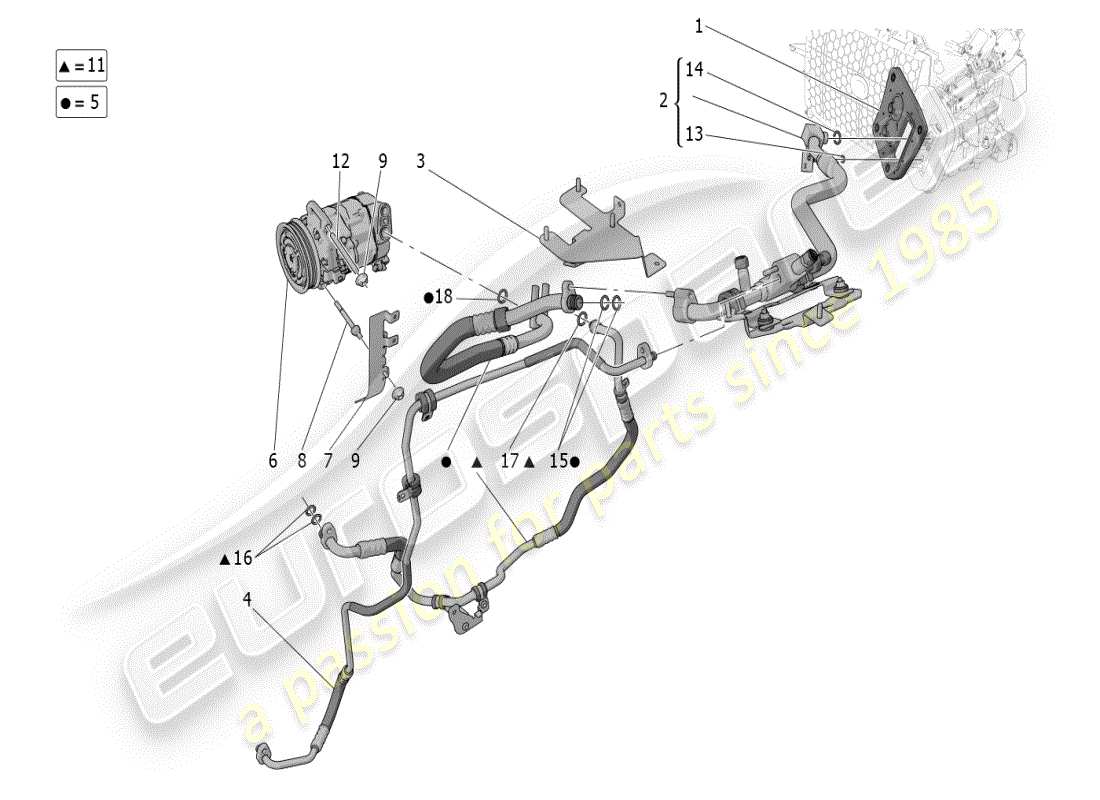

08.40.1 - a/c unit: engine compartment devices

Maserati Grecale Modena (2023) A/C UNIT: ENGINE COMPARTMENT DEVICES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 675001734

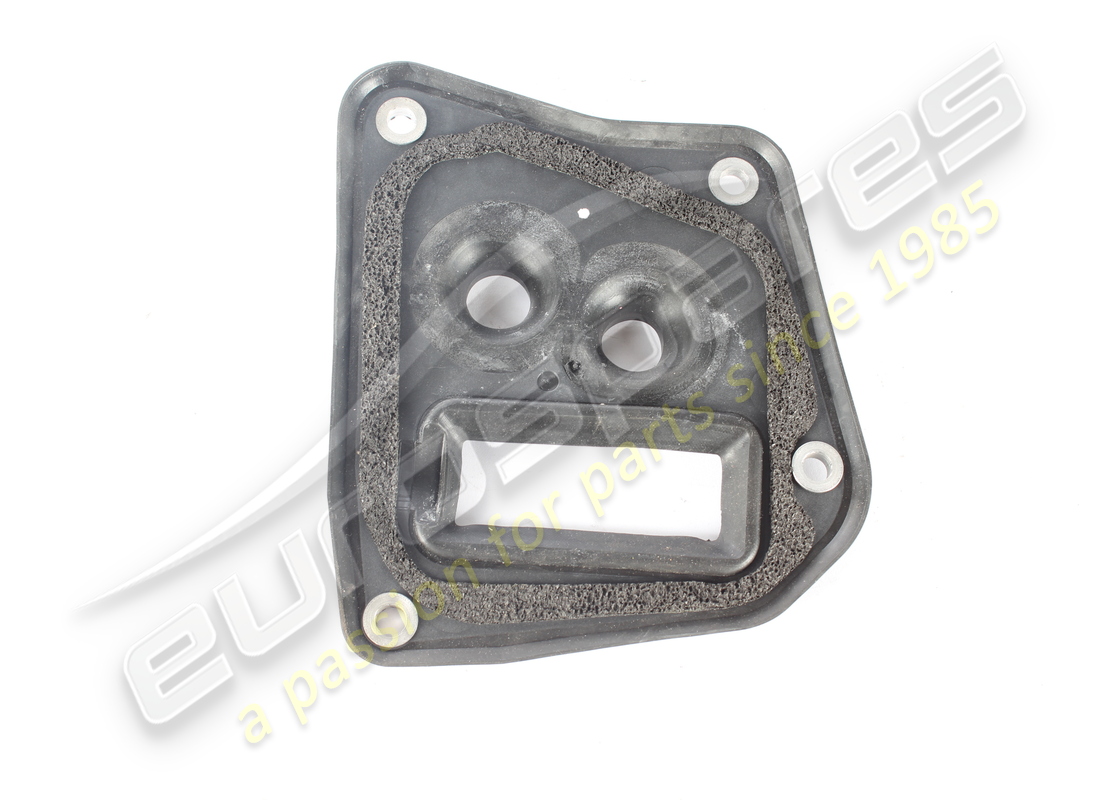

                                GASKET
                                from £4.70
                                from £4.70
                                A/C GASKET Genuine Maserati Part - New (to order)
                                A/C GASKET Genuine Maserati Part - Used In stock
                                # 002
                                MPN: 670176384

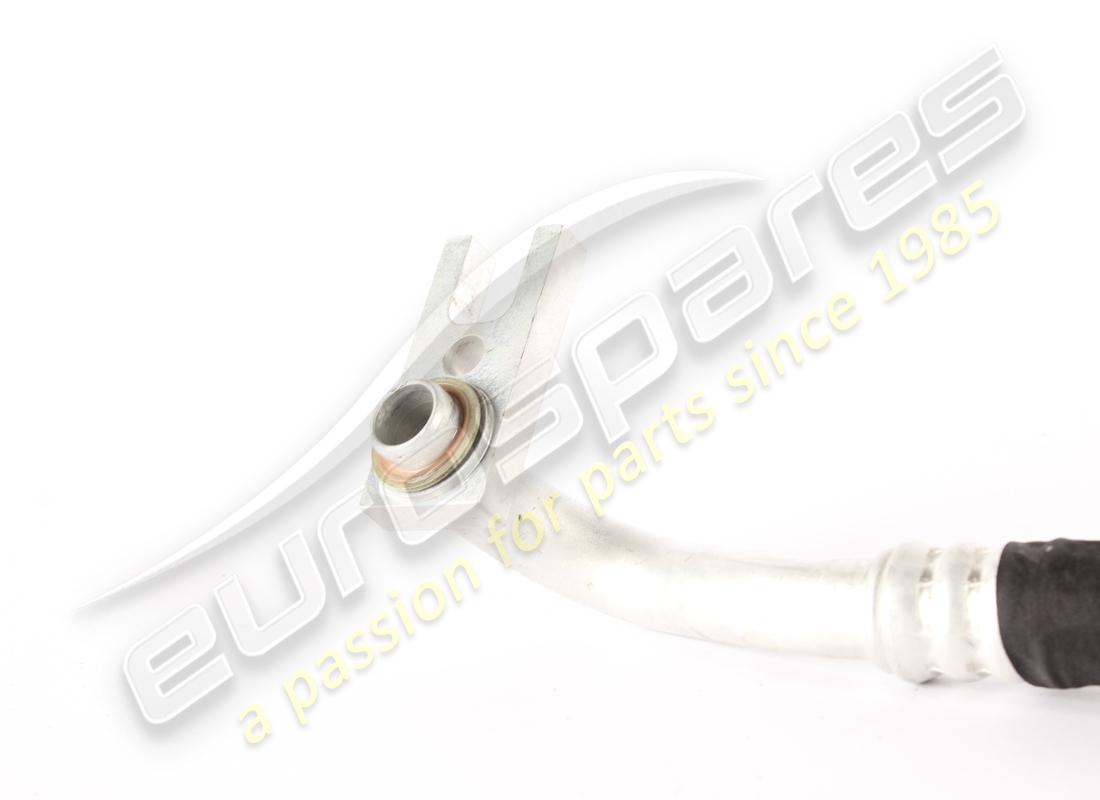

                                PIPE BETWEEN EVAPOURATOR AND UNION
                                Suitable for: UK
                                from £63.29
                                from £63.29
                                RHD EVAP-UNION PIPE MHEV Genuine Maserati Part - New (to order)
                                RHD EVAP-UNION PIPE MHEV Genuine Maserati Part - Used In stock
                                # 002
                                MPN: 670176386
                                PIPE BETWEEN EVAPOURATOR AND UNION
                                Suitable for: CHILE, ITALY, TAIWAN, USA
                                from £122.90
                                from £122.90
                                LHD EVAP-UNION PIPE MHEV Genuine Maserati Part - New (to order)
                                # 003
                                MPN: 670213656
                                BRACKET
                                from £8.71
                                from £8.71
                                FIXING BRACKET Genuine Maserati Part - New (to order)
                                # 004
                                MPN: 670178585
                                PIPE BETWEEN CONDENSER AND JUNCTION
                                Suitable for: CHILE, ITALY, TAIWAN, USA
                                from £68.12
                                from £68.12
                                LHD CONDENSER-EVAP PIPE MHEV Genuine Maserati Part - New (to order)
                                # 004
                                MPN: 670178586
                                PIPE BETWEEN CONDENSER AND JUNCTION
                                Suitable for: UK
                                from £68.12
                                from £68.12
                                RHD CONDENSER-EVAP PIPE MHEV Genuine Maserati Part - New (to order)
                                # 005
                                MPN: 670156436
                                PIPE A.C. - COMPRESSOR
                                from £35.72
                                from £35.72
                                PIPE UNION-COMPRESSOR Genuine Maserati Part - New (to order)
                                PIPE UNION-COMPRESSOR Genuine Maserati Part - Used In stock
                                # 006
                                MPN: 675001009

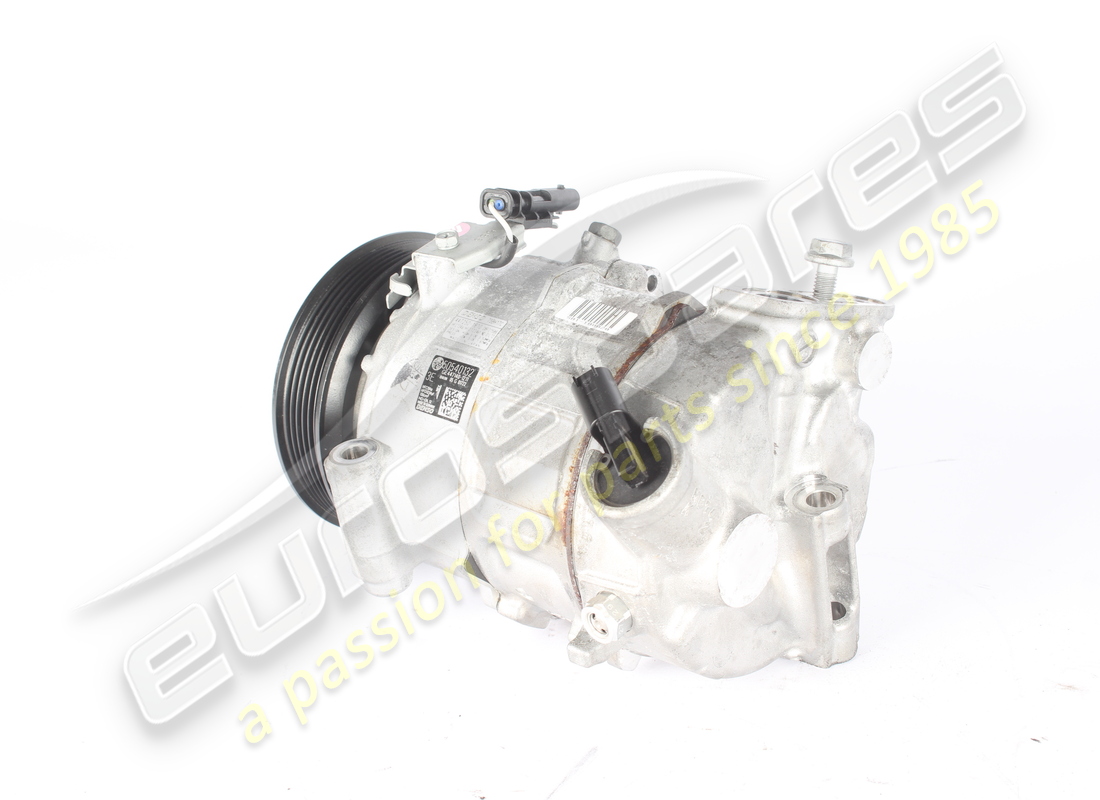

                                A.C. COMPRESSOR
                                from £469.82
                                from £469.82
                                AIR CONDITIONING COMPRESSOR Genuine Maserati Part - New (to order)
                                AIR CONDITIONING COMPRESSOR Genuine Maserati Part - Used In stock
                                # 007
                                MPN: 675002406
                                TIMING BELT GUARD
                                from £9.70
                                from £9.70
                                TIMING BELT COVER Genuine Maserati Part - New (to order)
                                # 008
                                MPN: 675001019
                                SCREW
                                from £1.83
                                from £1.83
                                SCREW Genuine Maserati Part - New (to order)
                                # 009
                                MPN: 675001090
                                NUT
                                from £0.78
                                from £0.78
                                NUT Genuine Maserati Part - New (to order)
                                # 011
                                MPN: 670156437
                                PIPE A.C. - COMPRESSOR
                                from £78.22
                                from £78.22
                                PIPE A/C - COMPRESSOR Genuine Maserati Part - New (to order)
                                # 012
                                MPN: 675000902
                                STUD
                                from £2.05
                                from £2.05
                                THREADED STUD Genuine Maserati Part - New (to order)
                                # 013
                                MPN: 675000119
                                O.R. GASKET [6,8X1,87]
                                from £1.69
                                from £1.69
                                O-RING 6,8X1,87 Genuine Maserati Part - New In stock
                                # 014
                                MPN: 675000306
                                O.R. GASKET [13,6X2,43]
                                from £1.22
                                from £1.22
                                O-RING 13,6X2,43 Genuine Maserati Part - New (to order)
                                # 015
                                MPN: 675000306
                                O.R. GASKET [13,6X2,43]
                                from £1.22
                                from £1.22
                                O-RING 13,6X2,43 Genuine Maserati Part - New (to order)
                                # 016
                                MPN: 675001987
                                O.R. GASKET
                                from £6.72
                                from £6.72
                                O RING Genuine Maserati Part - New (to order)
                                # 017
                                MPN: 675000122
                                1/2 SEAL
                                from £4.69
                                from £4.69
                                O-RING 1/2 - 1234YF Genuine Maserati Part - New (to order)
                                # 018
                                MPN: 675000123
                                3/4 SEAL
                                from £4.90
                                from £4.90
                                O-RING 3/4 - 1234YF Genuine Maserati Part - New (to order)
