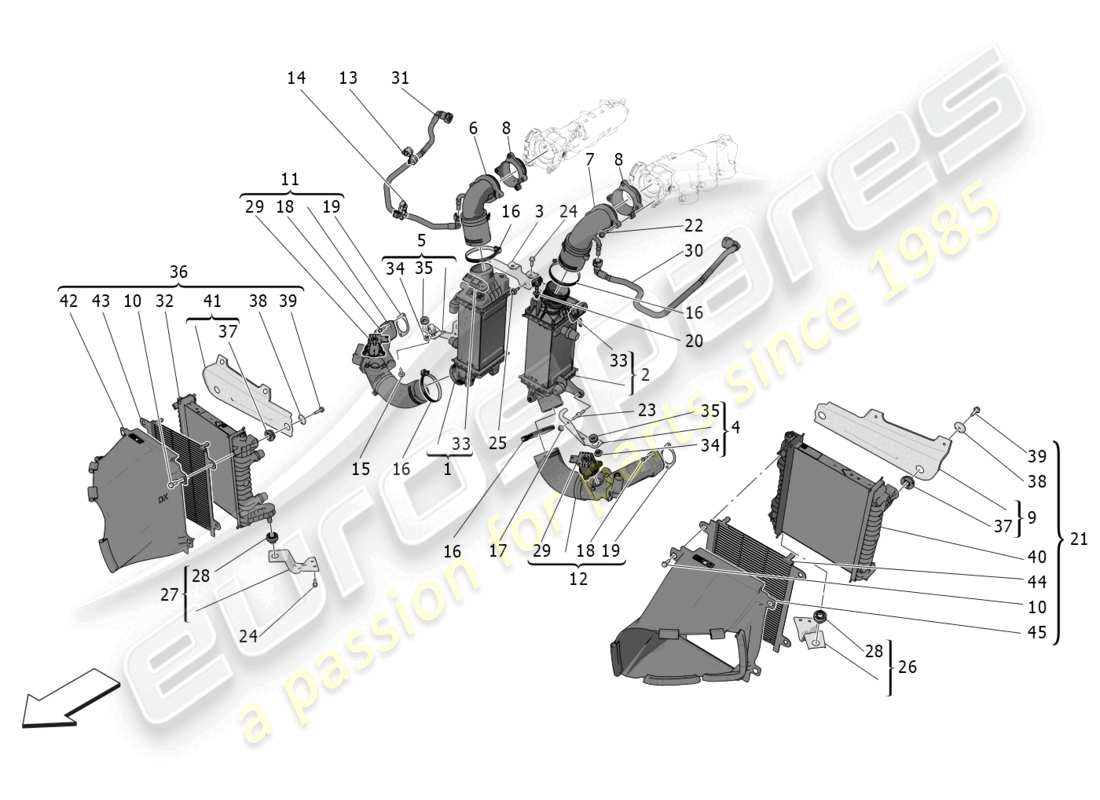

01.32.2 - intercooler system
Maserati Grecale Trofeo (2023) INTERCOOLER SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675001657
RH INTERCOOLER
from £308.22
from £308.22
# 002
MPN: 675001656
LH INTERCOOLER
from £308.22
from £308.22
# 003
MPN: 675001573
UPPER BRACKET
from £10.48
from £10.48
# 004
MPN: 675001736
LH BRACKET INTERCOOLER TUBE
from £12.87
from £12.87
# 005
MPN: 675001655
RH BRACKET INTERCOOLER TUBE
from £14.08
from £14.08
# 006
MPN: 675001582
RH SLEEVE INTERCOOLLER EXIT
from £157.01
from £157.01
# 007
MPN: 675001577
LH SLEEVE INTERCOOLLER EXIT
from £155.38
from £155.38
# 008
MPN: 675001658
UNION
from £49.74
from £49.74
# 009
MPN: 675001990
BRACKET
from £37.08
from £37.08
# 010
-
SCREW
# 010
MPN: 675001968
SCREW
Supersession
Supersession
# 011
MPN: 675001660
SLEEVE FROM TURBINE TO RH INTERCOOLER
from £272.22
from £272.22
# 012
MPN: 675001661
SLEEVE FROM TURBINE TO LH INTERCOOLER
from £272.22
from £272.22
# 013
MPN: 675001998
CLIP
from £1.48
from £1.48
# 014
MPN: 675001999
CLIP
from £3.20
from £3.20
# 015
MPN: 675001078
SCREW
from £1.30
from £1.30
# 016
MPN: 675000362
COLLAR [D.78]
Supersession
Supersession
This part replaces part number 675000318
# 017
MPN: 675001063
NUT
from £0.99
from £0.99
# 018
MPN: 675000242
SCREW [M6X25]
from £2.80
from £2.80
This part replaces part number 11568424
# 019
MPN: 675001961
GASKET
from £17.00
from £17.00
# 020
MPN: 675001761
CLIP
from £6.15
from £6.15
# 021
-
LH ADDITIONAL RADIATOR
# 021
MPN: 670156569
LH ADDITIONAL RADIATOR
from £249.28
from £249.28
# 022
MPN: 675001034
SCREW
from £1.39
from £1.39
# 023
MPN: 675001162
SCREW
from £1.56
from £1.56
# 024
MPN: 675001119
SCREW
from £0.59
from £0.59
# 025
MPN: 675001070
SCREW
from £1.20
from £1.20
# 026
MPN: 675001572
LH LOWER BRACKET ASSEMBLY
from £11.79
from £11.79
# 027
MPN: 675001571
RH BRACKET
from £9.18
from £9.18
# 028
MPN: 675000545
BUSHING
from £1.89
from £1.89
# 029
MPN: 675001051
MODULAR SOLENOID VALVE
from £49.36
from £49.36
# 030
MPN: 675002009
LH STEAM TUBE
from £41.57
from £41.57
# 031
MPN: 675002001
RH VAPOUR PIPE
from £27.74
from £27.74
# 032
MPN: 675001056
RH ENGINE RADIATOR
from £247.51
from £247.51
# 033
MPN: 675000014

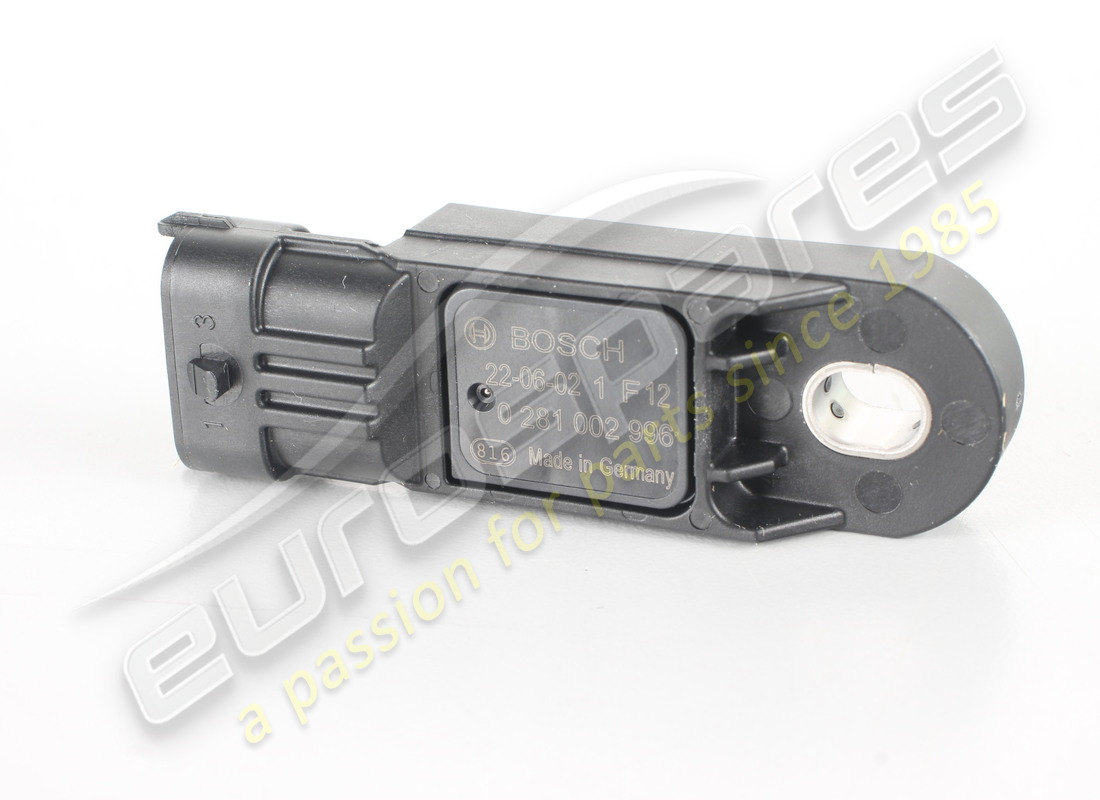

PRESSURE TRANSMITTER
from £39.20
from £39.20
# 034
MPN: 675000017
SPACER
from £5.41
from £5.41
# 035
MPN: 675000016
FLEXIBLE PAD
from £3.85
from £3.85
# 036
-
RH ADDITIONAL RADIATOR
# 036
MPN: 670178986
RH ADDITIONAL RADIATOR
# 037
MPN: 675000201
FLEXIBLE PAD
from £6.23
from £6.23
# 038
MPN: 675000409
WASHER
from £1.64
from £1.64
# 039
MPN: 675001048
SCREW
from £0.56
from £0.56
# 040
MPN: 675001057
LH ENGINE RADIATOR
from £221.46
from £221.46
# 041
MPN: 675001969
BRACKET
from £37.54
from £37.54
# 042
MPN: 670178987
RH SIDE AIR DUCT
from £45.45
from £45.45
# 043
MPN: 670161248
RH RADIATOR GRILLE
from £22.91
from £22.91
# 044
MPN: 670161264
LH RADIATOR GRILLE
from £22.91
from £22.91
# 045
MPN: 670178985
LH SIDE AIR DUCT
from £45.67
from £45.67
