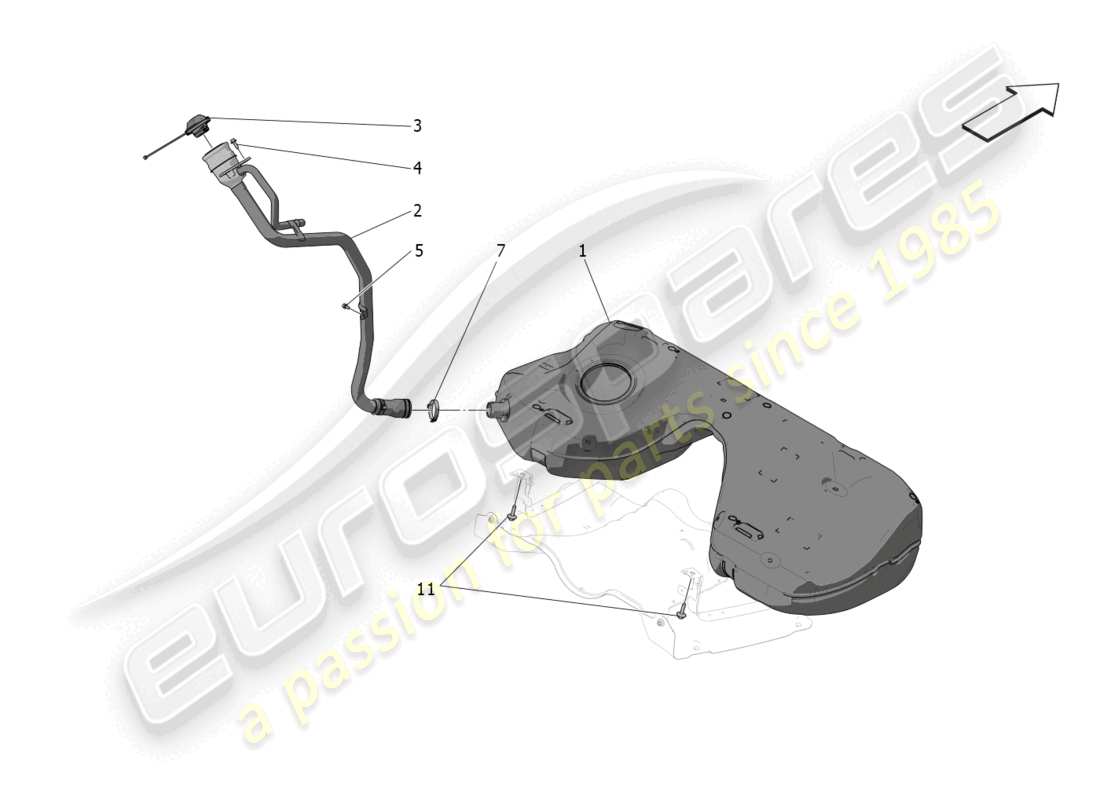

01.42.1 - FUEL TANK
Maserati Grecale Trofeo (2023) FUEL TANK Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
FUEL TANK ASSEMBLY
# 001
MPN: 675001696
FUEL TANK ASSEMBLY
from £506.68
from £506.68
# 002
MPN: 670156358
FUEL FILLER NECK ASSEMBLY
from £78.49
from £78.49
# 003
MPN: 675000663
TANK PLUG
from £39.91
from £39.91
# 004
MPN: 675001639
SCREW
from £1.03
from £1.03
# 005
MPN: 675001815
SCREW
from £0.90
from £0.90
# 007
-
SCREW COLLAR
# 007
MPN: 675002032
SCREW COLLAR
from £2.33
from £2.33
# 011
MPN: 675001800
SCREW
from £0.85
from £0.85
