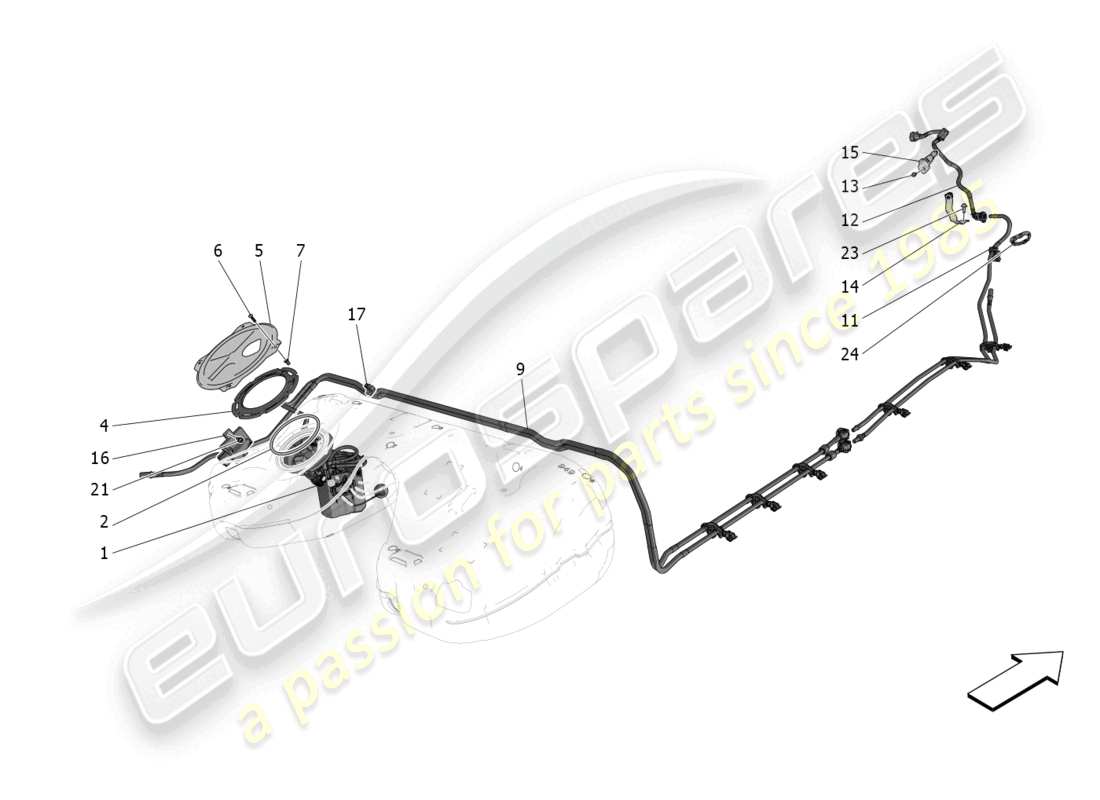

01.43.2 - fuel pumps and connection lines
Maserati Grecale Trofeo (2023) FUEL PUMPS AND CONNECTION LINES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675002220
fuel pump
from £107.84
from £107.84
# 002
MPN: 675001996
GASKET
from £51.87
from £51.87
# 004
MPN: 675001997
RING NUT
from £6.37
from £6.37
# 005
MPN: 675001492
INSPECTION COVER
from £8.18
from £8.18
# 006
MPN: 675000680
SCREW
from £0.79
from £0.79
# 007
MPN: 675001766
BLOCK
from £0.49
from £0.49
# 009
MPN: 670217133
UNDERFLOOR FUEL PIPES
from £64.42
from £64.42
# 011
MPN: 670156529
FRONT UNDERFLOOR FUEL PIPES
from £41.57
from £41.57
# 012
MPN: 675002218
FUEL DELIVERY TUBE
from £56.73
from £56.73
This part replaces part number 675001576
# 013
MPN: 675000999
SCREW
from £0.56
from £0.56
# 014
MPN: 675001759
BRACKET
from £10.32
from £10.32
# 015
MPN: 675001574
BRACKET
from £2.69
from £2.69
# 016
MPN: 675001876
FUEL PUMP ELECTRIC CONTROL UNIT
from £38.29
from £38.29
# 017
MPN: 675001835
CLIP
from £2.18
from £2.18
# 021
MPN: 675001815
SCREW
from £0.90
from £0.90
# 023
MPN: 675001539
SCREW
from £0.68
from £0.68
# 024
MPN: 675001747
GASKET
from £1.38
from £1.38
