Maserati Grecale Trofeo (2023) COOLING SYSTEM: NOURICE AND LINES Parts Diagram

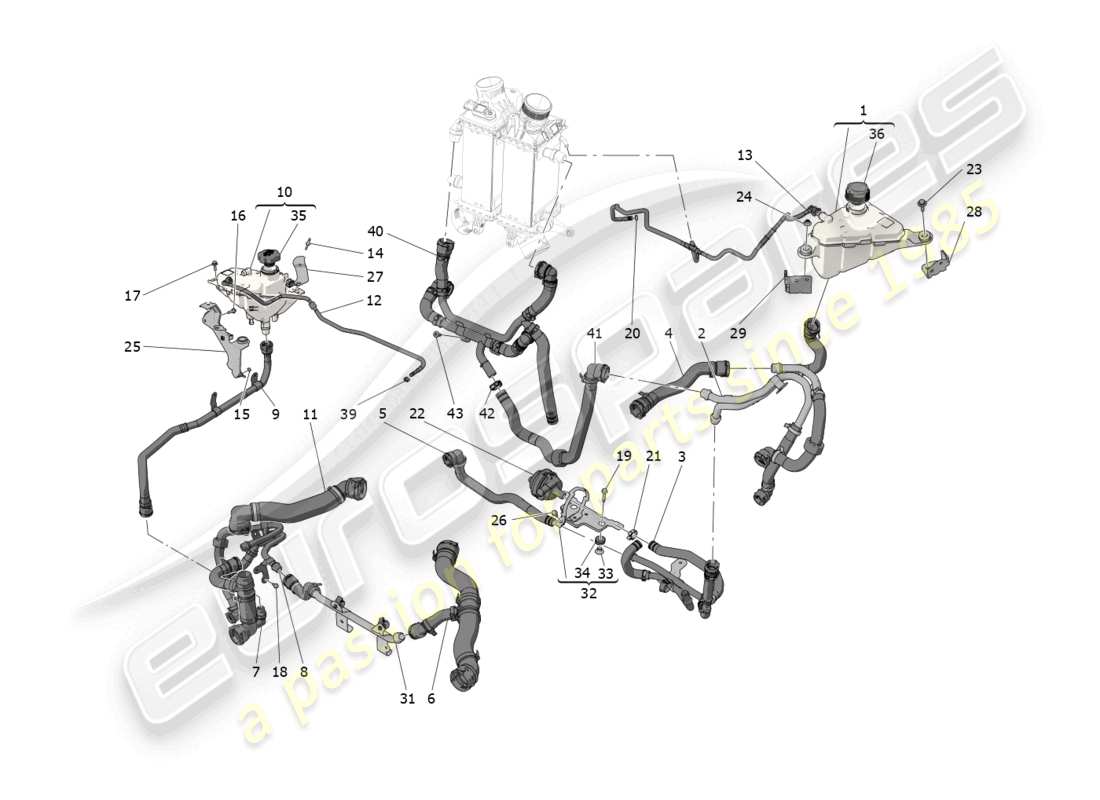

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Key
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 675001493
                                                                                  COOLANT RESERVOIR
                                                                                  from £46.53
                                                                                  from £46.53
                                                                                  SERBATOIO COMPLETE LIQUIDO REF Genuine Maserati Part - New (to order)
                                                                                  # 002
                                                                                  MPN: 675001659
                                                                                  HOSE ADDITIONAL RADIATOR COOLANT
                                                                                  from £117.62
                                                                                  from £117.62
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 003
                                                                                  MPN: 670156658
                                                                                  HOSE FROM RADIATOR TO WATER PUMP
                                                                                  from £63.06
                                                                                  from £63.06
                                                                                  PIPE Genuine Maserati Part - New (to order)
                                                                                  # 004
                                                                                  MPN: 675001654
                                                                                  SLEEVE
                                                                                  from £40.81
                                                                                  from £40.81
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 005
                                                                                  MPN: 675001578
                                                                                  RH SLEEVE
                                                                                  from £14.60
                                                                                  from £14.60
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 006
                                                                                  MPN: 675001653
                                                                                  WATER RETURN TUBE
                                                                                  from £45.29
                                                                                  from £45.29
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 007
                                                                                  MPN: 675001581
                                                                                  MAIN ELECTRIC PUMP INLET SLEEVE
                                                                                  from £38.73
                                                                                  from £38.73
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 008
                                                                                  MPN: 675001580
                                                                                  HOSE ADDITIONAL RADIATOR COOLANT
                                                                                  from £84.92
                                                                                  from £84.92
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 009
                                                                                  MPN: 675001579
                                                                                  EXPANSION TANK BREATHER PIPE
                                                                                  from £73.24
                                                                                  from £73.24
                                                                                  TUBO SFIATO SERBATOIO D' ESP Genuine Maserati Part - New (to order)
                                                                                  # 010
                                                                                  MPN: 675001614
                                                                                  COOLANT RESERVOIR
                                                                                  from £42.41
                                                                                  from £42.41
                                                                                  SERBATOIO COMPLETE LIQUIDO REF Genuine Maserati Part - New (to order)
                                                                                  # 011
                                                                                  MPN: 675001725
                                                                                  WATER OUTLET SLEEVE
                                                                                  from £21.63
                                                                                  from £21.63
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 012
                                                                                  MPN: 675001521
                                                                                  HOSE DEGASSING
                                                                                  from £23.05
                                                                                  from £23.05
                                                                                  PIPE Genuine Maserati Part - New (to order)
                                                                                  # 013
                                                                                  MPN: 670174776
                                                                                  EXPANSION TANK BREATHER PIPE
                                                                                  from £53.04
                                                                                  from £53.04
                                                                                  TUBO SFIATO SERBATOIO D' ESP Genuine Maserati Part - New (to order)
                                                                                  # 014
                                                                                  MPN: 675001793
                                                                                  RIVET
                                                                                  from £1.33
                                                                                  from £1.33
                                                                                  RIBACT Genuine Maserati Part - New (to order)
                                                                                  # 015
                                                                                  MPN: 675000794
                                                                                  NUT
                                                                                  from £1.00
                                                                                  from £1.00
                                                                                  NUT #(IMAGE NOT AVAILABLE)# Genuine Maserati Part - New (to order)
                                                                                  # 016
                                                                                  MPN: 675001048
                                                                                  SCREW
                                                                                  from £0.56
                                                                                  from £0.56
                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                  # 017
                                                                                  MPN: 675001629
                                                                                  SCREW
                                                                                  from £1.34
                                                                                  from £1.34
                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                  # 018
                                                                                  MPN: 675001117
                                                                                  SCREW
                                                                                  from £0.94
                                                                                  from £0.94
                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                  # 019
                                                                                  MPN: 675001127
                                                                                  SCREW
                                                                                  from £0.94
                                                                                  from £0.94
                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                  # 020
                                                                                  MPN: 675001922
                                                                                  COLLAR
                                                                                  from £0.91
                                                                                  from £0.91
                                                                                  RIBBON COLLAR Genuine Maserati Part - New (to order)
                                                                                  # 021
                                                                                  MPN: 675000658
                                                                                  COLLAR
                                                                                  from £5.81
                                                                                  from £5.81
                                                                                  This part replaces part number 675000349
                                                                                  COLLAR Genuine Maserati Part - New (to order)
                                                                                  # 022
                                                                                  MPN: 675001903
                                                                                  ELECTRIC WATER PUMP
                                                                                  from £188.93
                                                                                  from £188.93
                                                                                  PUMP Genuine Maserati Part - New (to order)
                                                                                  # 023
                                                                                  MPN: 675001708
                                                                                  SCREW
                                                                                  from £1.34
                                                                                  from £1.34
                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                  # 024
                                                                                  MPN: 675001063
                                                                                  NUT
                                                                                  from £1.00
                                                                                  from £1.00
                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                  # 025
                                                                                  MPN: 675001762
                                                                                  BRACKET
                                                                                  from £12.12
                                                                                  from £12.12
                                                                                  COOLANT TANK BRACKET Genuine Maserati Part - New (to order)
                                                                                  # 026
                                                                                  MPN: 675001792
                                                                                  SCREW
                                                                                  from £0.65
                                                                                  from £0.65
                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                  # 027
                                                                                  MPN: 675001563
                                                                                  BRACKET
                                                                                  from £4.52
                                                                                  from £4.52
                                                                                  BRACKET Genuine Maserati Part - New (to order)
                                                                                  # 028
                                                                                  MPN: 675001568
                                                                                  BRACKET
                                                                                  from £4.95
                                                                                  from £4.95
                                                                                  BRACKET Genuine Maserati Part - New (to order)
                                                                                  # 029
                                                                                  MPN: 675001565
                                                                                  BRACKET
                                                                                  from £5.56
                                                                                  from £5.56
                                                                                  BRACKET Genuine Maserati Part - New (to order)
                                                                                  # 031
                                                                                  MPN: 670161439
                                                                                  SLEEVE
                                                                                  from £197.94
                                                                                  from £197.94
                                                                                  TUBE Genuine Maserati Part - New (to order)
                                                                                  # 032
                                                                                  MPN: 670161490
                                                                                  BRACKET
                                                                                  from £24.90
                                                                                  from £24.90
                                                                                  PUMP BRACKET Genuine Maserati Part - New (to order)
                                                                                  # 033
                                                                                  MPN: 675000129
                                                                                  SPACER
                                                                                  from £22.91
                                                                                  from £22.91
                                                                                  SPACER Genuine Maserati Part - New (to order)
                                                                                  # 034
                                                                                  MPN: 675000054
                                                                                  FLEXIBLE PAD
                                                                                  from £9.30
                                                                                  from £9.30
                                                                                  SMALL BLACK Genuine Maserati Part - New (to order)
                                                                                  # 035
                                                                                  MPN: 675001143
                                                                                  TANK PLUG
                                                                                  from £12.12
                                                                                  from £12.12
                                                                                  TANK PLUG Genuine Maserati Part - New (to order)
                                                                                  # 036
                                                                                  MPN: 670003408
                                                                                  TANK PLUG
                                                                                  from £9.30
                                                                                  from £9.30
                                                                                  HEADER TANK CAP Genuine Maserati Part - New In stock
                                                                                  # 039
                                                                                  MPN: 675000757
                                                                                  COLLAR
                                                                                  from £1.00
                                                                                  from £1.00
                                                                                  COLLAR Genuine Maserati Part - New (to order)
                                                                                  # 040
                                                                                  MPN: 675001646
                                                                                  INTERCOOLER OUTLET SLEEVE
                                                                                  from £135.63
                                                                                  from £135.63
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 041
                                                                                  MPN: 675001667
                                                                                  INTERCOOLER INLET SLEEVE
                                                                                  from £15.47
                                                                                  from £15.47
                                                                                  SLEEVE Genuine Maserati Part - New (to order)
                                                                                  # 042
                                                                                  MPN: 675000658
                                                                                  COLLAR
                                                                                  from £5.81
                                                                                  from £5.81
                                                                                  This part replaces part number 675000349
                                                                                  COLLAR Genuine Maserati Part - New (to order)
                                                                                  # 043
                                                                                  MPN: 675001032
                                                                                  SCREW
                                                                                  from £0.82
                                                                                  from £0.82
                                                                                  SCREW Genuine Maserati Part - New (to order)
