001 - Cylinder Heads

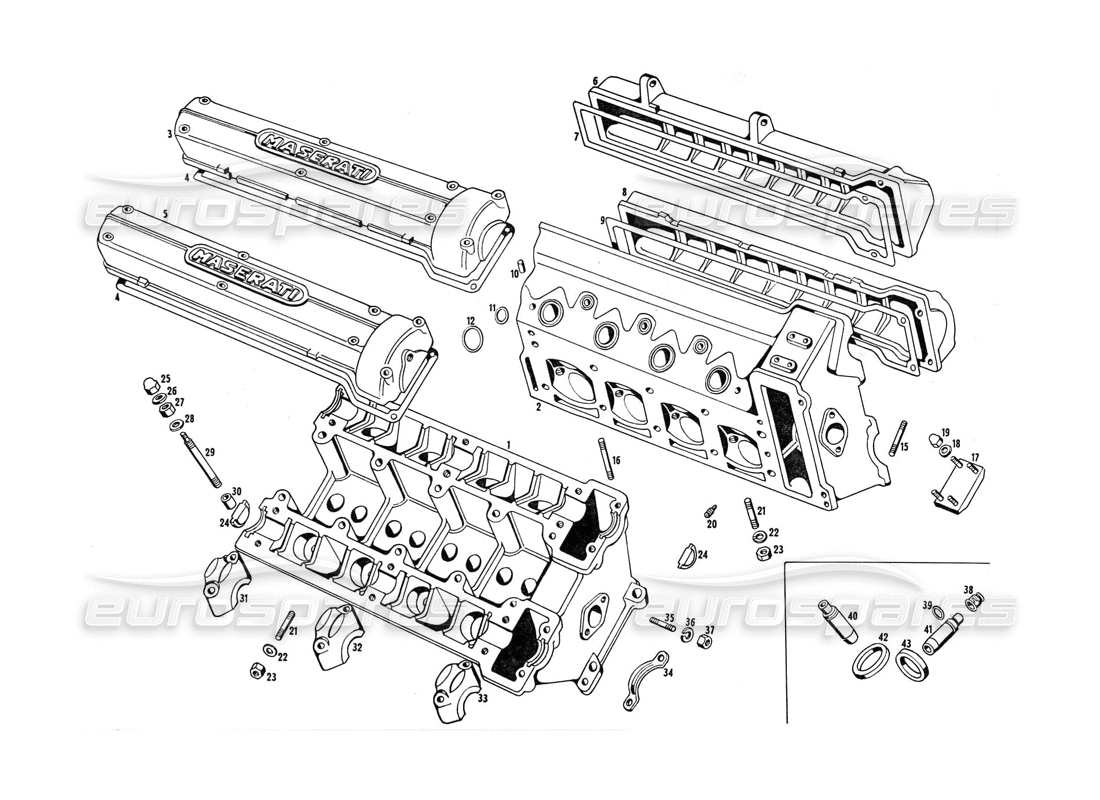

Maserati Indy 4.2 Cylinder heads Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 000
                                                                            MPN: MASENG049
                                                                            MASEARTI V8 ENGINE 4.9 CC
                                                                            # 001
                                                                            MPN: 107/3 MT 65795
                                                                            CYLINDER HEAD RH
                                                                            # 002
                                                                            MPN: 107/3 MT 65796
                                                                            CYLINDER HEAD LH
                                                                            # 003
                                                                            MPN: 107 3033 55143
                                                                            COVER
                                                                            # 004
                                                                            MPN: 107MD55159
                                                                            GASKET OR SEAL
                                                                            (for cam cover gasket set use part number: MCCG003)
                                                                            # 004
                                                                            MPN: MCCG003
                                                                            CAM COVER GASKET SET
                                                                            from £95.26
                                                                            from £95.26
                                                                            # 005
                                                                            MPN: 107 3032 55142
                                                                            COVER
                                                                            # 006
                                                                            MPN: 107/3 MD 67453
                                                                            COVER
                                                                            # 008
                                                                            MPN: 107.3032.55162
                                                                            COVER
                                                                            # 010
                                                                            MPN: G RN 61476
                                                                            GRANO Ø 10X20 PER COLLETTORI ASPIRAZIONE
                                                                            # 011
                                                                            MPN: Gom 65085
                                                                            Gommino Ø 34,52X41,58X3,53 tenuta acqua fra coll. e teste
                                                                            from £2.06
                                                                            from £2.06
                                                                            # 012
                                                                            MPN: Gom 66427
                                                                            RUBBER Ø 44,45X51,51X3,53 BETWEEN MANIFOLD AND HEADS
                                                                            # 013
                                                                            MPN: PN/35766
                                                                            THREADED STUD
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 014
                                                                            MPN: PN 35761
                                                                            THREADED STUD
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 015
                                                                            MPN: 107/2 MT 62604
                                                                            CHAIN ​​GUIDE ASSEMBLY FOR HEAD AND BASE
                                                                            Supersession
                                                                            Supersession
                                                                            # 017
                                                                            MPN: DST 46766
                                                                            NUT
                                                                            # 018
                                                                            MPN: 107 MT 59644
                                                                            OIL CALIBRATION GRIN ON THE HEADS
                                                                            # 019
                                                                            MPN: PN 32662
                                                                            THREADED STUD
                                                                            # 021
                                                                            MPN: 107 MD 55158
                                                                            RUBBER COVER ON THE CYLINDER HEAD
                                                                            from £22.22
                                                                            from £22.22
                                                                            # 022
                                                                            MPN: DST/48102
                                                                            NUT
                                                                            # 023
                                                                            MPN: GN 65244
                                                                            GASKET OR SEAL
                                                                            # 024
                                                                            MPN: DN/32634
                                                                            NUT 8X1.25X8
                                                                            # 025
                                                                            MPN: RNT47075
                                                                            WASHER
                                                                            This part replaces part number 47075
                                                                            # 027
                                                                            MPN: GRN 56859
                                                                            GRAIN 10X6X8 FOR CENTERING THE TIMING SHAFT CAPS
                                                                            Supersession
                                                                            Supersession
                                                                            # 028
                                                                            MPN: 103.3074.50698
                                                                            FRONT OUTER CAP FOR TIMING SHAFT
                                                                            # 029
                                                                            MPN: 103.3064.50697
                                                                            CAPPELLO AENTRALE PER ALBERI DISTRIBUZIONE
                                                                            # 030
                                                                            MPN: 103 MD 55182
                                                                            Rear external cap for distribution shafts
                                                                            # 031
                                                                            MPN: 107MT56871
                                                                            CAVALLOTTO PER SOLLEVAMENTO MOTORE
                                                                            # 032
                                                                            MPN: PN 49752
                                                                            THREADED STUD
                                                                            # 037
                                                                            MPN: 107 1032 54597
                                                                            GUIDA VALVOLA DI SCARICO
                                                                            from £23.94
                                                                            from £23.94
                                                                            # 038
                                                                            MPN: 107/3 Mt 68724
                                                                            Guida valvola di aspirazione
                                                                            # 039
                                                                            MPN: 107 1022 54013
                                                                            SEDE VALVOLA DI SCARICO
                                                                            # 040
                                                                            MPN: 107102054012
                                                                            SEDE VALVOLA DI ASPIRAZIONE
                                                                            # 041
                                                                            MPN: MT 55456
                                                                            OIL LEVEL TUBE SUPPORT COLUMN
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 042
                                                                            MPN: A6 GCM 3124 41187
                                                                            COLONNETTA SOSTEGNO OCCHIEILO PORTA FILL
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 043
                                                                            MPN: PN 32658
                                                                            THREADED STUD
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 044
                                                                            MPN: RAT/45679
                                                                            WASHER
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 045
                                                                            MPN: DNT 47047
                                                                            NUT
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 046
                                                                            MPN: TN 67205
                                                                            CAP 12X1,5X12 CLOSING HEAD HOLES
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            # 047
                                                                            MPN: GN 47207
                                                                            GASKET OR SEAL
                                                                            Details without numbers at the bottom of the illustrative table
                                                                            This part replaces part number 47207
